Read Before Operation

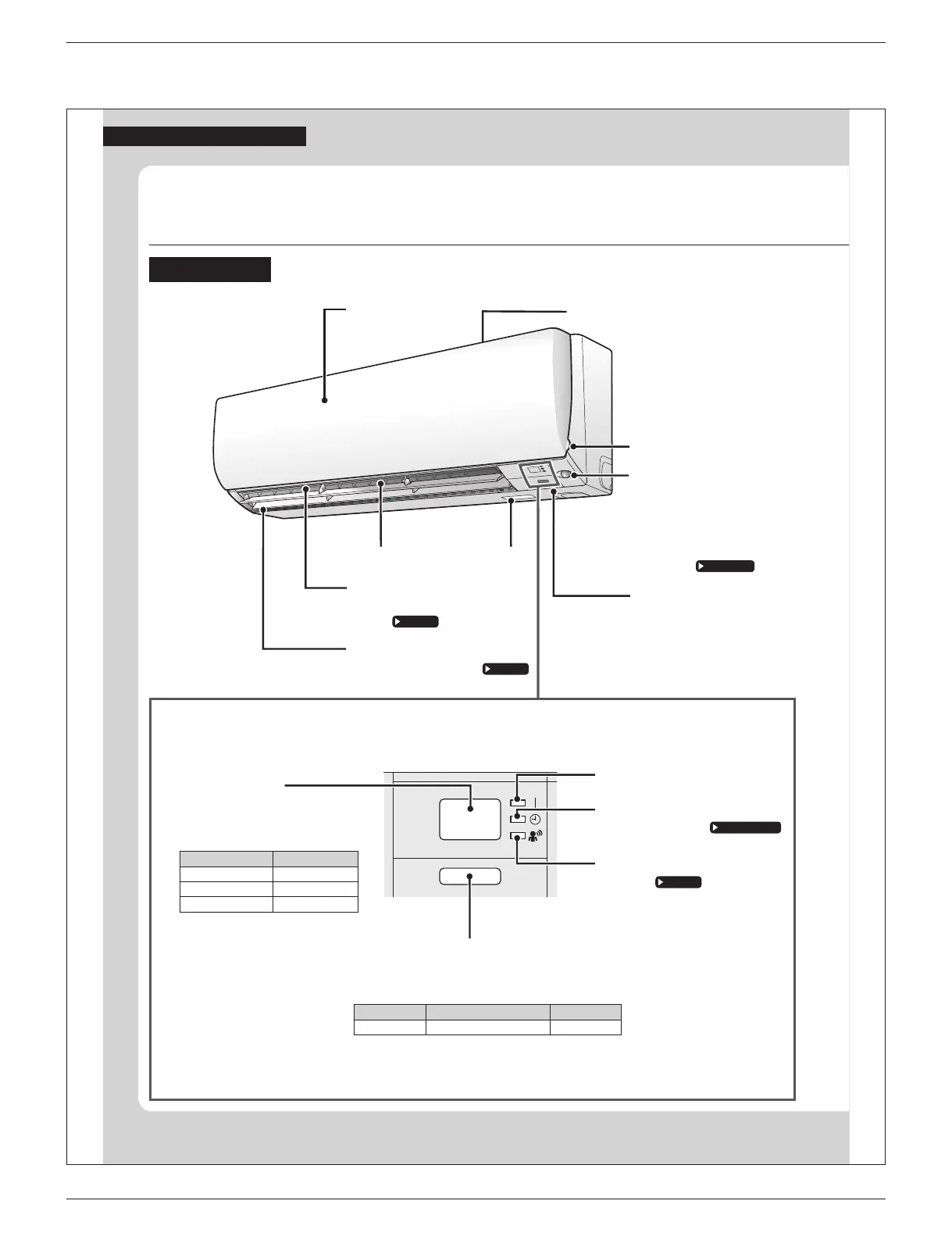

Names of Parts
Indoor Unit
Air outlet
Louvers (vertical blades)
• The louvers are inside of the air
outlet.
Page 14
Flaps (horizontal blades)
Page 14
Model name
Indoor temperature
sensor
• Detects the air temperature
around the unit.
Front panel
Panel tab
INTELLIGENT EYE
sensor
• Detects the movements of
people and automatically
switches between normal
operation and energy saving
operation.
Page 15,16
Display
OPERATION lamp (green)
TIMER lamp (orange)
Page 19,20,23
INTELLIGENT EYE lamp
(green)
Page 15
Signal receiver
• Receives signals from the remote
controller.
• When the unit receives a signal, you
will hear a beep sound.
Case Sound type
Operation start beep-beep
Setting changed beep
Operation stop long beep
Indoor unit ON/OFF switch
• Press this switch once to start operation.
Press once again to stop it.
• For the operation mode setting, refer to the following table.
Mode Temperature setting Airow rate
AUTO 77°F (25°C) AUTO
• This switch can be used when the remote controller is missing.
