10
Application Information

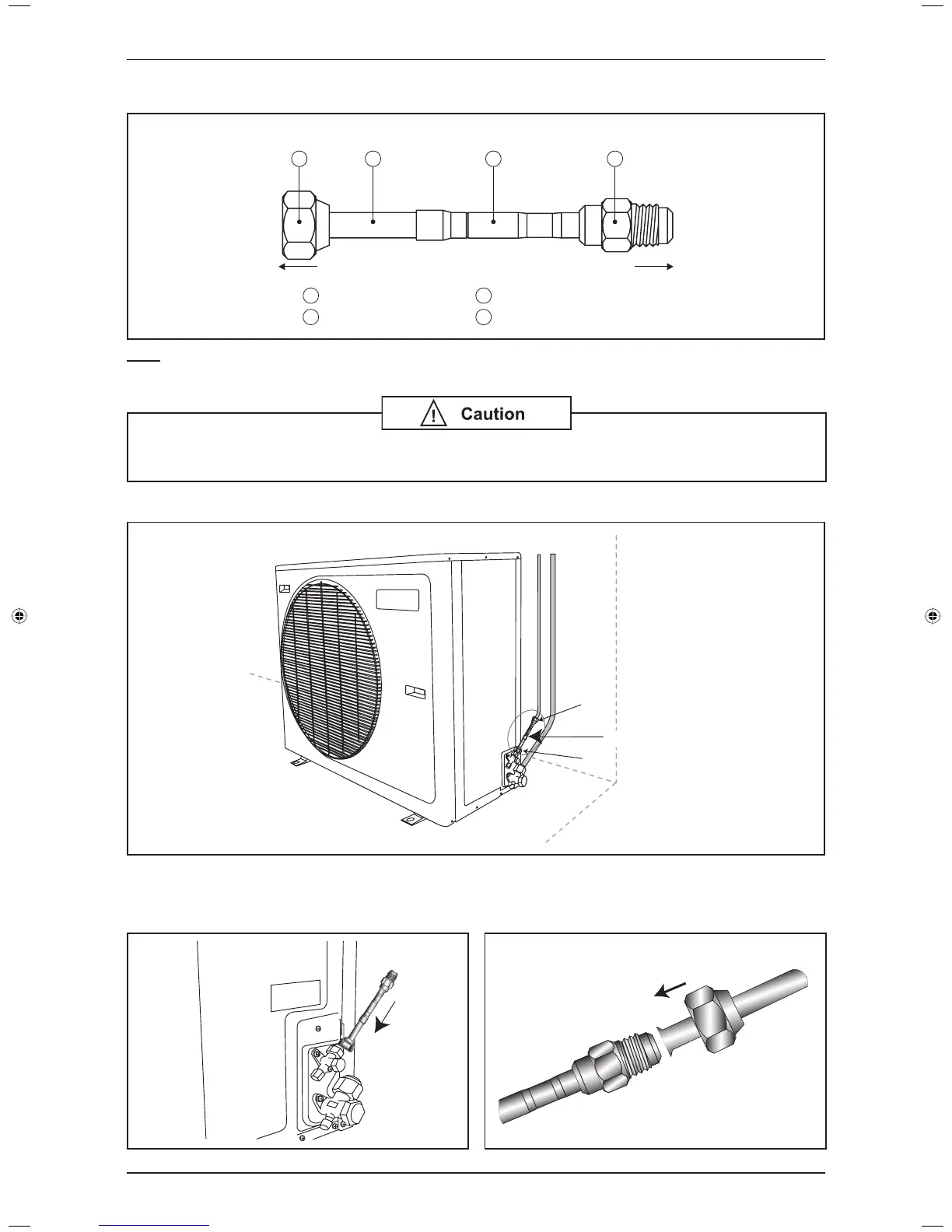

Installation of Ori ce Pipe
3 2 1
1
2
3
4
4
Orifice Pipe
Outdoor Unit
Indoor Unit
Orifice
Pipe, connecting
Flare nut 3/8" (Female)
Flare joint 3/8" (Male)
Note:
This installation is only for FT30F/R28C & FT30F/R30D
The ori ce pipe must be installed in the correct direction as shown above.
Improper direction may cause failure to the operating system.
A. Outdoor unit ori ce pipe installation (where installation space is wide enough)
Orifice Pipe
Step 2
Step 1
Steps:
1. Directly connect the “Female” nut of the ori ce
pipe to the liquid valve.
2. Flare the liquid pipe and connect it to the “Male”
joint of the ori ce pipe.
Orifice Pipe
Liquid Pipe
