Application Information

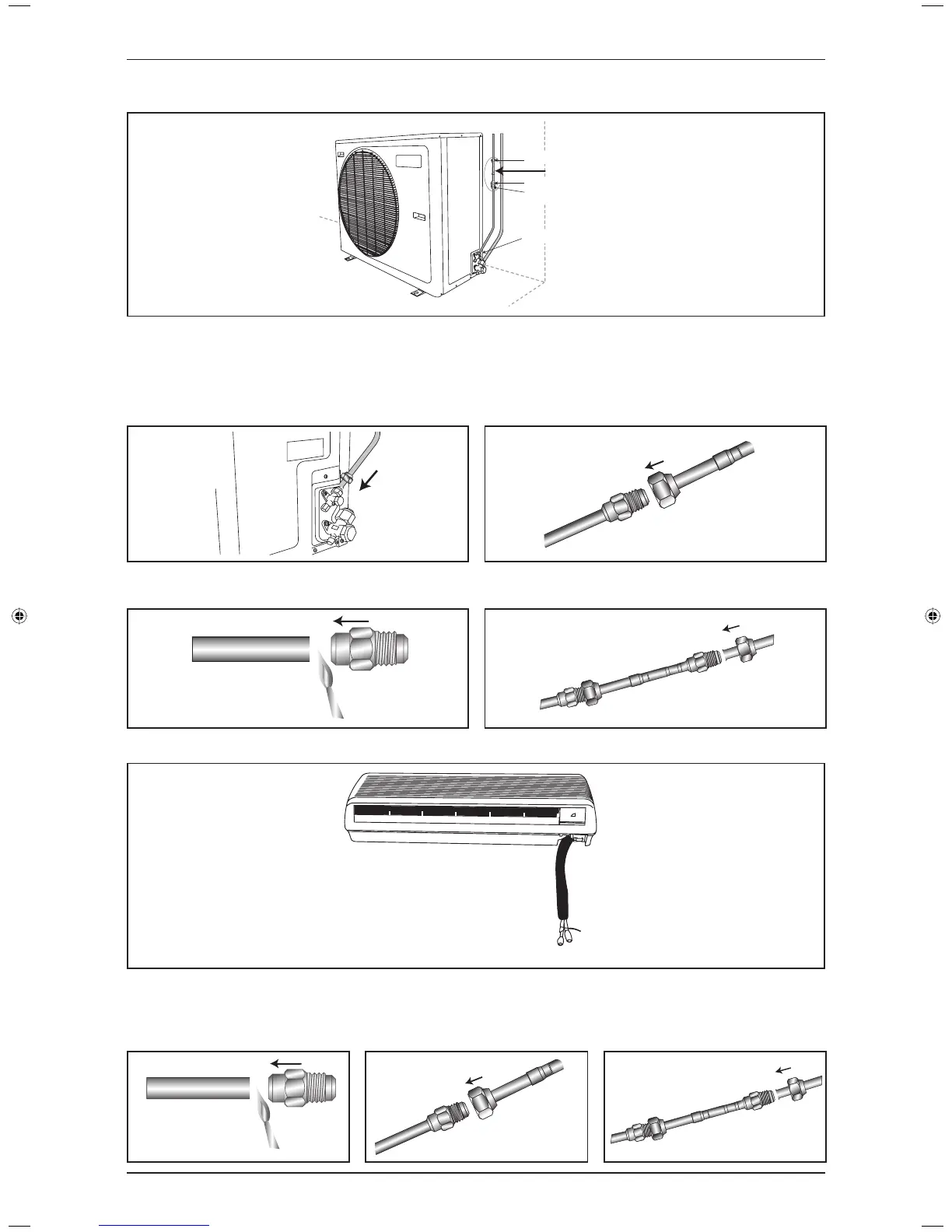

B. Outdoor unit orifi ce pipe installation (where installation space is limited)
Step 4
Step 3
Step 2
Step 1
Orifice Pipe
If the orifi ce pipe cannot be connected directly to the liquid valve due to space constraint, it can be connected
in between of the liquid pipe.
Steps:
1. Flare the liquid pipe and connect it to the liquid
valve.
2. Braze an additional “Male” joint to the liquid pipe.
Liquid Pipe
Brazer
3. Connect the “Female” nut of the Orifi ce pipe to
the“Male” joint.
Liquid Pipe
Orifice Pipe
4. Flare another liquid pipe and connect it to the
“Male” joint of the orifi ce pipe.
Liquid Pipe
Orifice Pipe
C. Indoor unit orifi ce pipe installation
Indoor Unit
Orifice Pipe
Steps:
1. Braze an additional “Male” joint
to the liquid pipe.
Liquid Pipe
Brazer
2. Connect the “Female” nut of the
Orifi ce pipe to the“Male” joint.
Liquid Pipe
Orifice Pipe
3. Flare another liquid pipe and
connect it to the “Male” joint of
the orifi ce pipe.
Liquid Pipe
Orifice Pipe
