Daikin FTYN35GXV1B User Manual

SiBE01-829 Indoor Unit
Removal Procedure 67

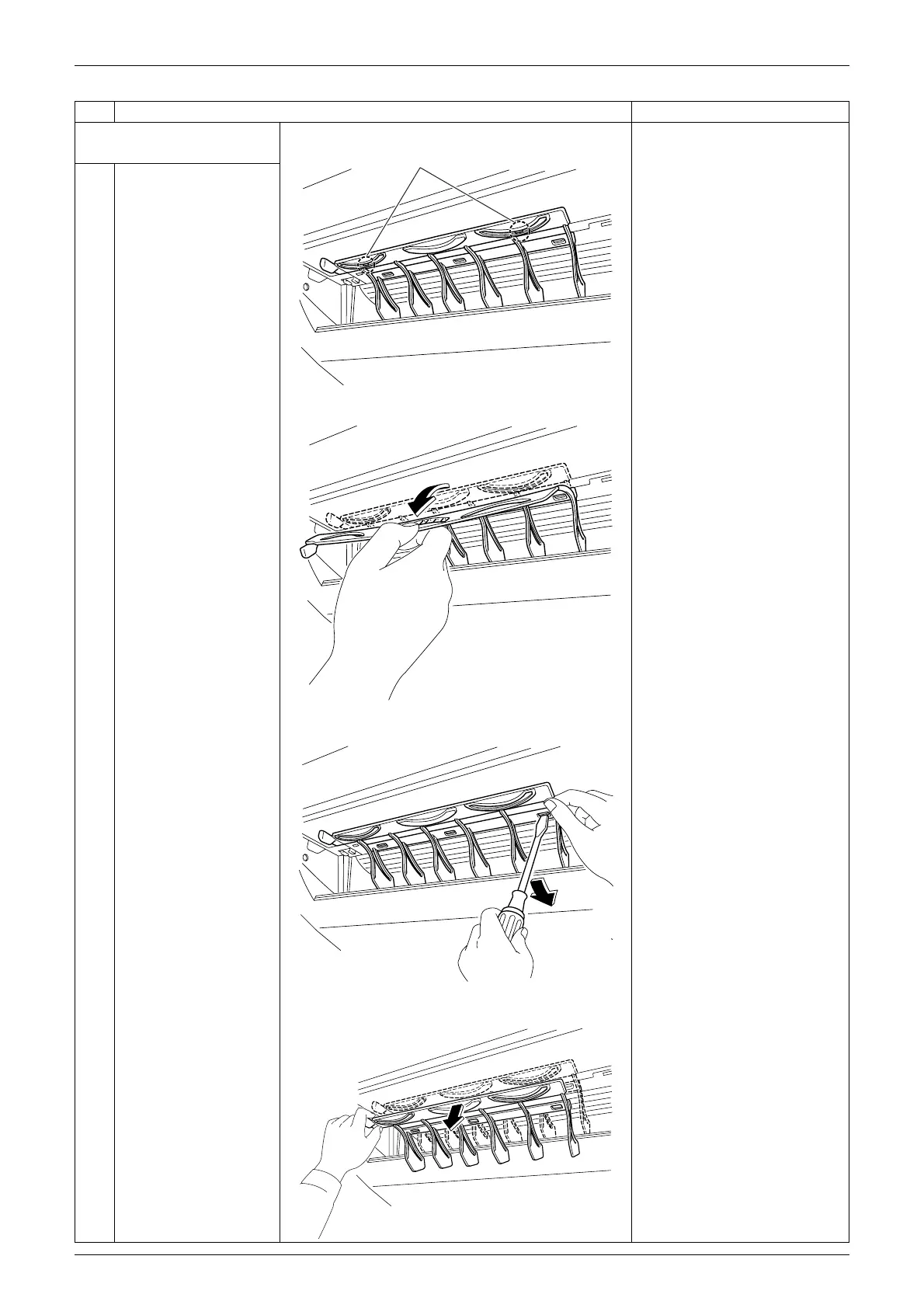

3. Removing the vertical
blade

Six vertical blades are
united as a set.
(It is impossible to replace
only one blade.)

The set of blades is not
marked for difference
between right and left.
1
Unfasten the hooks at
the upper 2 positions.
2
Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
3
Remove the vertical
blade toward yourself.

Repeat the same procedure
to remove the vertical blade
on the other side.
Step Procedure Points
Hooks
(R8586)
(R8587)
(R8588)
(R8589)
