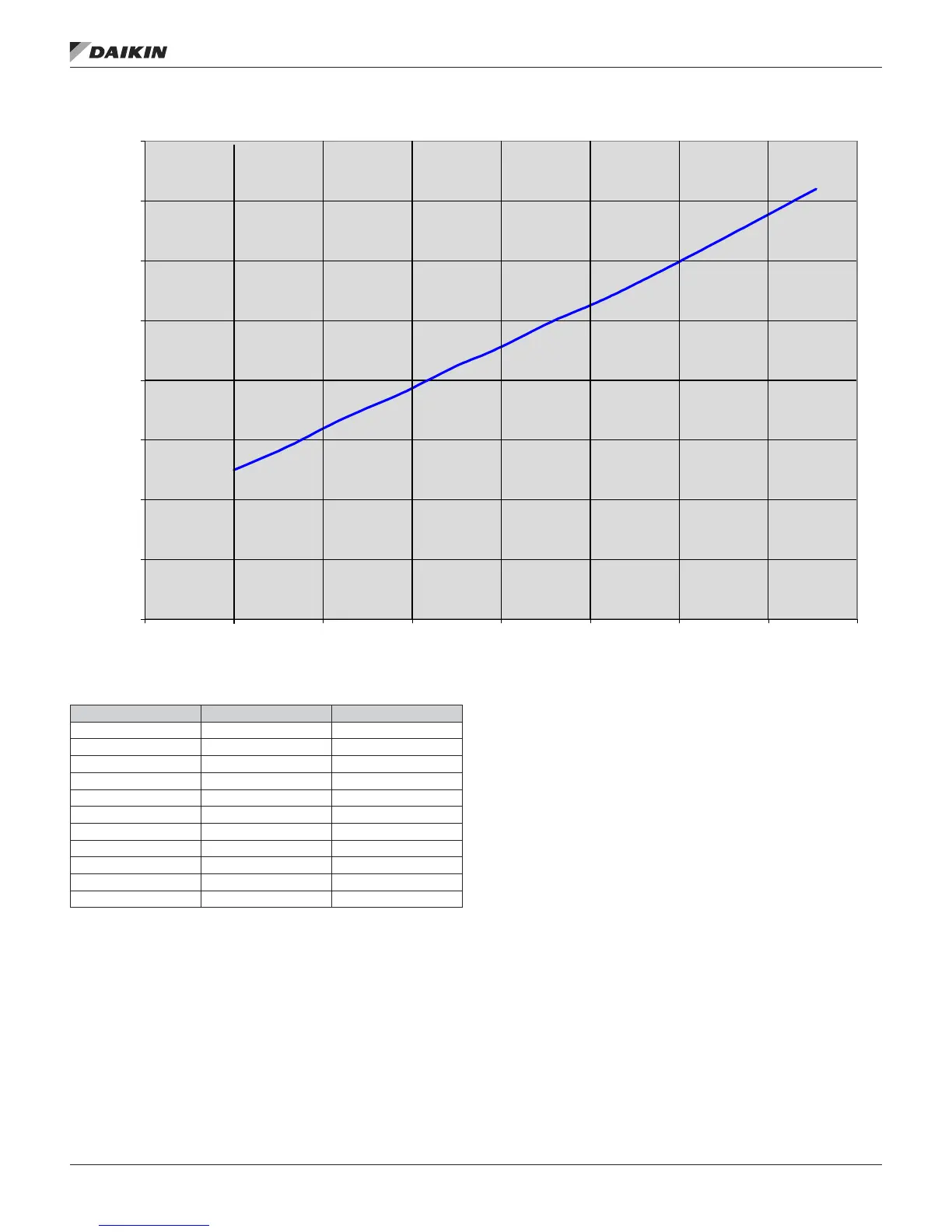

Figure 19: MicroTech III Wallstat Resistance vs. Setpoint
Resistance vs. Temperature for Setpoint Adjustment on the MicroTech III
Ohms T (°F) T (°C)
5000 50 10
6000 54 12
7000 57 14
8000 61 16
9000 64 18
10000 68 20
11000 72 22
12000 75 24
13000 79 26
14000 82 28
15000 86 30
0
2000
4000
6000
8000
10000
12000
14000
16000
45 50 55 60 65 70 75 80 85
Setpoint (F)
Resistance (Ohms)
IM 919-3 • MICROTECH III CONTROLLER 26 www.DaikinApplied.com
fIeld wIrIng
