SiBE05-722EE Outdoor Unit
Printed Circuit Board Connector Wiring Diagram 23
2.2 RK(X)S25/35G2V1B

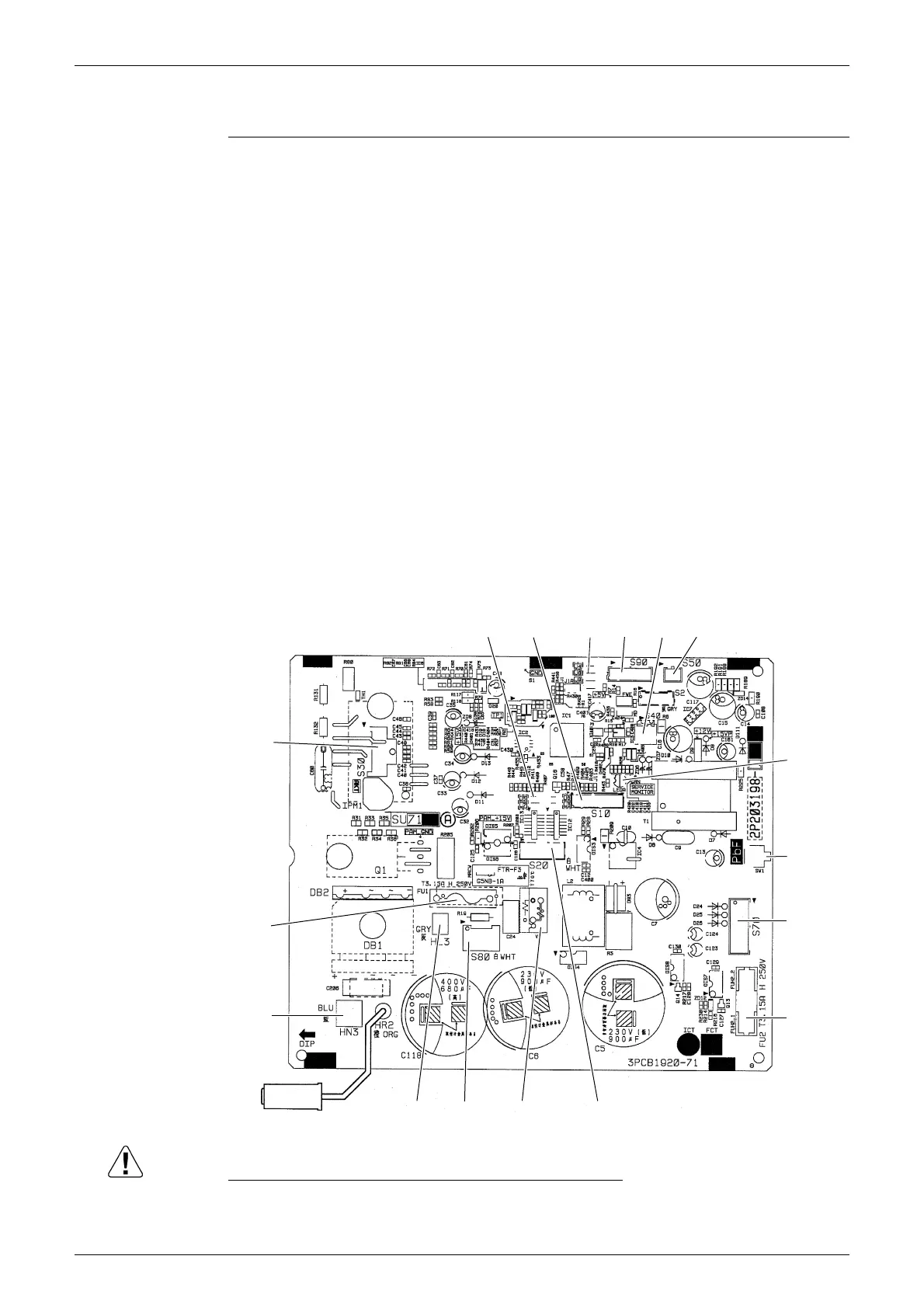

Main PCB (PCB2)
Caution Replace the PCB if you accidentally cut a wrong jumper.
Jumpers are necessary for the electronic circuit. Improper operation may occur if you cut any of
them.
1) S10 Connector for filter PCB
2) S20 Connector for electronic expansion valve coil
3) S30 Connector for compressor
4) S40 Connector for overload protector
5) S50 Connector for magnetic relay
6) S70 Connector for fan motor
7) S80 Connector for four way valve coil
8) S90 Connector for thermistors
(outdoor temperature, outdoor heat exchanger, discharge pipe)
9) HL3, HN3 Connector for filter PCB
10)HR2 Connector for reactor
11)FU1, FU2 Fuse (3.15 A, 250 V)
12)LED A LED for service monitor (green)
13)V1 Varistor
14)J5 Jumper for improvement of defrost performance
∗ Refer to page 121 for details.
15)J8 Jumper for facility setting
∗ Refer to page 120 for details.
16)SW1 Forced cooling operation ON/OFF button
∗ Refer to page 116 for details.
S10
S20
2P203198-1
J5
J8 S90
S50S40
S70
LED A
FU2
V1S80HL3
HR2
HN3
S30
FU1
SW1
