Outdoor Unit SiBE05-722EE

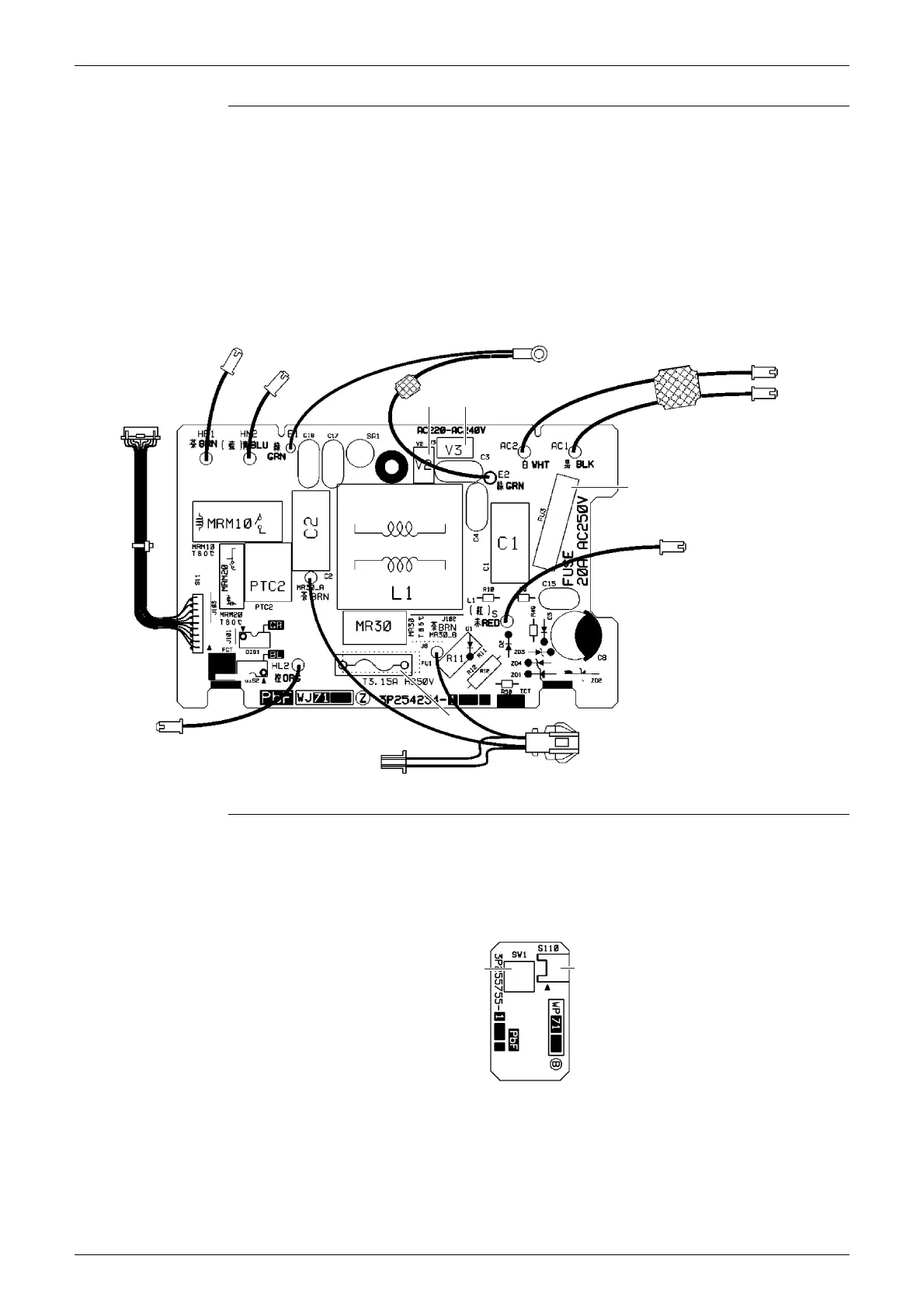

26 Printed Circuit Board Connector Wiring Diagram
Filter PCB (PCB1)
Forced Operation
Button PCB
(PCB3)
1) S11 Connector for main PCB
2) AC1, AC2, S Connector for terminal board
3) E1, E2 Terminal for earth wire
4) HL2, HN2 Connector for main PCB
5) HR1 Connector for reactor
6) FU1 Fuse (3.15 A, 250 V)
7) FU3 Fuse (20 A, 250 V)
8) V2, V3 Varistor
HR1
HL2
3P254234-1
FU1
HN2
S
FU3
AC2
E1, E2
AC1
S11
V3V2
S50
(on main PCB)
1) S110 Connector for main PCB
2) SW1 Forced cooling operation ON/OFF button
Refer to page 116 for details.
SW1
S110
3P255755-1
