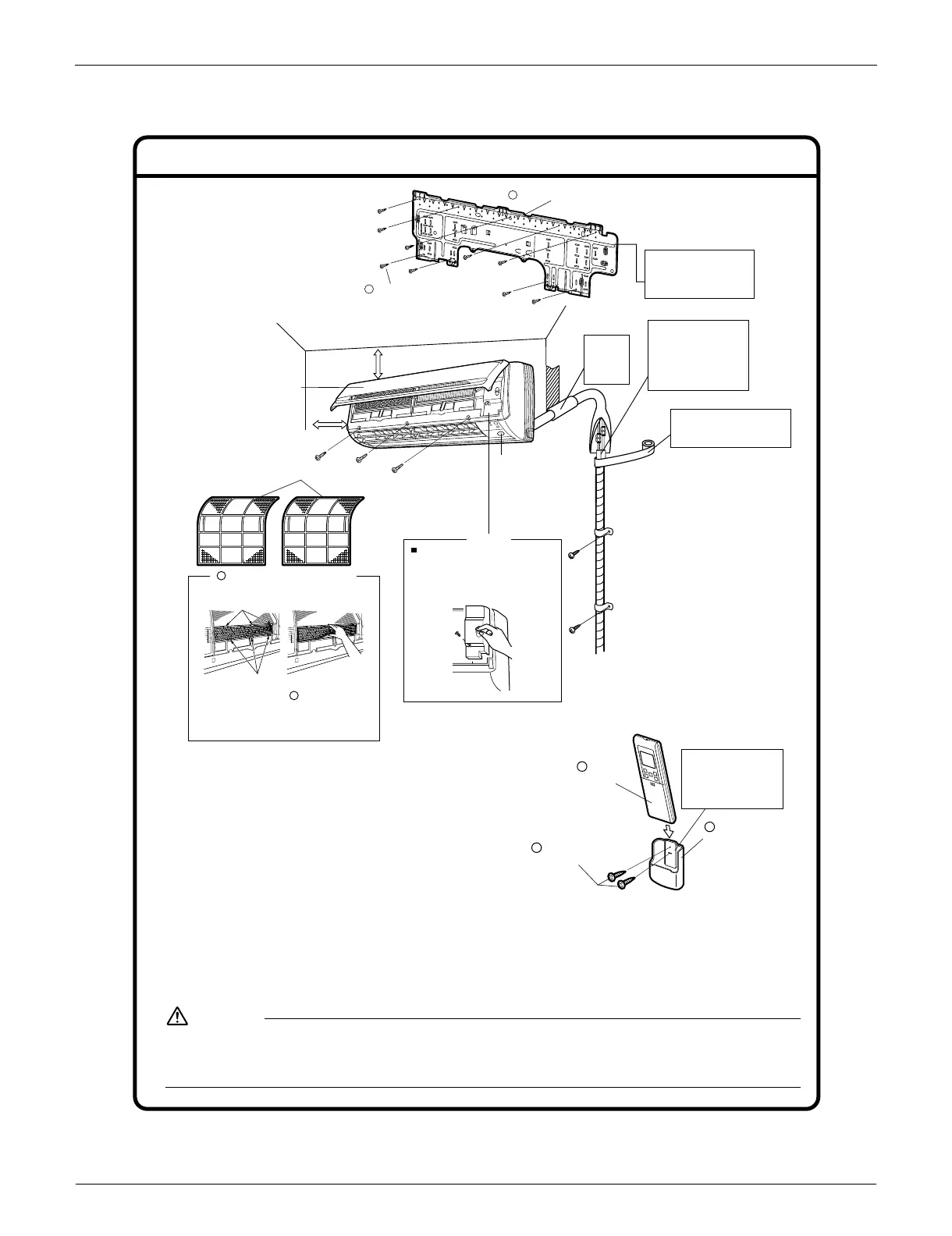

Indoor Unit Installation Drawings
Intelligent-eye Sensor
1) Do not hit or violently push the intelligent-eye sensor. This can lead to damage and malfunction.
2) Do not place large objects near the sensor. Also keep heating units or humidifiers outside the
sensor’s detection area.
CAUTION
Cut thermal insulation
pipe to an appropriate
length and wrap it with
tape, making sure that
no gap is left in the
insulation pipe’s cut line.
Caulk
pipe hole
gap
with putty.
1-3/16” (30mm) or more
from ceiling
1-15/16” (50mm) or more
from walls (on both sides)
B 3/16” × 1”L
(M4 × 25mm)
The mounting plate should
be installed on a wall
which can support the
weight of the indoor unit.
A Mounting plate
Air filters
C
Air-purifying filter with photocatalytic
deodorizing function
Insert the upper side of the Air-purifying filter
with photocatalytic deodorizin function into the tabs
(upper 3 locations),push the lower side of the filters
up a little and into the tabs (lower 3 locations).
C
D Wireless
remote controller
E
Remote
controller holder
Before screwing the remote
controller holder to the
wall, make sure that control
signals are properly
received by indoor unit.
1/8” × 13/16”L
(M3 × 20mm)
F
Wrap the insulation pipe with
the finishing tape from bottom
to top.
Front panel
Intelligent-eye sensor
Service lid
Opening service lid
Service lid is opening/closing type.
Opening method
1) Remove the service lid screws.
2) Lift the service lid upward.
Tabs (upper 3 locations)
Tabs (lower 3 locations)
To Next Page
