Daikin VRV 5-S - To Prevent the Outdoor Unit from Falling over

17 | Unit installation
Installer and user reference guide
86
RXYSA8~12AMY1B
VRV 5-S system air conditioner
4P752782-1A – 2024.02

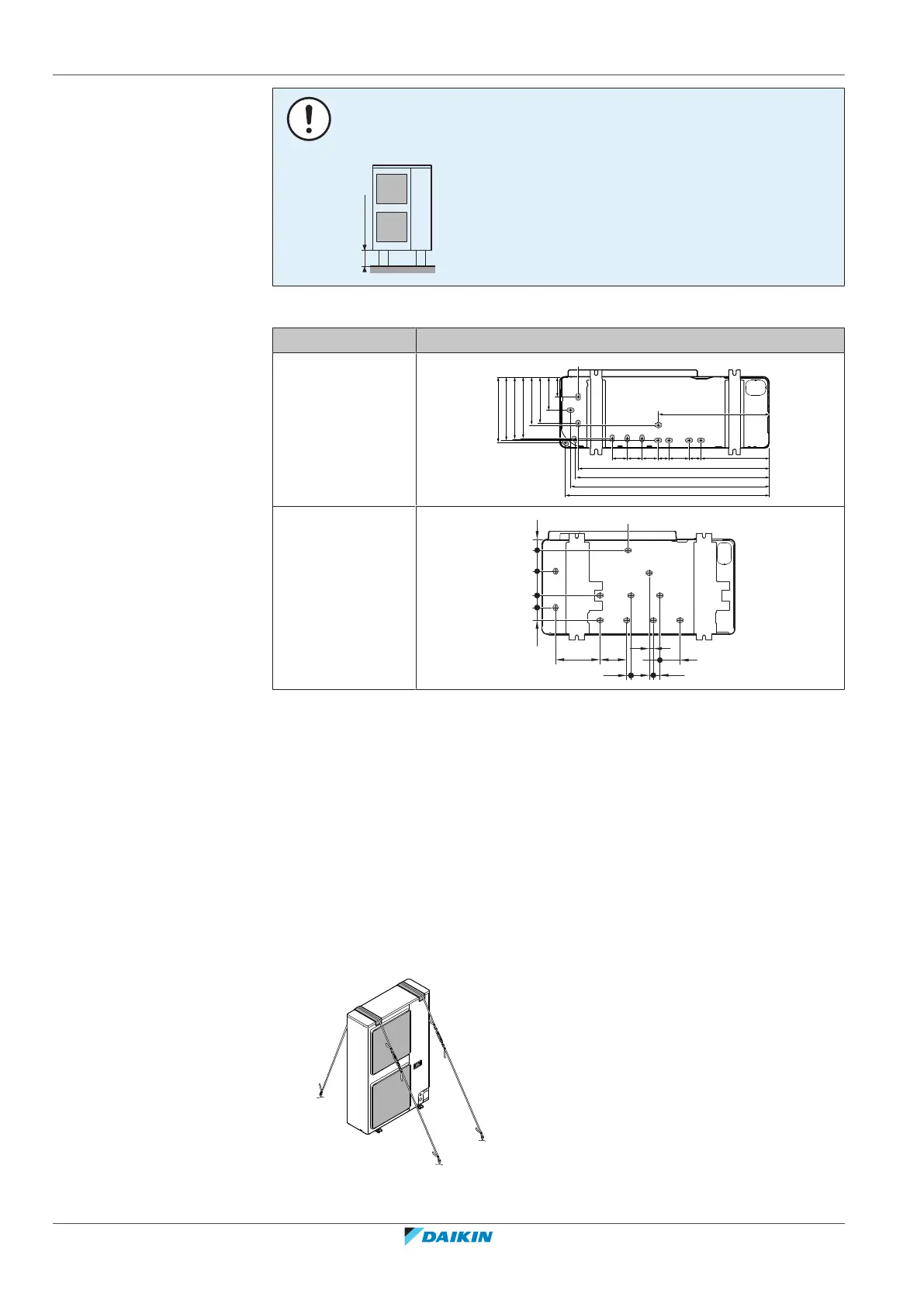

NOTICE
If drain holes of the outdoor unit are covered by a mounting base or by floor surface,
raise the unit to provide a free space of more than 150mm under the outdoor unit.
≥150
mm
Drain holes (dimensions in mm)
Model Bottom view [mm]
RXYSA8
307
858
872
892
916
5490497266
91
151
211
277
286
297
68
498
218
281
a
RXYSA10 +
RXYSA12
102
118
62
59
216
130
21
20
32
52
98
89
a
a Drain holes
17.3.4 To prevent the outdoor unit from falling over
In case the unit is installed in places where strong wind can tilt the unit, take
following measure:
1 Prepare 2 cables as indicated in the following illustration (field supply).
2 Place the 2 cables over the outdoor unit.
3 Insert a rubber sheet between the cables and the outdoor unit to prevent the
cables from scratching the paint (field supply).
4 Attach the ends of the cables.
5 Tighten the cables.
