WHS20/WHR1 User Manual
|
V1.0
Daintree
®

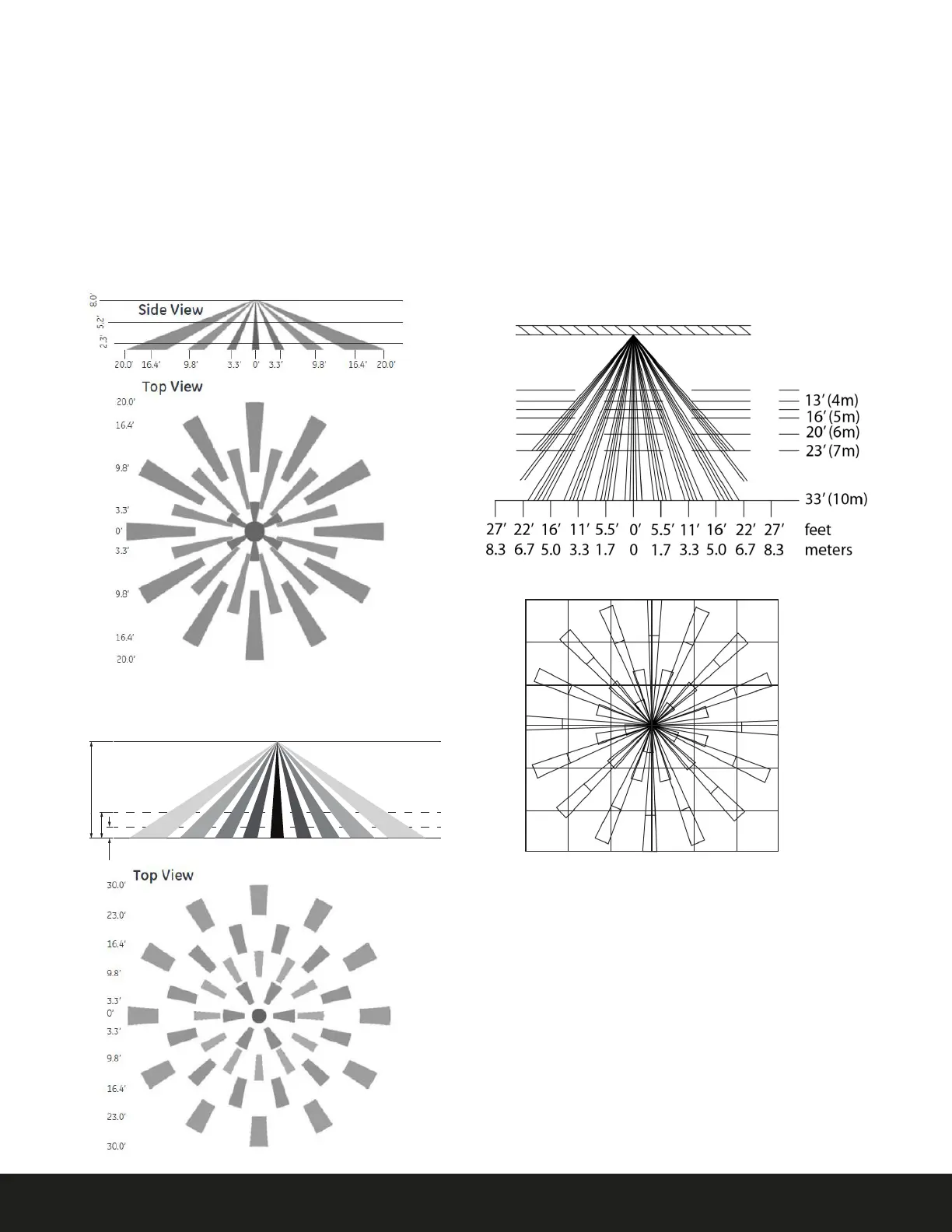

WHS20 High Bay Sensor – Coverage Pattern
Coverage patterns for different lens and mounting heights.
High Lens: 10m (33ft)
Low Lens: 2.5m (8ft)
Med Lens: 6m (20ft)
20ft Radius/40ft Diameter
30ft Radius/60ft Diameter
27ft Radius/54ft Diameter
Side View Sensor mounted 33’ (10m) from oor
29
The WHS20 comes with the High Lens as standard.
Low and Medium lenses can be ordered separately.
27'
(8.2m)
18'
(5.5m)
18'
(5.5m)
9'
(2.7m)
9'
(2.7m)
0 27'
(8.2m)
27'
(8.2m)
9'
(2.7m)
0
18'
(5.5m)
18'
(5.5m)
9'
(2.7m)
27'
(8.2m)
Top View
9.1M 8M 7M 6M 5M 4M 3M 2M 1M 0M 1M 2M 3M 4M 5M 6M 7M 8M 9.1M
6.0M
1.6M
0.7M
Side View
