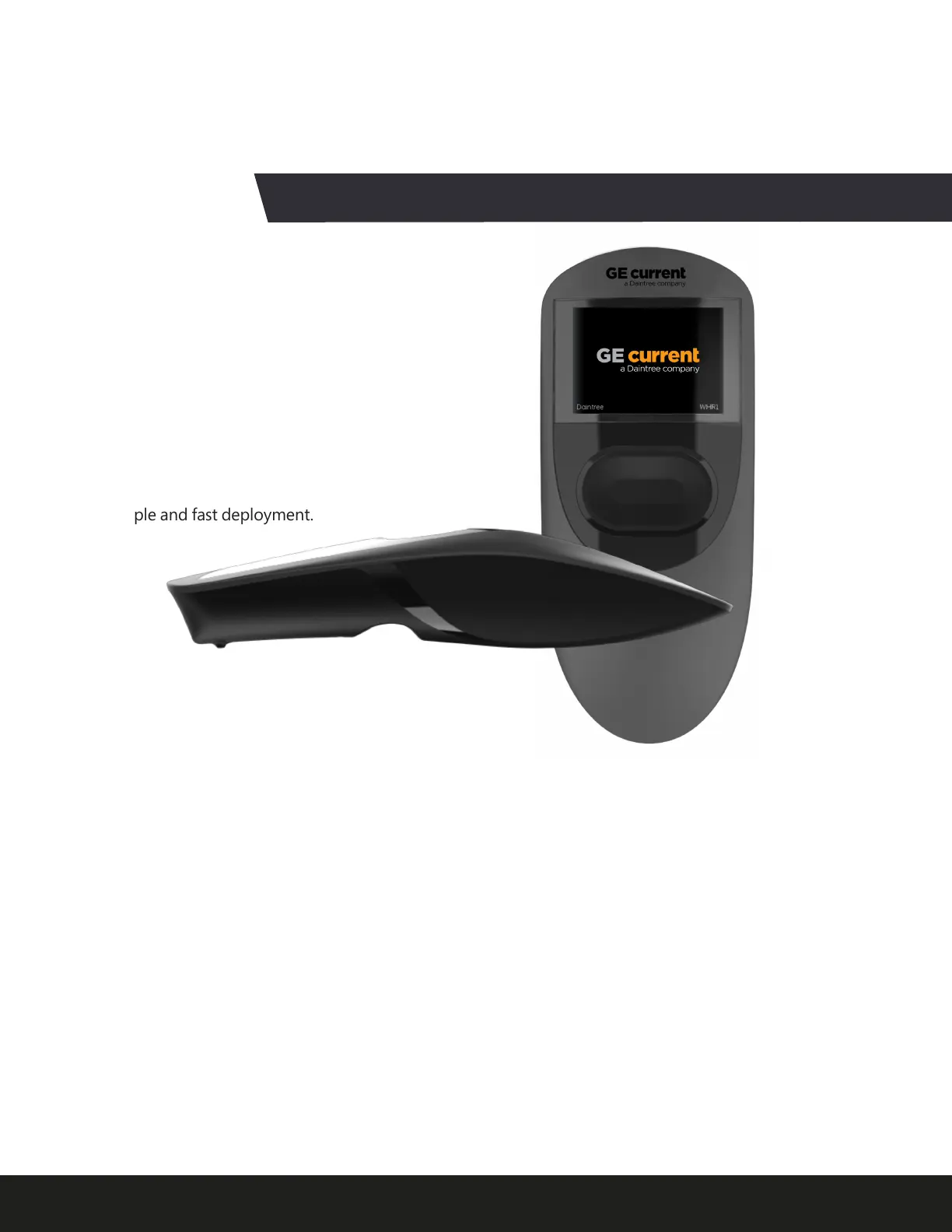

OVERVIEW - WHR1
Wireless Handheld Remote
The WHR1 Wireless Handheld Remote enables the
Daintree™ Wireless High-Bay Sensor (WHS20) using
infrared (IR) communication. WHR1’s intuitive user interface
can be used to configure the occupancy detection, ambient
light detection, and networking profile without the need for
lifts, ladders or tools. WHR1 stores up to 10 unique profiles
for simple and fast deployment.
Device Overview
The major components of the WHR1 are:
Batteries – The WHR1 is powered by 2x AA batteries (included beneath the packaging insert).
When replacing batteries, use quality Alkaline batteries.
Control Pad – The simple layout of the control pad makes navigation easy, while its design and material
finish provide comfort during use.
LCD Backlit Screen – The full-color LCD backlit display enhances the intuitive interface, making images
and text easy to read.
IR Transmitter / Receiver – The IR Transmitter / Receiver is located at the top of the remote.
The WHR1 must be pointed at the desired device in order to communicate with the device.
Battery Indicator – The remaining battery life of the WHR1 is shown in the upper-left of the LCD screen.
