SK2019 FMCD-V-ECM-001

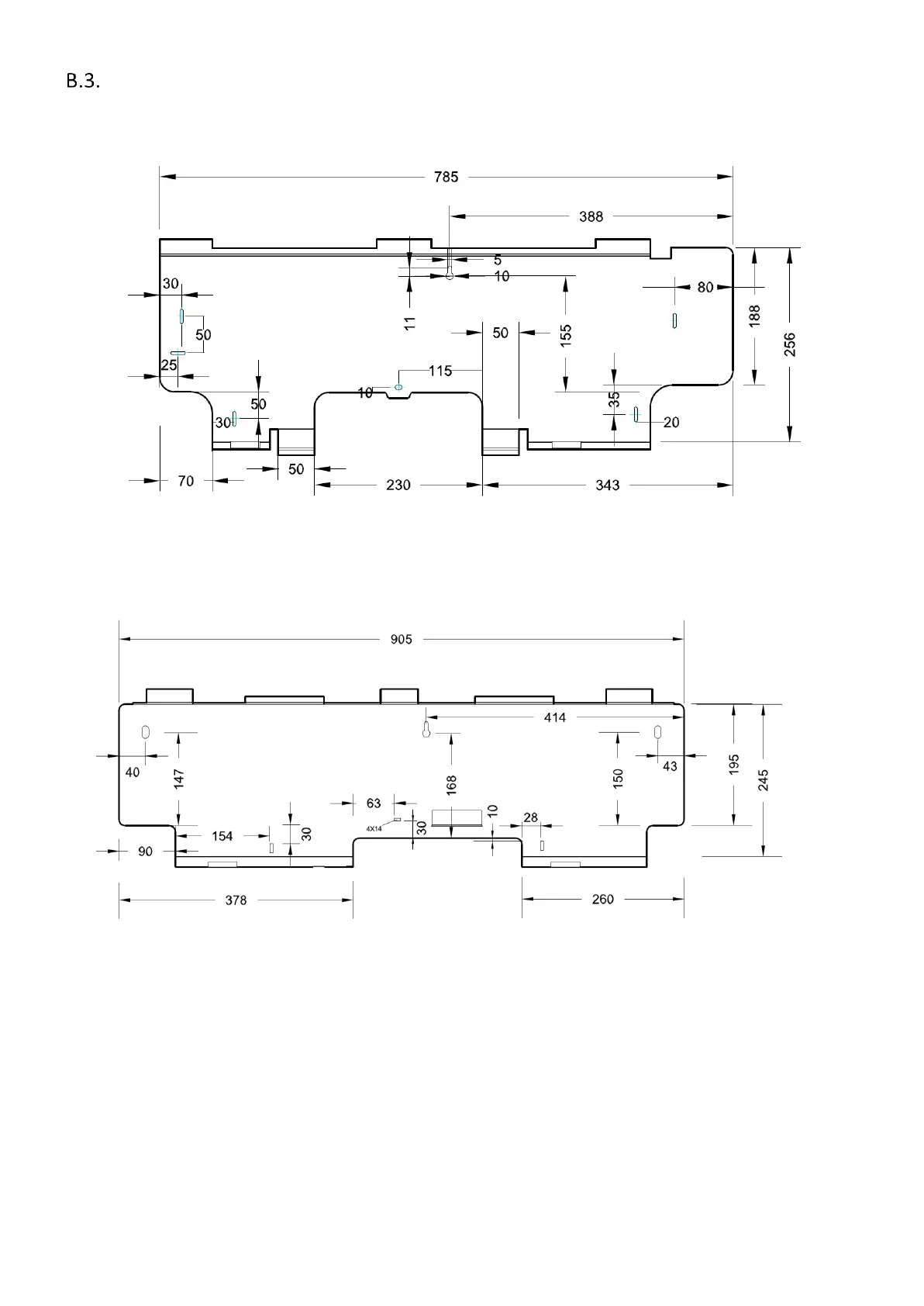

Mounting Plate Dimensions
FMCD-04/06/12/15/18 –ECM
FMCD-20/24/30 –ECM
(All dimensions shown in mm)
