Onboard configuration

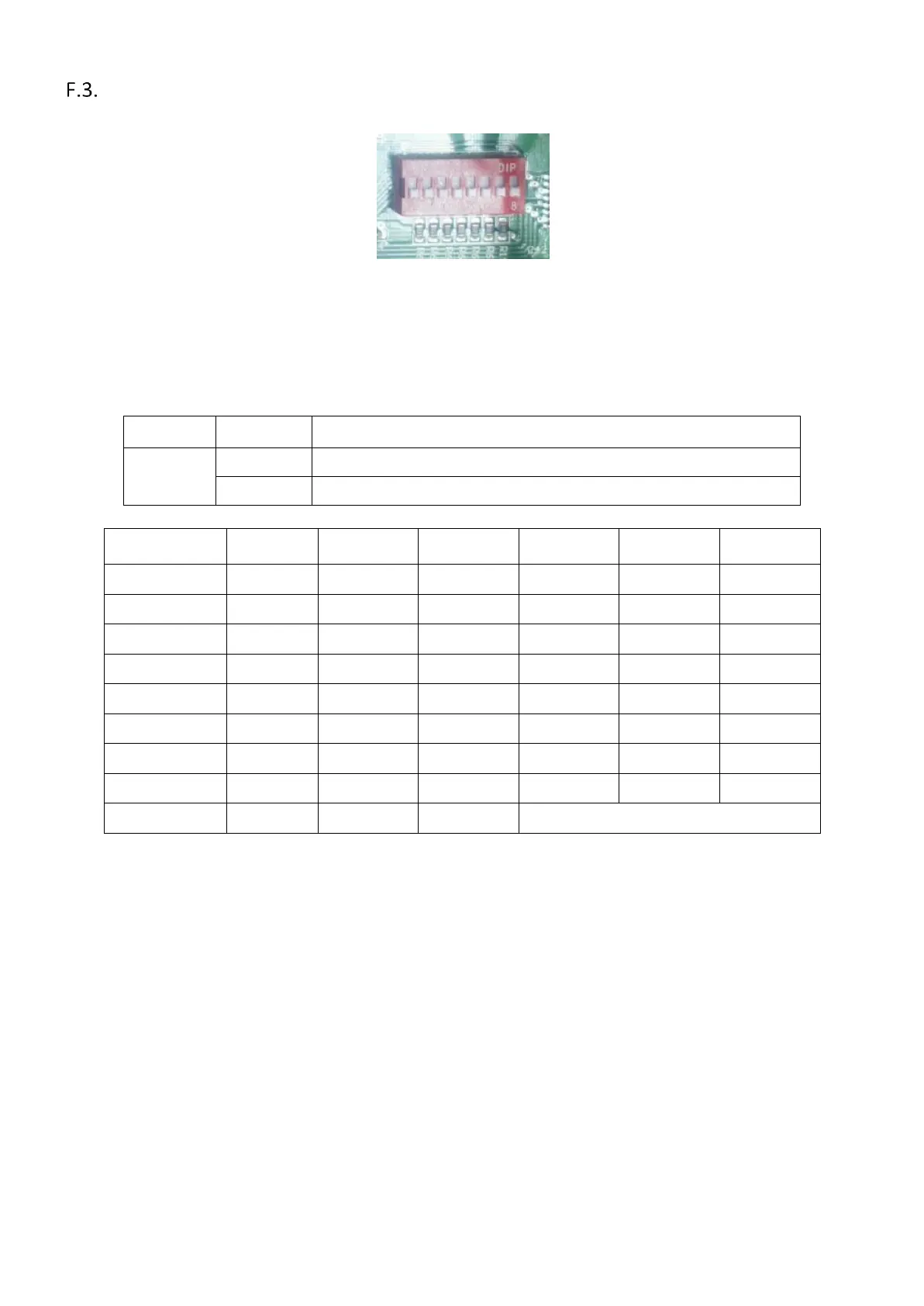

There is 1 DIP switch set on the PCB:
DIPB (8 positions)
• SW1: configured for different modulating signal
• SW2 – SW4: brushless DC fan motor configuration.
• SW5 – SW8: Reserved
Code
State
Description
SW1
0
PCB configured for 0~5VDC modulating signal input.
1
PCB configured for 0~10VDC modulating signal input.
MODEL
SW2
SW3
SW4
Hi
Med
Low
FMCD-04
0
0
0
700
600
500
FMCD-06
0
0
1
900
700
600
FMCD-12
0
1
0
950
700
600
FMCD-15
0
1
1
1100
800
700
FMCD-18
1
0
0
1300
1100
900
FMCD-20
1
0
1
1100
900
800
FMCD-24
1
1
1
1200
1100
900
FMCD-30
1
1
0
1350
1200
900
Default RPM
1
1
1
Set by customer requirement
