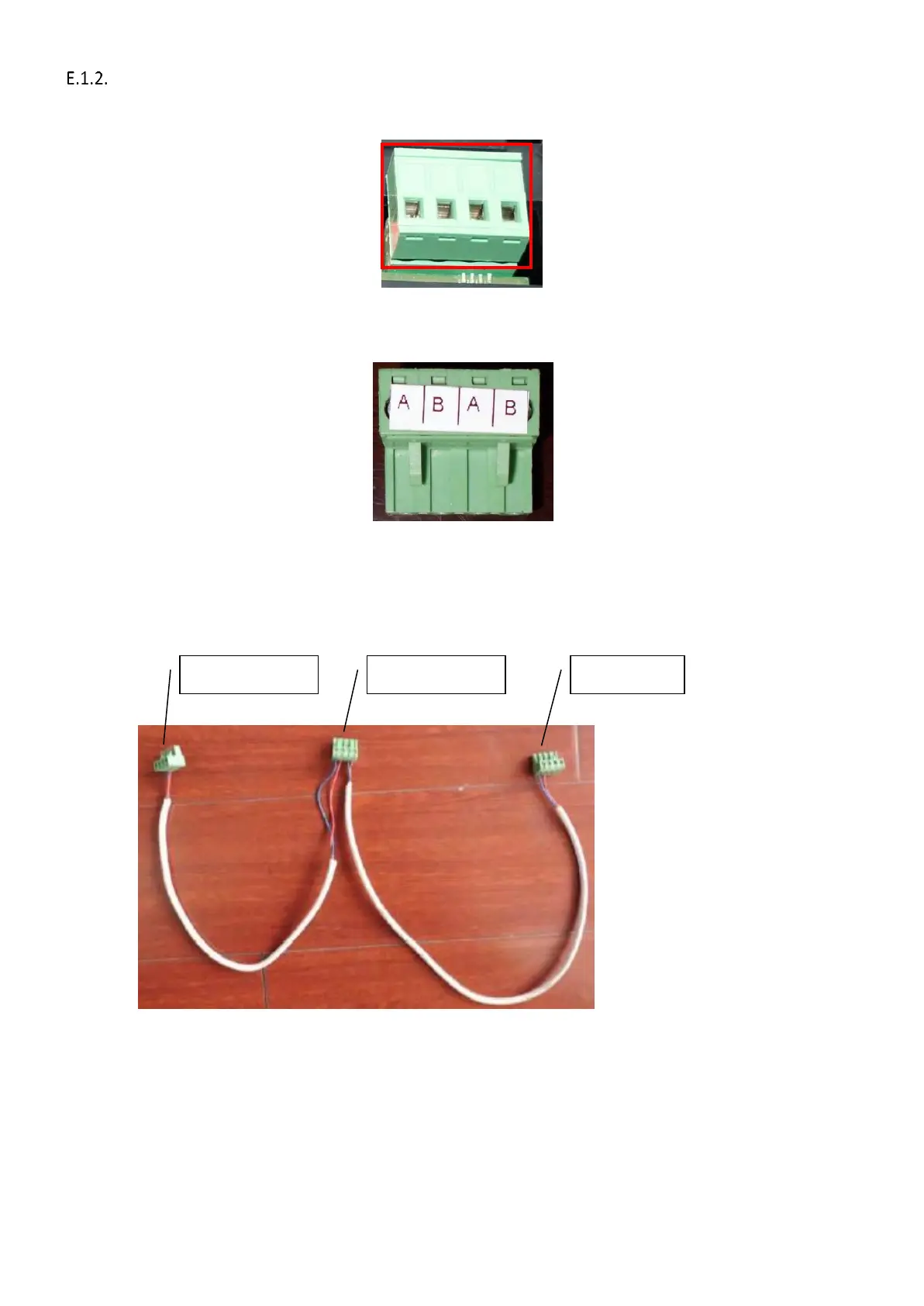

Master-Slave Network Setup
1. Disconnect the communication plug from the control box
2. Communication plug
A, B, A, B is printed on the main PCB. When you connect the wires, please ensure connection of A to A and B to B.
3. Connection wire
i. If the total length of wire is more than 1000m, please use shielded wire in order to protect the signal transmission.
ii. Complete wire connection
