Dalsa Spyder 3 S3-10-01k40-00-R User Manual

Spyder 3 CL User's Manual PRELIMINARY 29
DALSA 03-032-20008-03

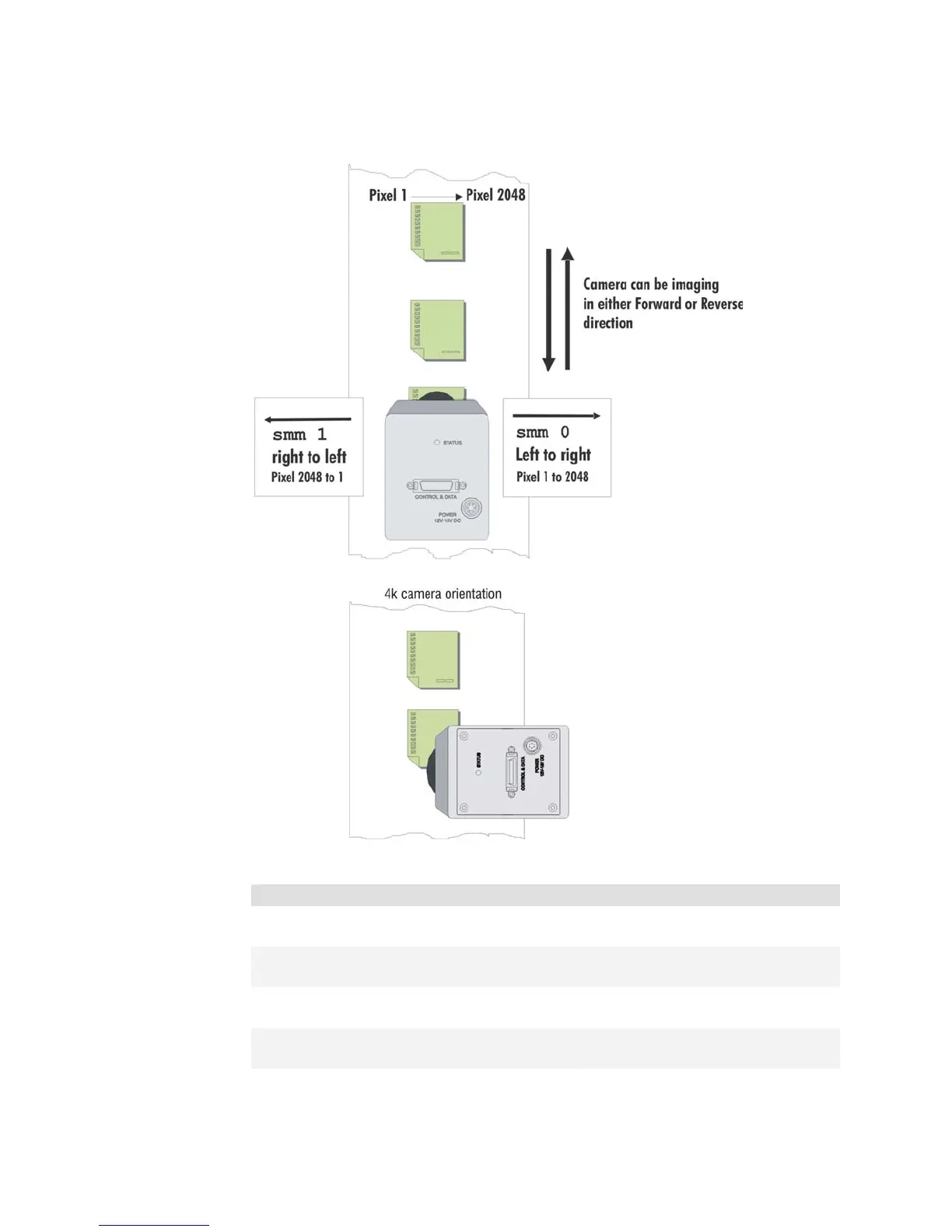

Figure 19: Camera Pixel Readout Direction Example using 2k Model with Inverting Lens
Table 11: Forward or Reverse Pixel Readout
Camera model Readout direction Command Tap 1 Tap 2
S3-10-01k40 Left to Right
smm 0
1-1024 n/a
Right to Left
smm 1
1024-1 n/a
S3-20-01K40 Left to Right
smm 0
1-512 513-1024
Right to Left
smm 1
1024-513 512-1
S3-10-02K40 Left to Right
smm 0
1-2048 n/a
Right to Left
smm 1
2048-1 n/a
S3-20-02K40 Left to Right
smm 0
1-1024 1025-2048
Right to Left
smm 1
2048-1025 1024-1
S3-20-04K40 Left to Right
smm 0
1-2048 2049-4096
Right to Left
smm 1
4096-2049 2048-1
