Spyder 3 CL User's Manual PRELIMINARY 9
DALSA 03-032-20008-03
• Exposure mode disabled.
• Unless specified, dual line mode.
Notes
1. PRNU measured at 50% SAT.
1.3 Image Sensor
The camera uses DALSA’s dual line scan sensor. The camera can be configured to read
out in either high or low sensitivity mode, tall pixel mode, and forward or reverse shift
direction.

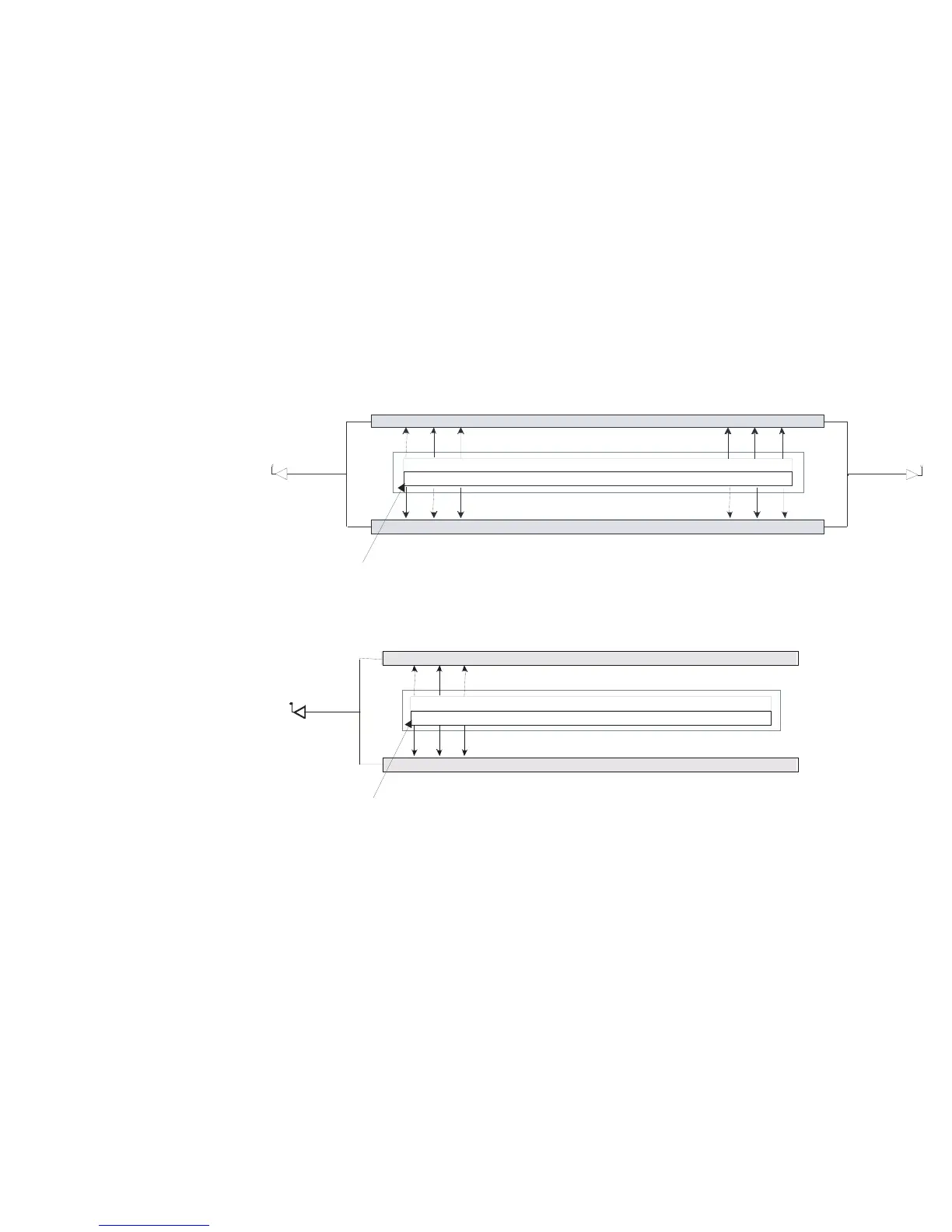

Figure 1: 2 Tap Sensor Block Diagram
Tap2Tap1
CCDReadoutShiftRegister
CCDReadoutShi ftRegister
N
Pixels
N
Pixels
N
=1024,2048,4096
Pixel1,1
Figure 2: 1 Tap Sensor Block Diagram (1k and 2k only)
Tap1
CCDReadoutShiftReg ist er
CCDReadout ShiftRegister
N
Pixels(14μmx14μm)
N
Pixels(14μmx14μm)
N
=1024,2048
Pixel1,1
