Spyder 3 CL User's Manual PRELIMINARY 17
DALSA 03-032-20008-03
for a list of companies that make power supplies that meet the camera’s requirements.
The companies listed should not be considered the only choices.
2.4 Camera LED
The camera is equipped with a red/green LED used to display the operational status of
the camera. The table below summarizes the operating states of the camera and the
corresponding LED states.
When more than one condition is active, the LED indicates the condition with the highest
priority. Error and warning states are accompanied by corresponding messages further
describing the current camera status.
Table 5: Diagnostic LED
Priority Color of Status LED Meaning
1 Flashing Red Fatal Error. For example, camera temperature is too
high and camera thermal shutdown has occurred.
2 Flashing Green Camera initialization or executing a long command
(e.g., flat field correction commands ccp or ccf)
3 Solid Green Camera is operational and functioning correctly
2.5 Camera Link Data Connector

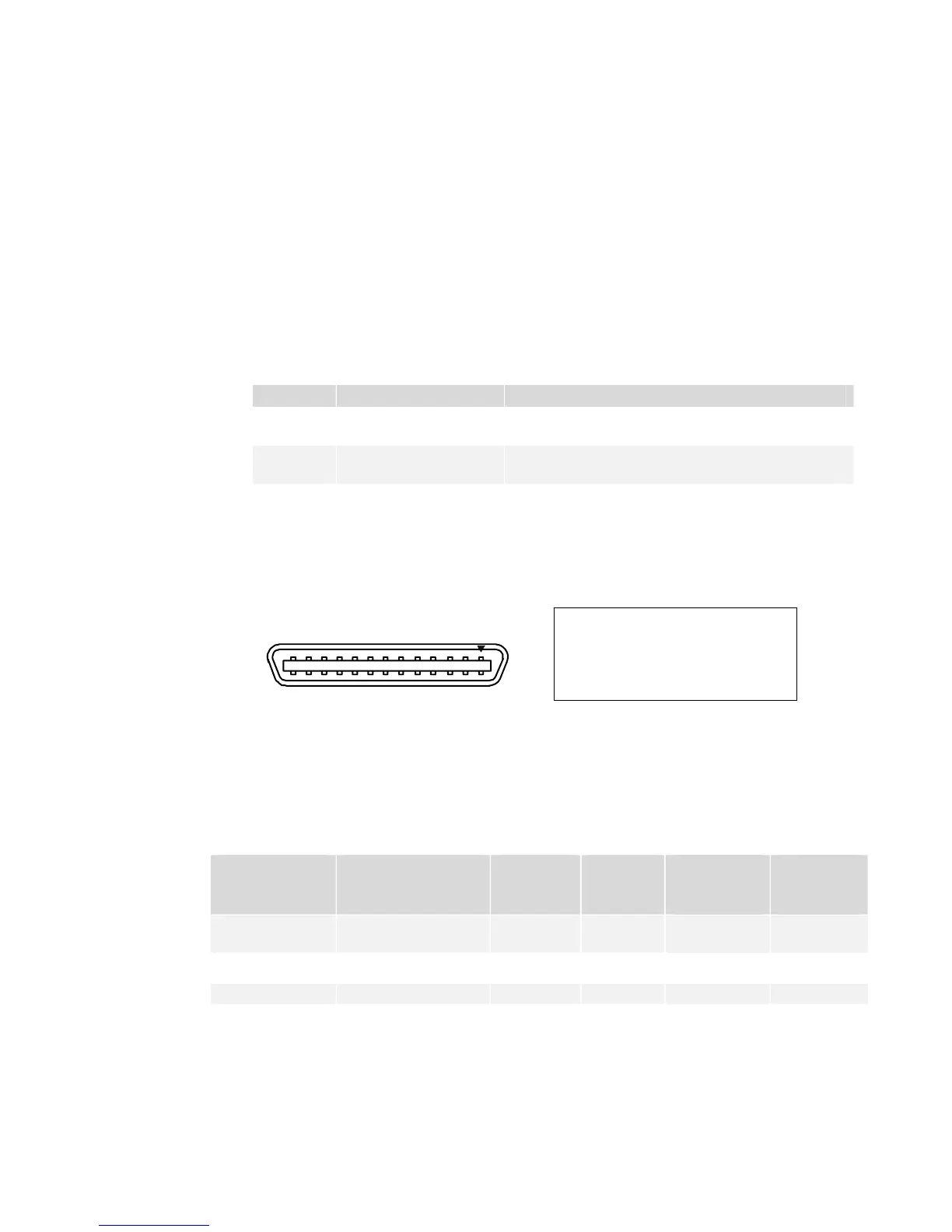

Figure 13: Camera Link MDR26 Connector
MDR26 Female
1
14
13
26
Mating Part
: 3M 334-31 series
Cable:
3M 14X26-SZLB-XXX-0LC
**
The Camera Link interface is implemented as a Medium or Full Configuration in the
Spyder 3 cameras. Refer to section
Setting the Camera Link Mode for details on setting
the Camera Link configuration.
Table 6: Camera Link Hardware Configuration Summary for Piranha HS-xx Models
Configuration 8 Bit Ports
Supported
Serializer
Bit Width
Number
of Chips
Number of
MDR26
Connectors
Applicable
Camera
Models
Base A, B, C 28 1 1 The various
models
**3M part 14X26-SZLB-XXX-0LC is a complete
cable assembly, including connectors.
Unused pairs should be terminated in 100
ohms at both ends of the cable.
