1.4 Responsivity

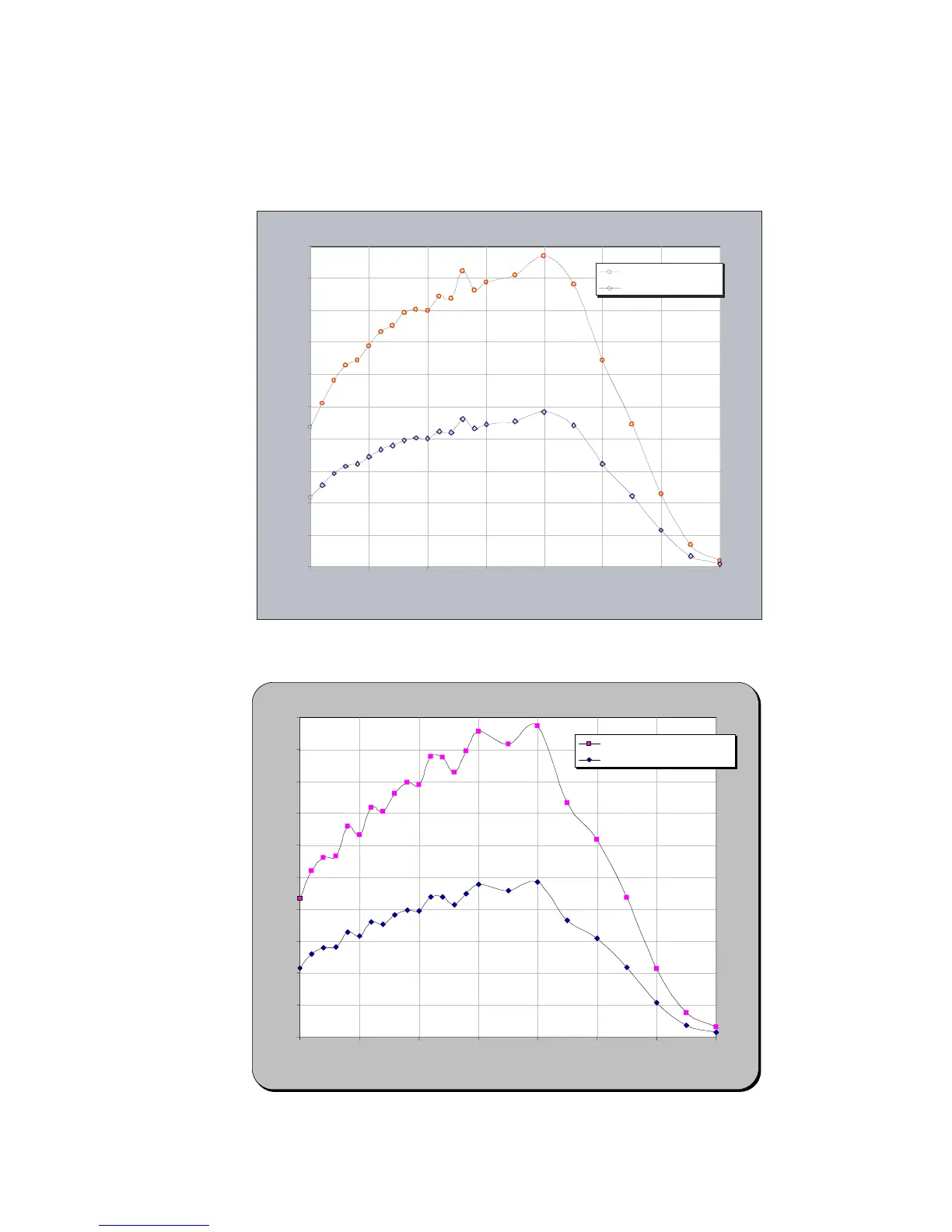

Figure 7: Spyder 3 CL 1k and 2k Responsivity
Spectral Responsivity. Nominal Gain
0
250
500
750
1000
1250
1500
1750
2000
2250
2500
400 500 600 700 800 900 1000 1100
Wavelength (nm)
Responsivity {DN/(nJ/cm²)}
High Sensitivity Mode
Low Sensitivity Mode
Figure 8: Spyder 3 CL 4k Responsivity
Spectral Responsivity. Nominal Gain
0
10
20
30
40
50
60
70
80
90
100
400 500 600 700 800 900 1000 1100
Wavelength (nm)
Responsivity {DN/(uJ/cm²)}
High Sensitivity Responsivity
Low Sensitivity Responsivity
