50 PRELIMINARY Spyder 3 CL User's Manual
03-032-20008-03 DALSA

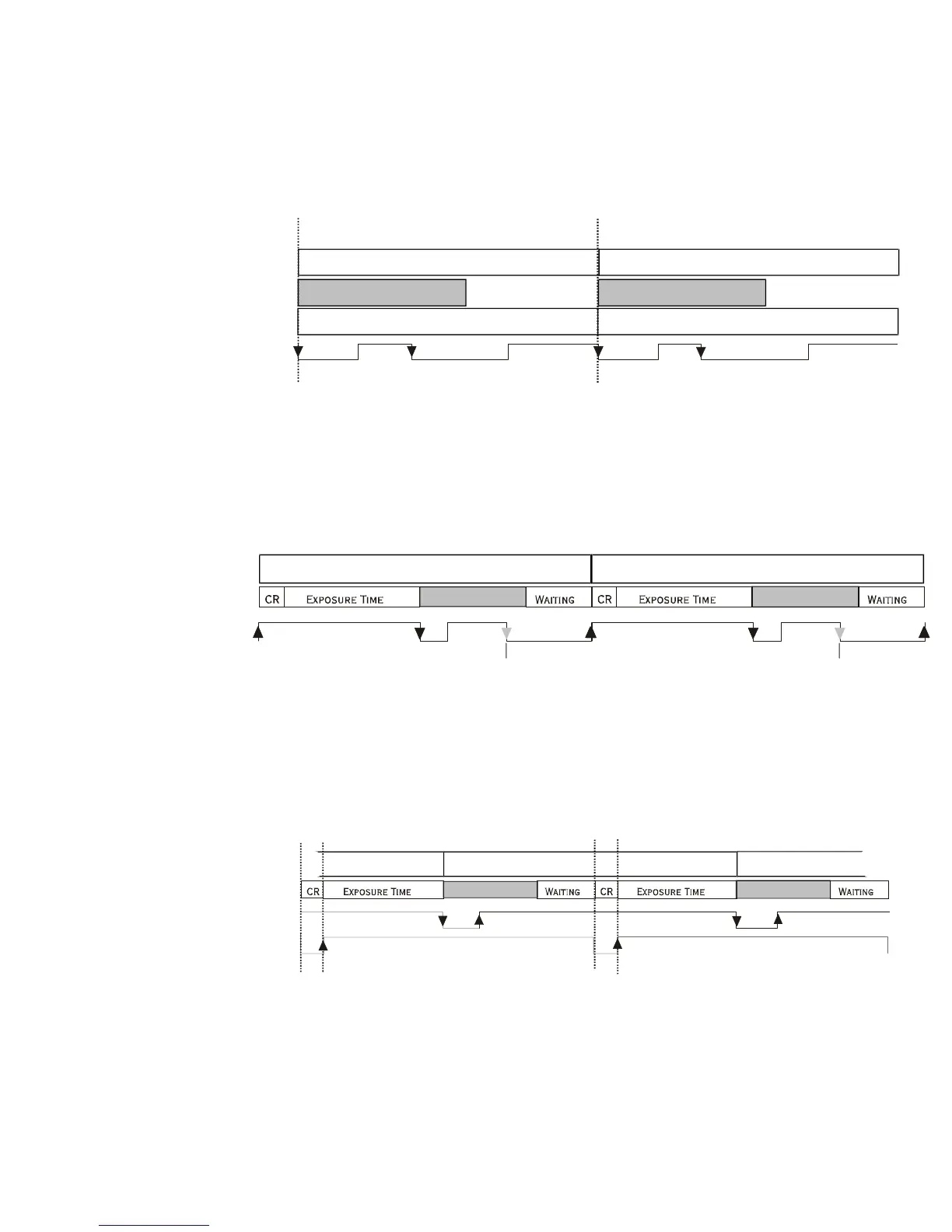

Mode 3: External Trigger with Maximum Exposure
Line rate is set by the period of the external trigger pulses. The falling edge of the external
trigger marks the beginning of the exposure.
Example 2: Line Rate is set by External Trigger Pulses.
Mode 4: Smart EXSYNC, External Line Rate and Exposure Time
In this mode, EXSYNC sets both the line period and the exposure time. The rising edge of
EXSYNC marks the beginning of the exposure and the falling edge initiates readout.
Example 3: Trigger Period is Repetitive and Greater than Read Out Time.
Mode 5: External Line Rate (EXSYNC) and External Pixel Reset (PRIN)
In this mode, the falling edge of EXSYNC sets the line period and the rising edge of PRIN
sets the start of exposure time.
Figure 23: EXSYNC controls Line Period and PRIN controls Exposure Time
Line Period
Exposure Time
Line Period
Readout
Exposure Time
EXSYNC
Falling Edge
Ignored During
Readou
t
Readout
Falling Edge
Ignored During
Readout
Readout
EXSYNC
EXSYNC Falling
Edge ignored
during readout
Line Period
CR=Charge Reset
Readout
Line Period
EXSYNC Falling
Edge ignored
during readout
Readou
t
EXSYNC
Line Period
cr=Charge Reset
Readou
t
PRIN
Line Period
Line Period
