Overview

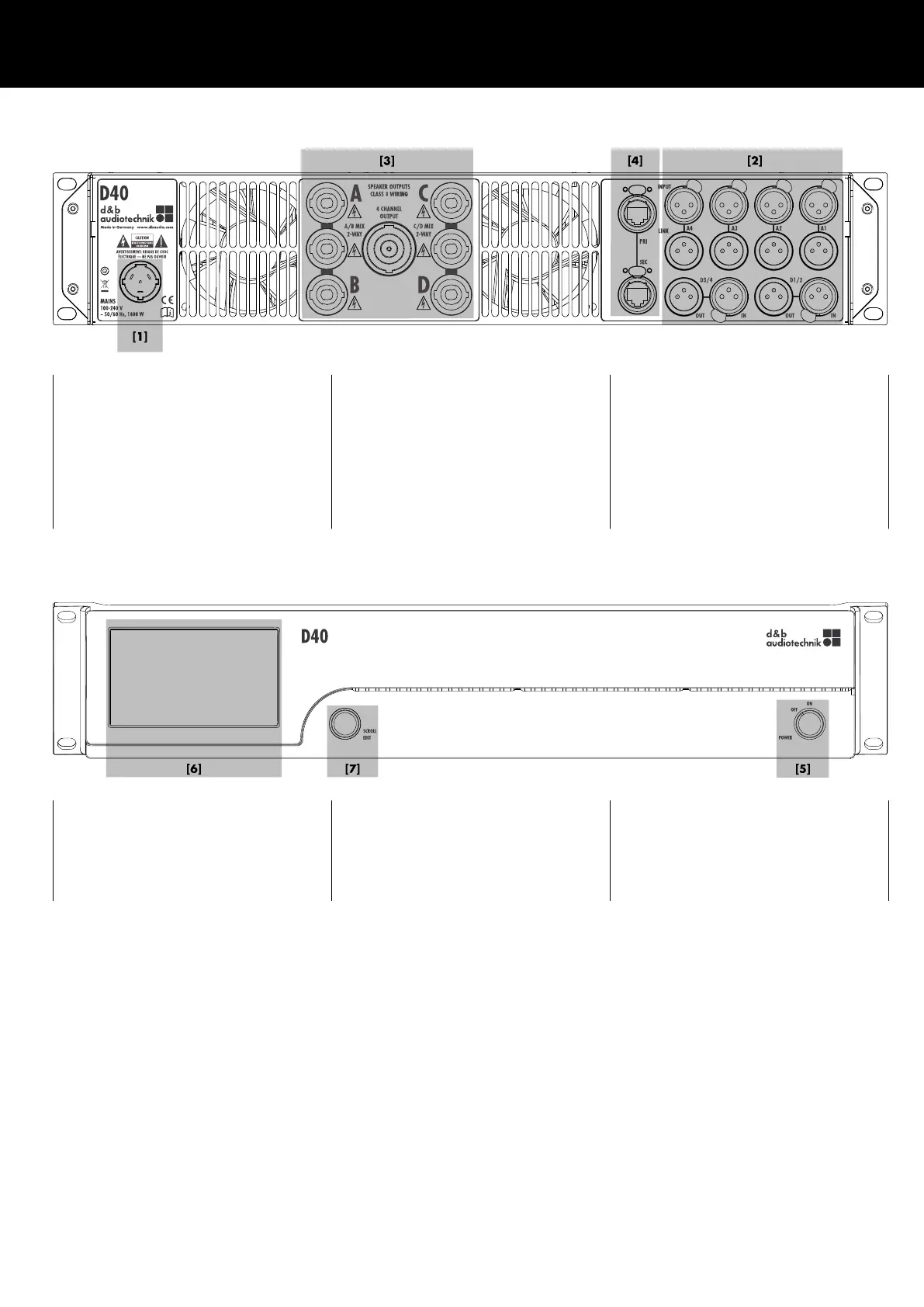

4.1 Connections
[1] Mains connector socket.
Refer to Þ Chapter 5.2.1 "Mains
connection" on page 15.
[3] Output connector panel.
Refer to Þ Chapter 5.2.3 "SPEAKER
OUTPUTS" on page 17.
[2] Audio INPUT (analog/digital) and
LINK connectors.
Refer to Þ Chapter 5.2.2 "Audio
input and output connectors"
on page 16.
[4] Network (PRI/SEC).
Refer to Þ Chapter 5.2.4 "Network
connections (PRI/SEC)" on page 18.
4.2 Controls and indicators - User interface
[6]
TFT color touchscreen
4.3" / 480 x 272 pixels.
[7] Rotary encoder SCROLL/EDIT.
Refer to Þ Chapter 5.3 "Controls and
indicators" on page 19 and .
[5] Mains power switch.
Refer to Þ Chapter 5.3 "Controls and
indicators" on page 19, following
Þ Chapter 5.3.1 "Mains power
switch" on page 19.
