3.0 Choose your favorite display
Your favorite display is the display you have
chosen as the default display. The favorite
display will give you a quick overview of
the temperatures or units that you want to
monitor in general.
If the dial has not been activated for 20 min.,
the controller will revert to the overview
display you have chosen as favorite.
Change between displays by turning the
dial until you reach the display selector
( ) at bottom right side of the display.
Turn the dial and push to choose your
favorite overview display.
Heating circuit
Dependent on the chosen display, the
overview displays for the heating circuit
inform you about:
• actualoutdoortemperature(-0.5)
• controllermode(
)
• actualroomtemperature(24.5)
• desiredroomtemperature(20.7°C)
• trendinoutdoortemperature(
)
• min.andmax.outdoortemperatures
since midnight (
)
• date(23.02.2010)
• time(7:43)
• comfortscheduleofthecurrentday
(0 - 12 - 24)
• state of the controlled components
(M2, P2)
• actual flow temperature (49 °C), (desired
flow temperature (31))
• return temperature (24 °C) (limitation
temperature (50))

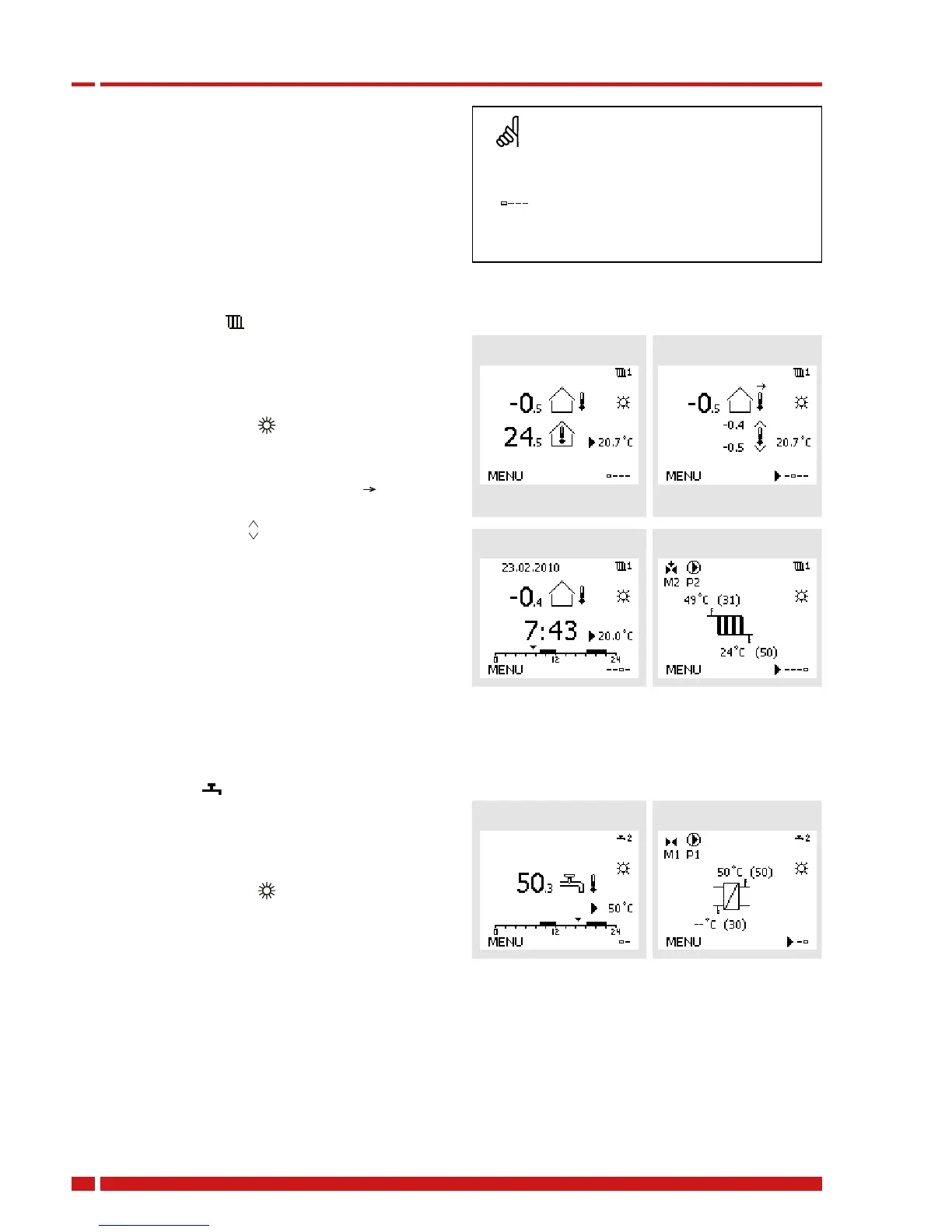

Overview display 1: Overview display 2:
Display selector
Overview display 3: Overview display 4:
DHW circuit
Dependent on chosen display, the overview
displays for the DHW circuit inform you
about:
• actualDHWtemperature(50.3)
• controllermode(
)
• desiredDHWtemperature(50°C)
• comfortscheduleofthecurrentday
(0 - 12 - 24)
• stateofthecontrolledcomponents
(M1, P1)
• actual DHW temperature (50 °C), (desired
DHW temperature (50))
• return temperature (- - °C) (limitation
temperature (30))
Overview display 1: Overview display 2:
