Danfoss 102E7 Installation & User's Instructions

7
Wiring
1
2
3
5
6
L N
L N
L
N
MAINS
SUPPLY
FUSED
3 AMP
ROOM
' S TAT
LINK
COM
CALL
N
PUMP
TERMINALS
BOILER
TERMINALS
102E5
TERMINALS

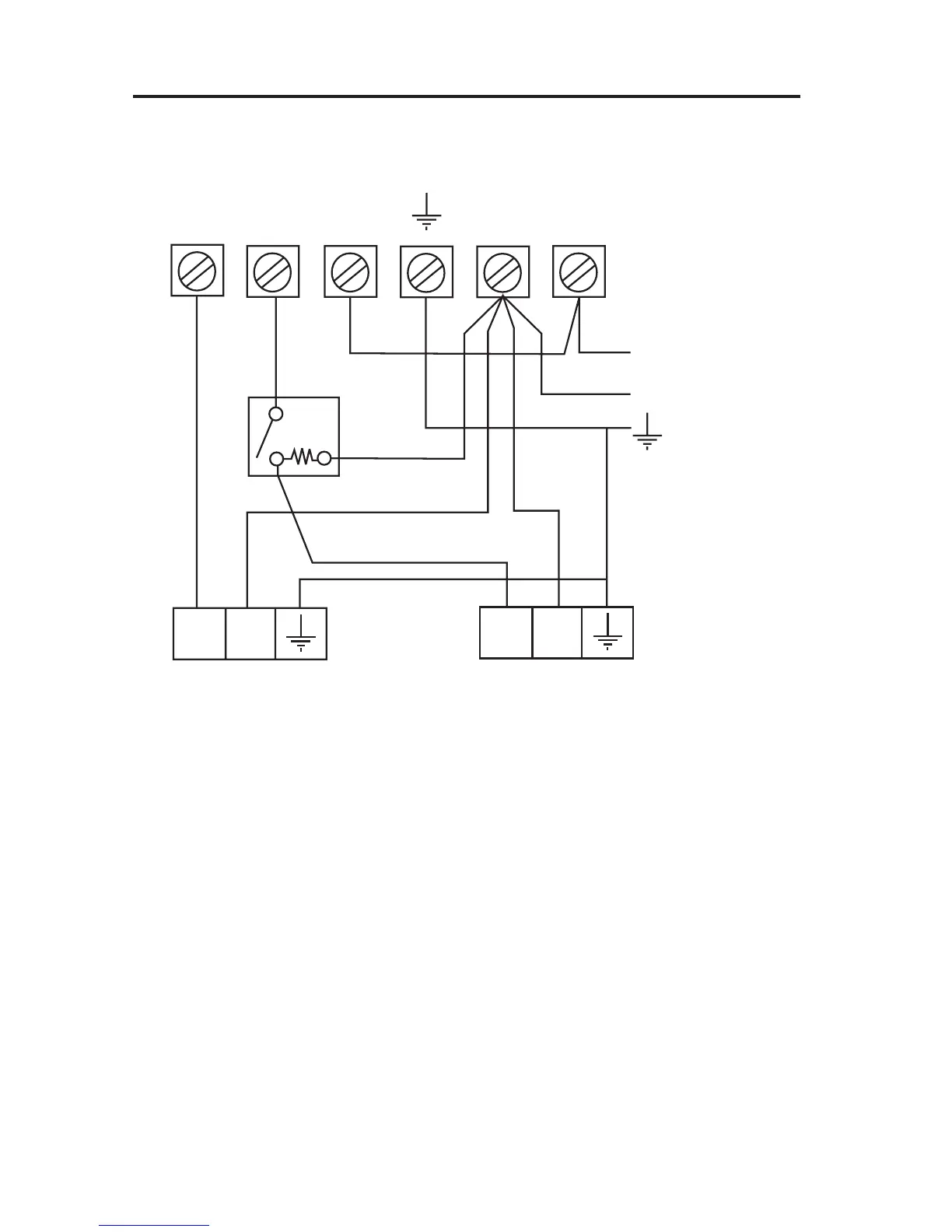

Typical Gravity DHW with Pumped Heating
Typical domestic gas or oil-fi red central heating system
with gravity hot water and pumped heating. (If a room
thermostat is not used, wire pump live directly to terminal 2
of the 102E7).
102E7
TERMINALS

Danfoss 102E7 Specifications

General

Brand	Danfoss
Model	102E7
Category	Thermostat
Language	English
