AK-CH 650 Capacity controller RS8ER302 © Danfoss 2016-02 21

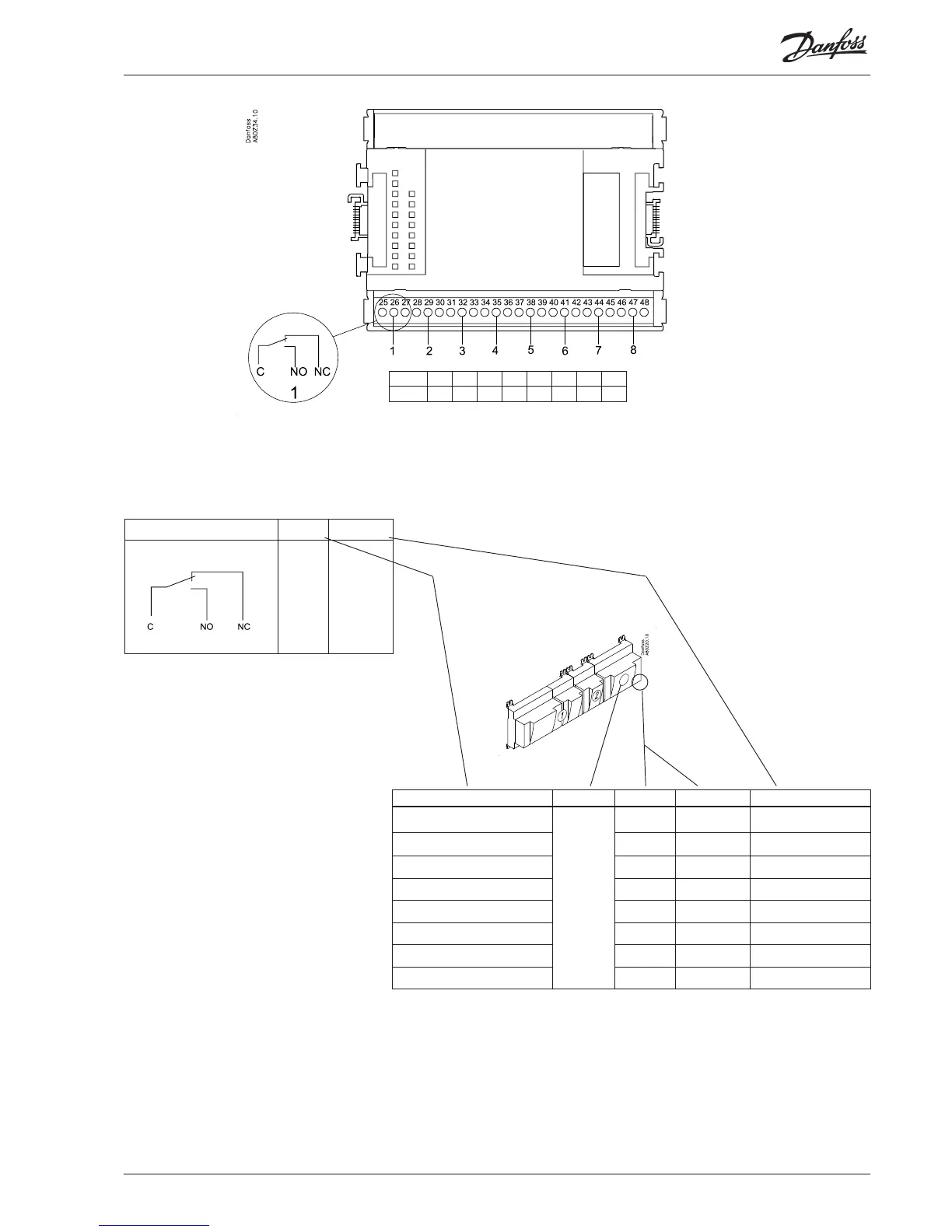

Point
Signal Module Point Terminal Active at
1 (DO 1) 25 -26 - 27
2 (DO 2) 28 - 27 - 30
3 (DO 3) 31 - 32 - 33
4 (DO 4) 34 - 35 -36
5 (DO 5) 37 - 38 - 39
6 (DO 6) 40 - 41 - 42
7 (DO 7) 43 - 44 - 45
8 (DO 8) 46 - 47 - 48
Signal Active at
DO
Comp. 1
Comp. 2
Fan 1
Alarm
On
/
O
Point 1 2 3 4 5 6 7 8
Type DO1 DO2 DO3 DO4 DO5 DO6 DO7 DO8
