BoWex-ELASTIC
®
Operating/Assembly instructions
Type HEW, HEW Compact and HEW-ZS
KTR-N
Sheet:
Edition:
40114 EN
9
of 22
7
Please observe protection
note ISO 16016.
Drawn:
2017-04-24 Shg/Hk
Replacing:
KTR-N dated 2013-06-10
Verified:
2017-04-24 Shg
Replaced by:
Components of BoWex-ELASTIC
®
, type HEW compact
Component
Quantity
Description
1
1
Elastomer part
2
1
Hub
4
1
Coupling flange
5
see table 3
Cap screws DIN EN ISO 4762
7
2
Setscrews DIN EN ISO 4029

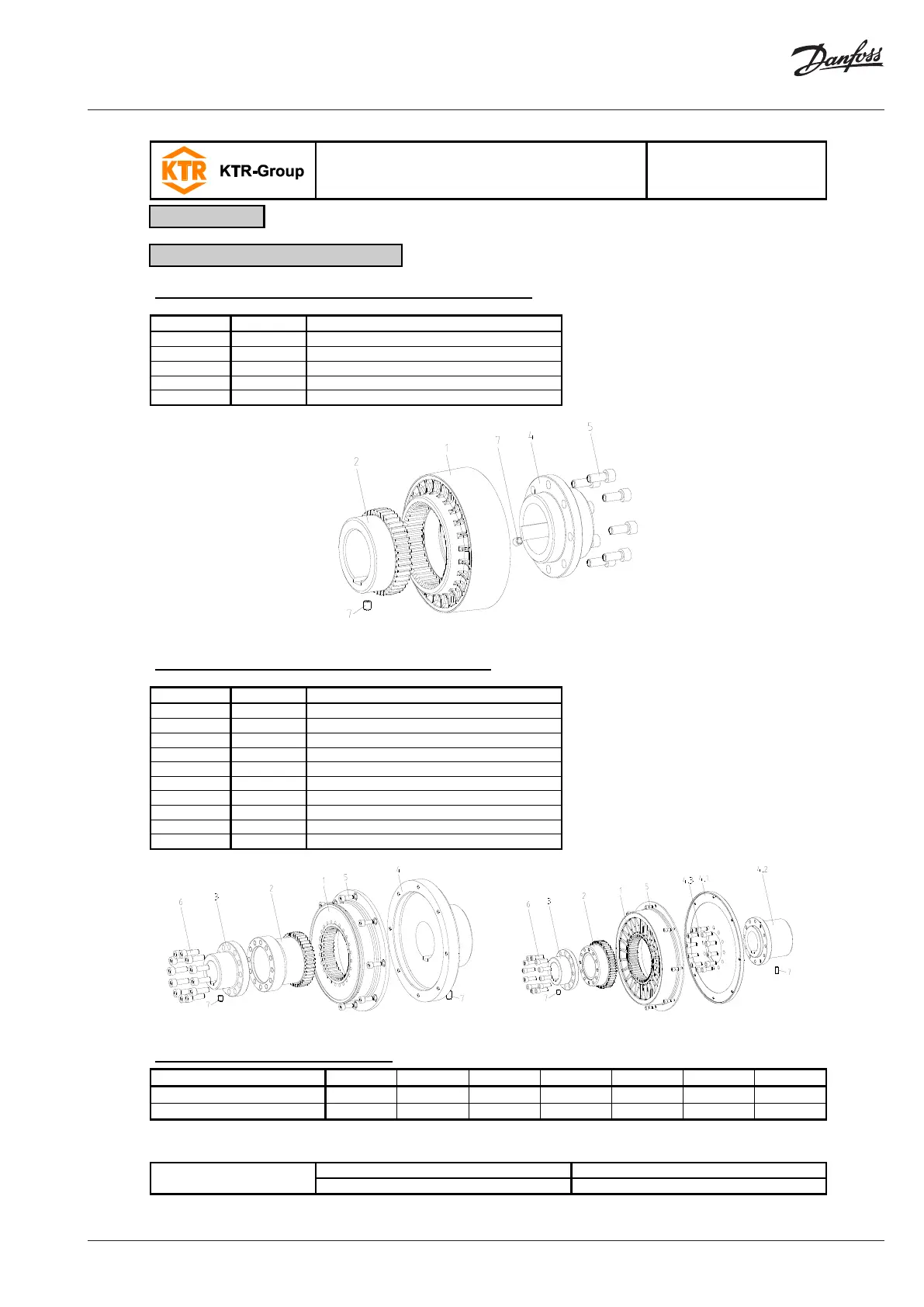

Illustration 9: BoWex-ELASTIC
®
type HEW Compact
Components of BoWex-ELASTIC
®
, type HEW-ZS
Component
Quantity
Description
1
1
Elastomer part
2
1
Hub spec.
3
1
Intermediate flange hub
4
1
Coupling flange
4.1
1
Additional flange
4.2
1
Flange hub
4.3
see table 5
Cap screws DIN EN ISO 4762
5
see table 1
Cap screws DIN EN ISO 4762
6
see table 5
Cap screws DIN EN ISO 4762
7
2
Setscrews DIN EN ISO 4029
Illustration 10: BoWex-ELASTIC
®
type HEW-ZS (size 48 to G 80)
Illustration 11: BoWex-ELASTIC
®
type HEW-ZS (size 100 to G 125)
Table 6: Cap screws DIN EN ISO 4762
Size
48
65
80
G 80
100
125
G 125
Quantity z (component 4.3)
-
-
-
-
15
12
12
Quantity z (component 6)
8
12
12
12
12
12
12
4 Assembly
4.1 Components of the couplings
