Danfoss DWH 200 User Manual

7
VMBNB72J

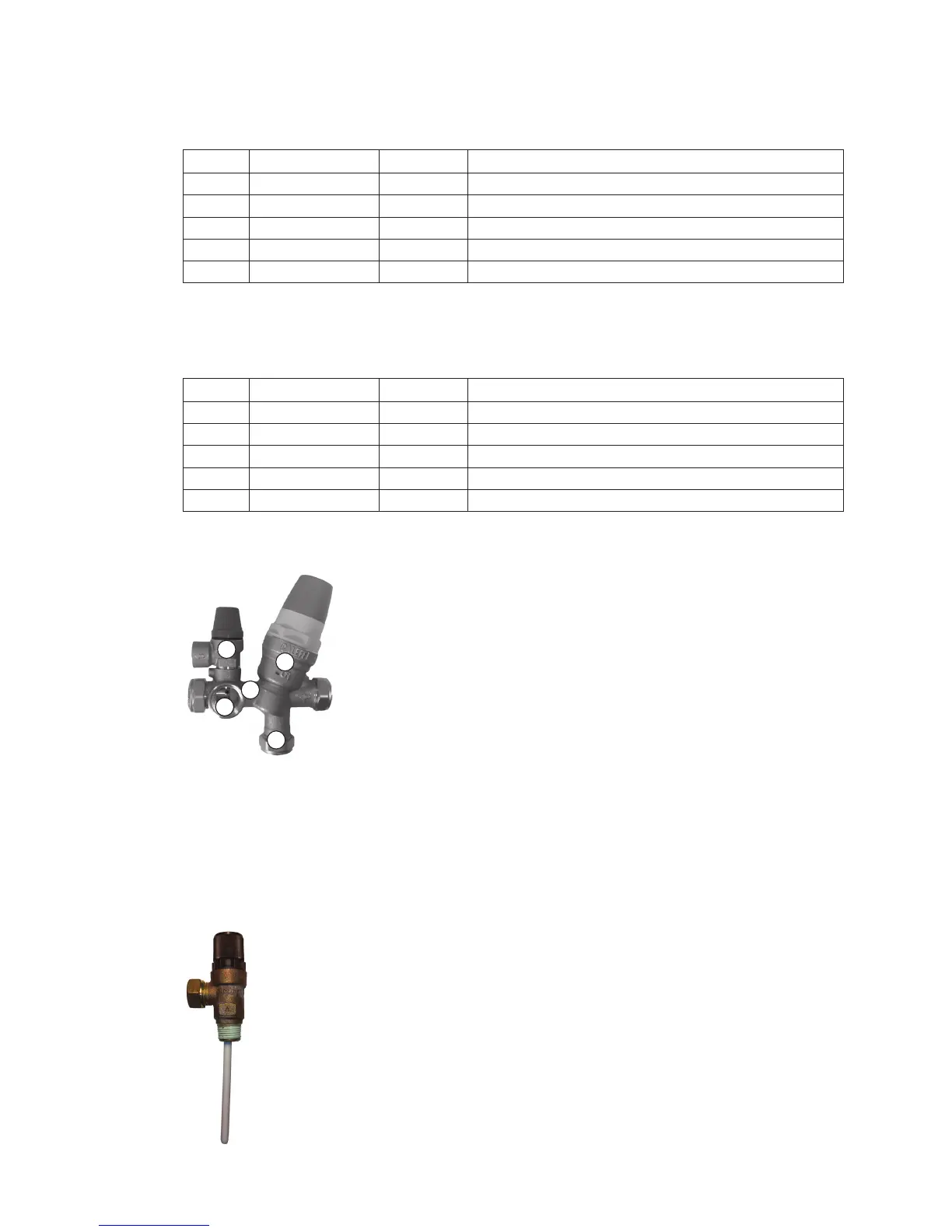

Piping installation1.4
Unvented package DHP and DWH2001.4.1
Danfoss code reference UNV0180.
Package contents:
Position Danfoss code
Number
Description
2 FITT0050 1 Expansion vessel 12 Litre
- FITT0052 1 Expansion vessel bracket
3 FITT0053 1 Flexible hose
- FITT0001 1 Tundish 15x22mm
5 FITT0054 1 Unvented manifold assembly
Unvented package DWH3001.4.2
Danfoss code reference UNV0300.
Package contents:
Position Danfoss code
Number
Description
2 FITT0051 1 Expansion vessel 19 Litre
- FITT0052 1 Expansion vessel bracket
3 FITT0053 1 Flexible hose
- FITT0001 1 Tundish 15x22mm
5 FITT0054 1 Unvented manifold assembly
Unvented manifold assembly1.4.3
E
A
B
C
D
Unvented manifold assembly.Figure 3.
Position Name
A Pressure reducing valve
B Non-return valve
C CW to house
D To expansion vessel
E Safety relief valve
Temperature and pressure relief valve1.4.4
Factory fitted temperature and pressure relief valveFigure 4.
