Configuring the ECL 2000
EY.65.H4.02
26
Power supply
230 V AC
24 V AC
24 V AC
Pre-programmed applications
1
1 – 14 1 – 17

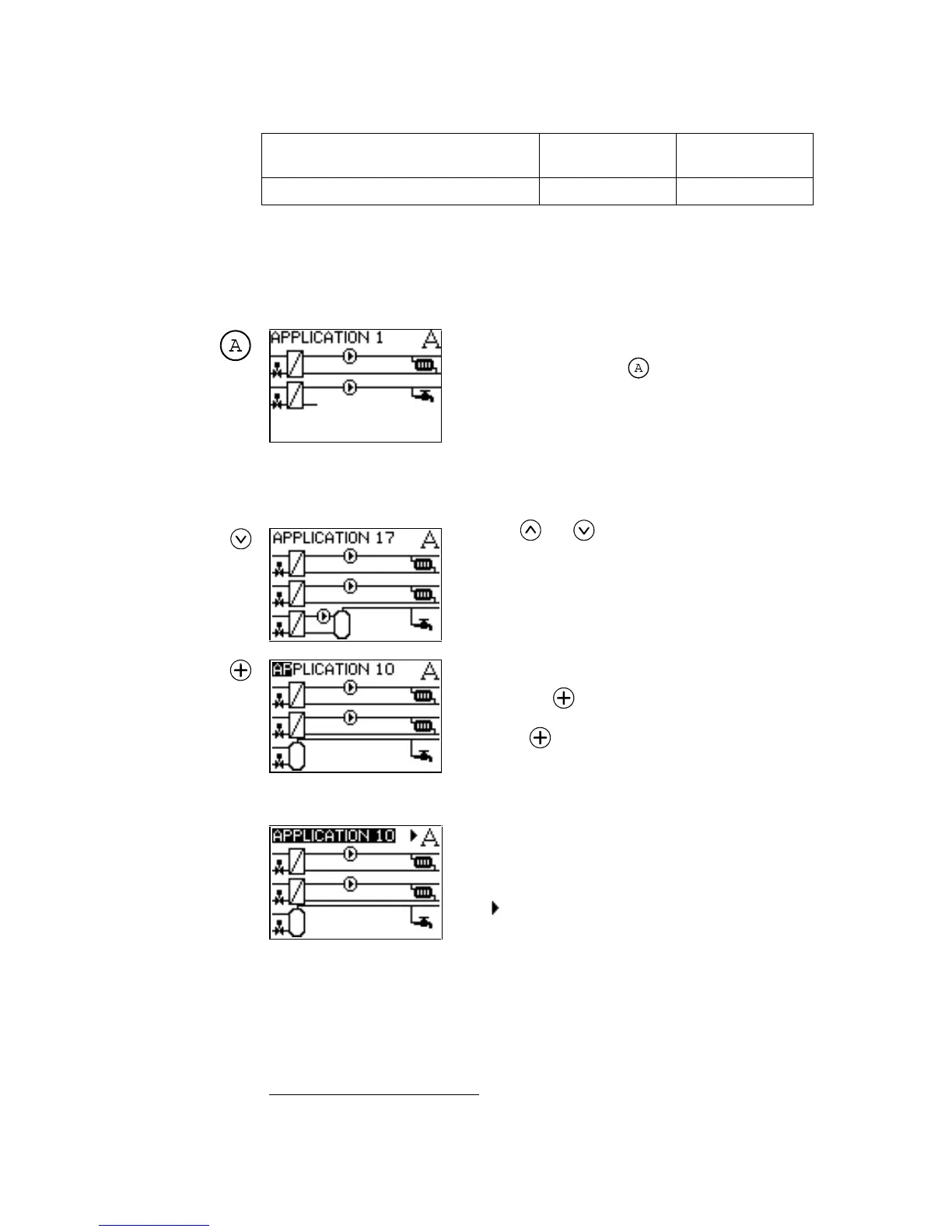

8.3 Selecting an Application
This section explains how to select one of the ECL 2000’s pre-programmed applica-
tions. For an overview of available applications, see page 34.
To select an application:
1. Press the front panel
button.
If no application has been selected yet, the ECL 2000
displays the picture Application 1. However, if an ap-
plication has already been selected, the picture of this
application is displayed. In this case, the picture’s title
is inverted, i.e. displayed in light characters on a dark
background.
2. Use and
to browse through available appli-
cations.
Each application picture shows a diagram of the system
configuration. Refer to the ECL 2000 Installation Guide
(ref. [2]) for system diagrams offering additional detail.
When you have found the application you need:
3. Keep the
button depressed for a few seconds.
While the
button is active, the picture’s title (in the
example “APPLICATION 10”) is inverted, one charac-
ter at a time, until the whole title is displayed in light
characters on a dark background.
When all the characters of the title are inverted, this
indicates that the controller is configured to use this
application.
The
symbol appears briefly, indicating that you can
access further configuration pictures. After a moment,
the controller automatically displays the first configura-
tion picture
(see next page).
1
See page 34 for an overview of ECL 2000 applications
