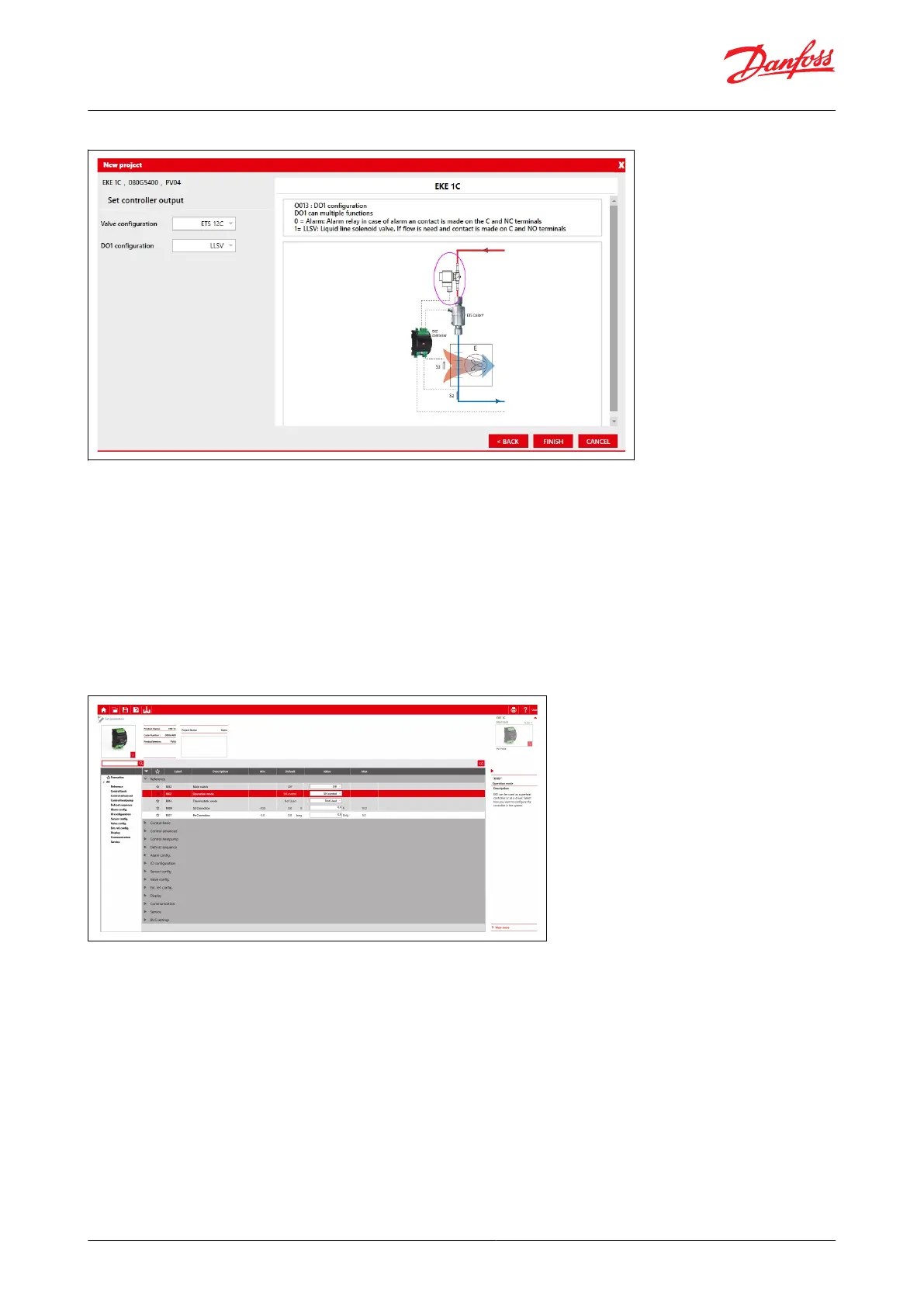

Figure 46: Conguration using KoolProg wizard
4.2.3 KoolProg Set parameters menu
The main menu is used to get a conguration le with the desired settings that can be uploaded to EKE 1x devices,
you can customize the parameter according to your specic application. The parameters are organized in parameter
groups. Also, you can use the search box to search for a parameter, however Search feature will only display the
parameters relevant to your settings. Example I035, I034 min max external voltage reference only appears if you
select R102 as 'Valve driver' and I033 as 'Voltage to OD'

NOTE:
The parameters for various applications are illustrated in the conguration section
Figure 47: koolprog main menu, example EKE 1C
© Danfoss | Climate Solutions | 2022.06 BC398828796060en-000101 | 35
Superheat controller, Type EKE 1A, 1B, 1C, 1D
