4.8.1 Control Terminal Types

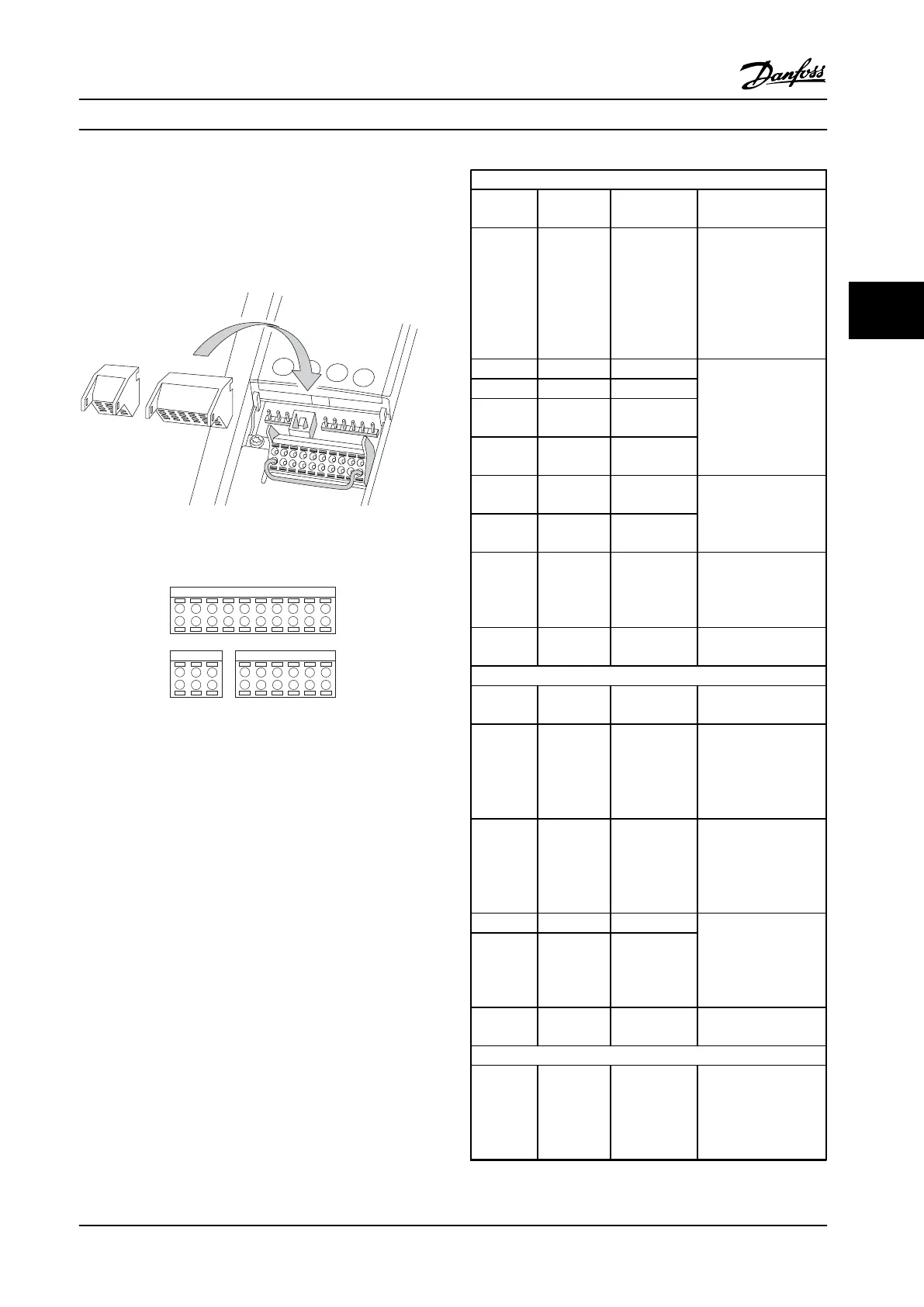

Figure 4.7 and Figure 4.8 show the removable adjustable
frequency drive connectors. Terminal functions and default
settings are summarized in Table 4.2.
Figure 4.7 Control Terminal Locations
12 13 18 19 27 29 32 33 20 37
39 42 50 53 54 55
61 68 69
130BB931.10
1
2 3
Figure 4.8 Terminal Numbers
•
Connector 1 provides four programmable digital
inputs terminals, two additional digital terminals
programmable as either input or output, a 24 V
DC terminal supply voltage, and a common for
optional customer supplied 24 V DC voltage
•
Connector 2 terminals (+)68 and (-)69 are for an
RS-485 serial communication connection
•
Connector 3 provides two analog inputs, one
analog output, 10 V DC supply voltage, and
commons for the inputs and output
•
Connector 4 is a USB port available for use with
the MCT 10 Set-up Software
Digital Inputs/Outputs
Terminal Parameter Default
setting
Description
12, 13 - +24 V DC 24 V DC supply
voltage. Maximum
output current is
200 mA total for all
24 V loads. Usable for
digital inputs and
external transducers.
18 5-10 [8] Start
Digital inputs.
19 5-11 [10] Reversing
32 5-14 [39] Day/Night
Control
33 5-15 [0] No
operation
27 5-12 [2] Coast
inverse
Selectable for either
digital input or
output. Default setting
is input.
29 5-13 [0] No
operation
20 - Common for digital
inputs and 0 V
potential for 24 V
supply.
37 - Safe Torque
Off (STO)
(Optional) Safe input.
Used for STO
Analog Inputs/Outputs
39 -
Common for analog
output.
42 6-50 [100] Output
frequency
Programmable analog
output. The analog
signal is 0–20 mA or
4–20 mA at a
maximum of 500 Ω.
50 - +10 V DC 10 V DC analog
supply voltage. 15 mA
maximum commonly
used for potenti-
ometer or thermistor.
53 6-1* Reference Analog input.
Selectable for voltage
or current. Switches
A53 and A54 select
mA or V.
54 6-2* Feedback
55 -
Common for analog
input.
Serial Communication
61 -
Integrated RC filter for
cable shield. ONLY for
connecting the shield
when experiencing
EMC problems.
Electrical Installation Instruction Manual
MG16E322 Danfoss A/S © Rev. 2014-04-10 All rights reserved. 19
