91 92 93
F1
gL/UR
L
1
L
2
PE
Motor
U V W PE
96 97 95 93
FC 103
M MM
* * *
Cables
Ltot. max. = 40 mm
12
18
55
27
Motors insulation class B minimum
Alarm
54
Start
130BD823.10

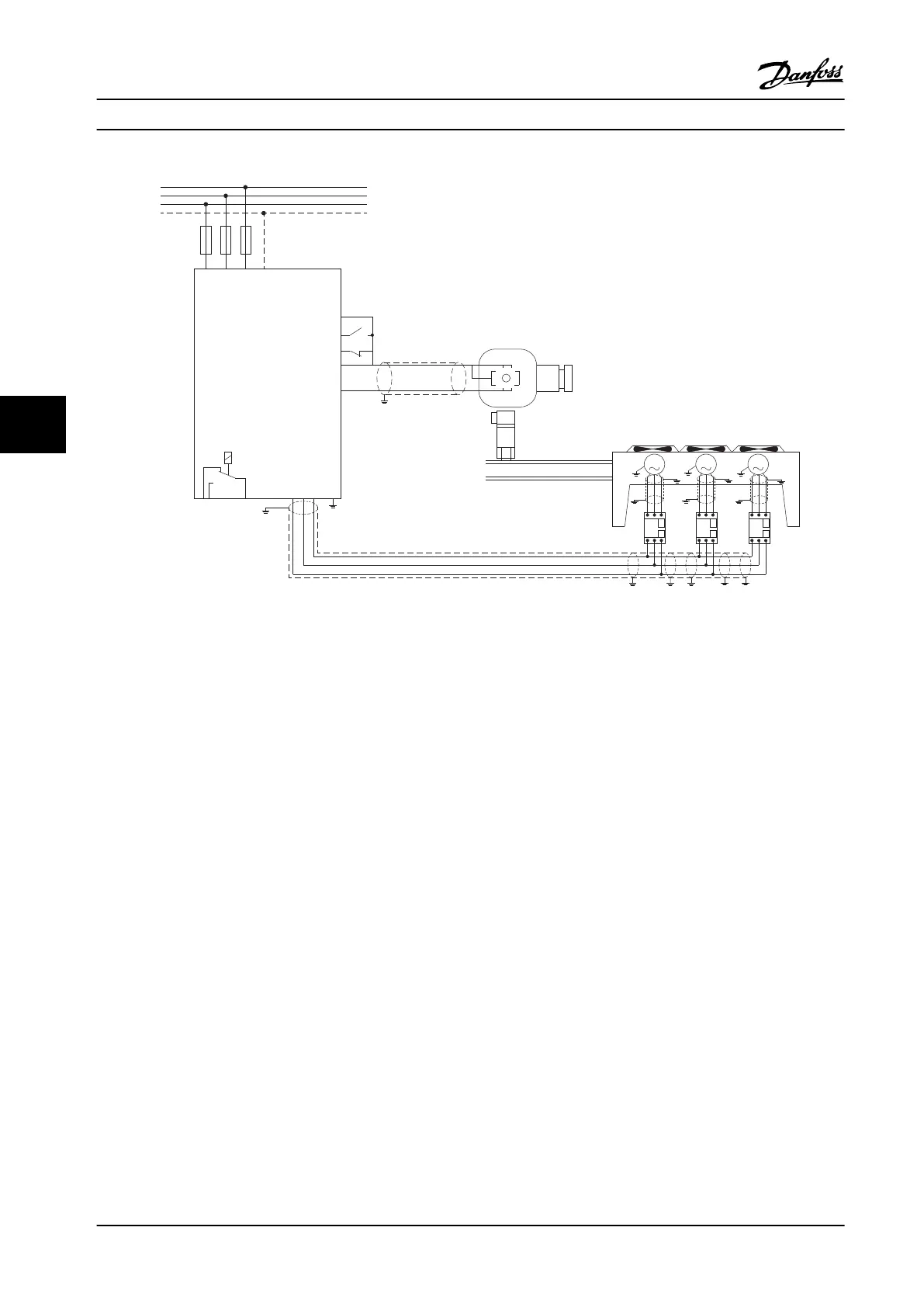

Figure 6.3 Pressure Control in Closed-loop – Stand Alone System – Single Fan or Pump/Multiple Fans or Pumps in Parallel
Recommended motor cable types are:
•
LIYCY
•
Lapp Oelflex 100CY 450/750 V
•
Lapp Oelflex 110CY 600/1000 V
•
Lapp Oelflex SERVO 2YSLCY-J9
•
Lapp Oelflex SERVO 2YSLCYK-J9
•
HELU TOPFLEX-EWV-2YSLCY-J
•
HELU TOPFLEX-EWV-UV 2YSLCYK-J
•
HELU TOPFLEX-EWV-3PLUS 2YSLCY-J
•
HELU TOPFLEX-EWV-UV-3PLUS 2YSLCYK-J
•
Faber Kabel EWV-Motorleitung 2YSL(St)Cyv
•
nexans MOTIONLINE RHEYFLEX-EWV 2XSLSTCY-J
Application Set-up Examples Instruction Manual
