Danfoss FC 301 User Manual

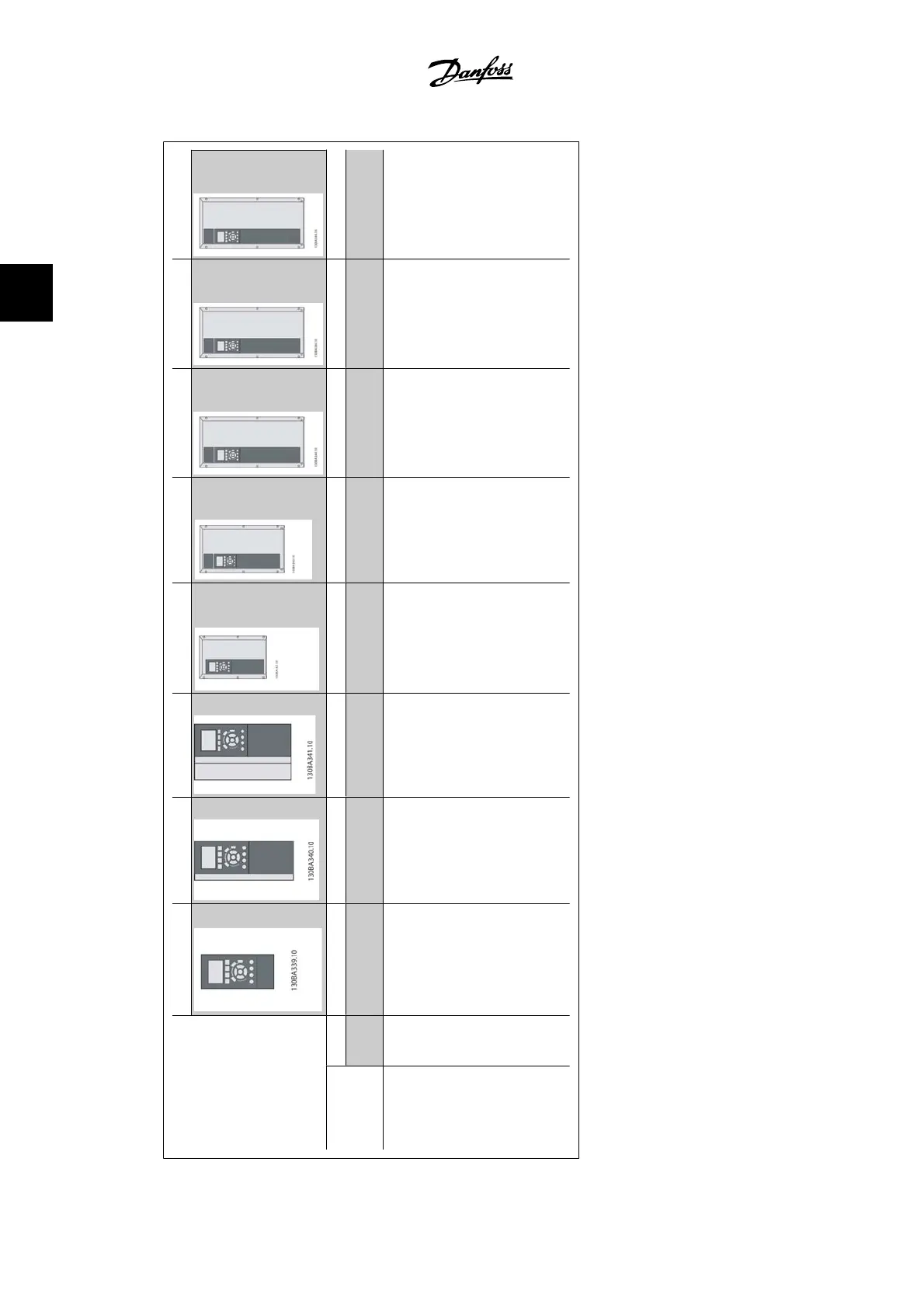

Enclosure type A1 A2 A3 A5 B1 B2 C1 C2 Enclosure protection
IP 20/21 20/21 20/21 55/66 21/55/66 21/55/66 21/55/66 21/55/66 NEMA Chassis/Type 1 Chassis/
Type 1
Chassis/
Type 1
Type 12/Type 4X Type 1/Type 12 Type 1/Type 12
Rated power
0.34-2 hp [0.25-1.5 kW] (200-240 V) 0.5-2 hp [0.37-1.5 kW] (380-480 V)
0.34-4 hp [0.25-3 kW] (200-240 V) 0.5-5 hp [0.37-4 kW] (380-480/ 500 V) 1-5 hp [0.75-4 kW] (525-600 V)
5 hp [3.7 kW] (200-240 V) 5.5-7.5 kW (380-480/ 500 V) 7.5-10 hp [5.5-7.5 kW ] (525-600V)
0.34-5 hp [0.25-3.7 kW ] (200-240 V) 0.5-10 hp [0.37-7.5 kW] (380-480/ 500 V) 1-10 hp [0.75 -7.5 kW] (525-600 V)
7.5-10 hp [5.5-7.5 kW] (200-240 V) 15-20 hp [11-15 kW] (380-480/ 500 V)
15 hp [11 kW] (200-250 V) 25-30 hp [18.5-22 kW] (380-480/ 500 V)
20-30 hp [15-22 kW] (200-240 V) 40-60 hp [30-45 kW] (380-480/ 500 V)
40-50 hp [30-37 kW] (200-240 V) 75-100 hp [55-75 kW] (380-480/ 500 V)
3. How to Install
VLT
®
AutomationDrive FC 300 Instruction
Manual
14 MG.33.A9.22 - VLT is a registered Danfoss trademark
3

Danfoss FC 301 Specifications

General

Type	AC Drive
Output frequency	0-1000 Hz
Enclosure rating	IP20, IP21, IP55
Control method	Sensorless vector control
Communication options	RS-485, CANopen, Profibus DP
Ambient temperature	-10°C to +50°C
Supply voltage	200-240 V, 380-500 V, 525-690 V
Protection class	IP20, IP21, IP55
Cooling method	Forced air
Relative humidity	5% to 95% (non-condensing)
Storage temperature range	-25 to 70 °C (-13 to 158 °F)
