2. Attach the motor cable to terminals 96 (U), 97 (V), 98 (W).
3. Connect to ground connection (terminal 99) on decoupling plate with screws from the
accessory bag.
4. Insert plug connectors 96 (U), 97 (V), 98 (W) (up to 10 hp [7.5 kW]) and motor cable
to terminals labeled MOTOR.
5. Fasten shielded cable to the decoupling plate with screws and washers from the acces-
sory bag.

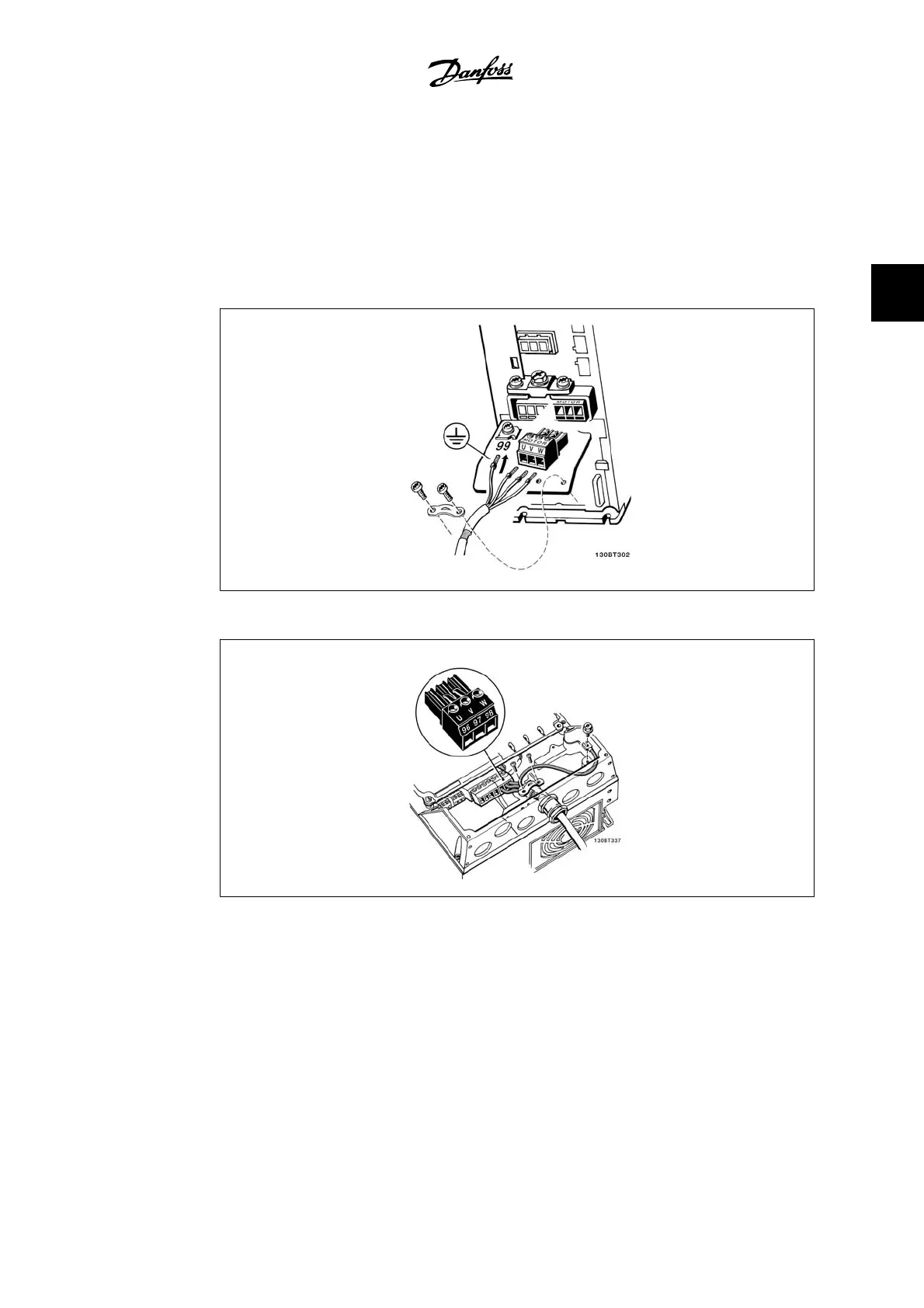

3.2: Motor connection for A1, A2 and A3
3.3: Motor connection for A5 (IP 55/66/NEMA Type 12) enclosure
VLT
®
AutomationDrive FC 300 Instruction
Manual
3. How to Install
MG.33.A9.22 - VLT is a registered Danfoss trademark 25
