Danfoss H1B 060 Service Manual

Ports and gauge Information
Port Size 060/080 Size 110/160 Size 210/250 Pressure obtained
L1, L2
7/8-14 UNF
Wrench: 3/8 in
1 1/16-12UN
Wrench: 9/16 in
1 5/16-12UN
Wrench: 5/8 in
10 bar [145 psi]
Case drain
M4, M5 9/16-18 UNF; Wrench (int. hex): 1/4 in
600 bar [8700 psi]
1)
X1, XA, XB 9/16-18 UNF; Wrench (int. hex): 1/4 in
100 bar [1450 psi]
2)
1)
Servo pressure rod end.
2)
X1 – Control pressure supply, hydraulic actuator. XA/XB – BPD, PCOR inactive at A/B.

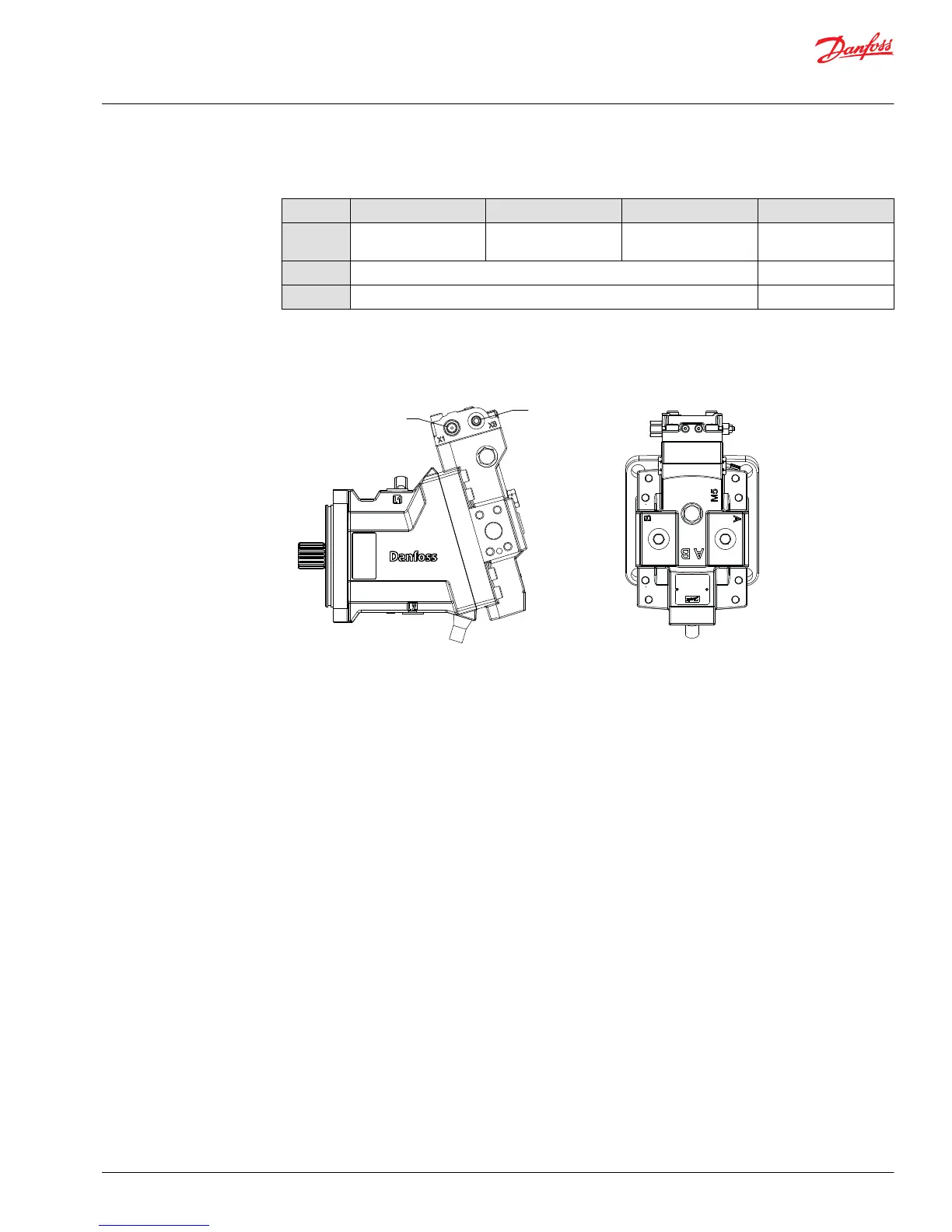

Port locations (hydraulic 2-position controls with PCOR; control specific ports only)
P108924
X1
XB
(Port XA
on reverse side)
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Pressure measurements
©
Danfoss | August 2018 AX00000025en-US0504 | 27
