Danfoss H1B 060

Loop flushing charge relief valve
Removal
1. Using a 24 mm hex wrench remove valve (L00**)
2. Remove and discard O-ring (L0050).
Do not disassemble valve. If you suspect malfunction, replace valve.
Assembly
1. Install new O-ring (L0050).
2. Using a 24 mm hex wrench, install valve (L00**). Torque to 67 N•m [49 lbf•ft].

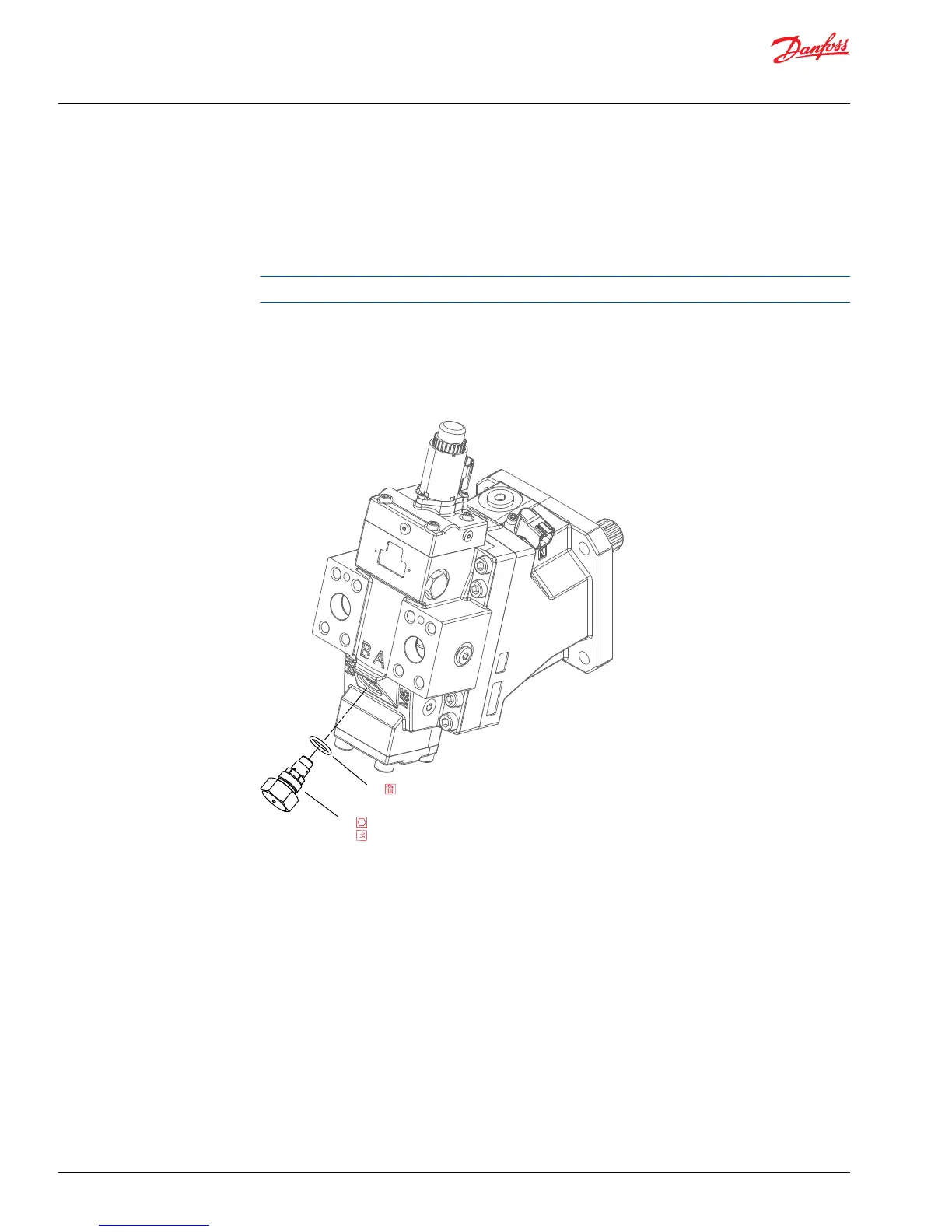

Loop flushing charge relief valve replacement
L0050
L00**
67 N•m [49 lbf•ft]
24 mm
