Maximum displacement limiter two-position controls
It is not necessary to remove the maximum displacement limiter unless it is being replaced.
Disassembly
Models with maximum displacement limiter: Remove screw (P0100) using a 6 mm internal hex, and
spacer (P0200).
Assembly

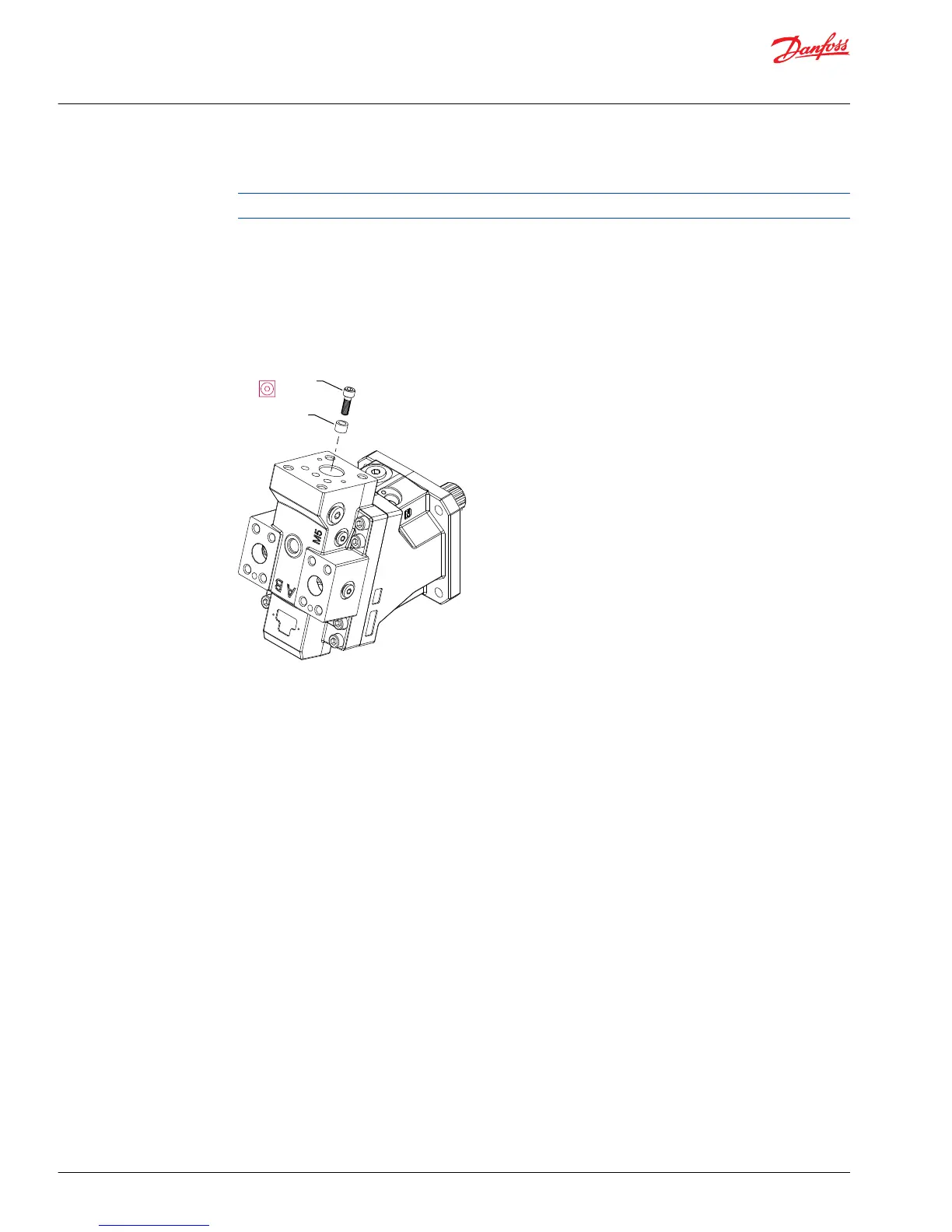

Maximum displacement limiter assembly
6 mm
P107 866E
P0200
P0100
1. Install spacer (P0200) and screw (P0100) using a 6 mm internal hex.
2. Torque screw to 37 N•m [28 lbf•ft].
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Minor repair
58 |
©
Danfoss | August 2018 AX00000025en-US0504
