Danfoss H1B 060 Service Manual

Hydraulic proportional actuator replacement
Removal
1. Remove three cap screws (B0050) using a 4 mm internal hex wrench.
2. Remove the actuator (B0010).
Inspection
Clean and inspect all machined surfaces for damage or wear. Replace parts if necessary.
Assembly

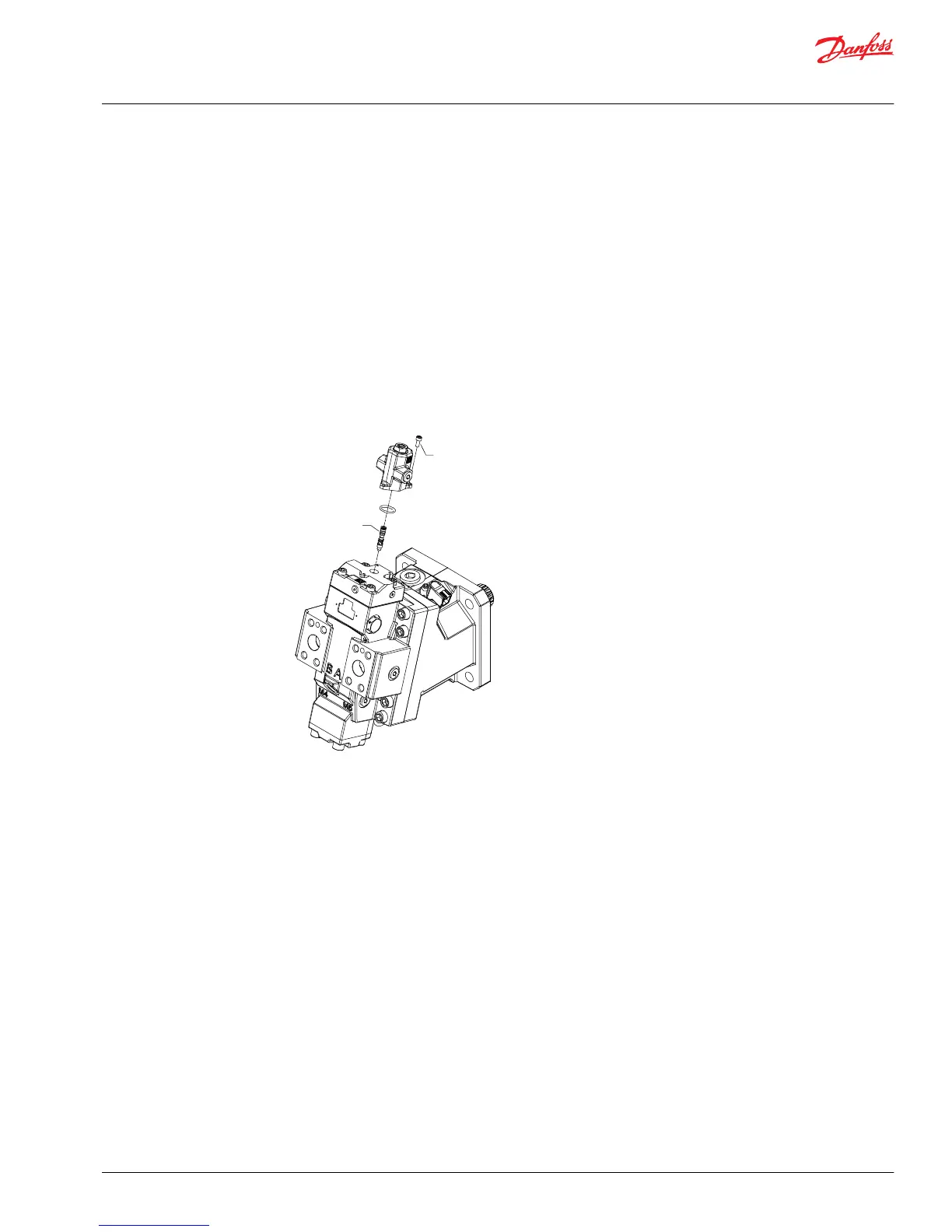

Replacing actuator
P108828
B0050
B0010
1. Install cap screws (B0050) using a 4 mm internal hex wrench and torque screws to 6 N•m [4 lbf•ft].
2. Test the motor for proper operation.
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Minor repair
©
Danfoss | August 2018 AX00000025en-US0504 | 43
