Electric proportional solenoid replacement
Removal
1. Disconnect electrical connection and remove three cap screws (B0050) using a 4 mm internal hex
wrench.
2. Remove the solenoid (B0010) and O-ring (B0035A). Discard the O-ring.
3. Remove valve spool (C0100).
Inspection
Clean and inspect valve spool and all machined surfaces for damage or wear. Replace parts if necessary.
Assembly
1. Lubricate and install valve spool (C0100).
2. Using petroleum jelly, lubricate and install new O-ring (B0035A).
3. Install cap screws (B0050) using a 4 mm internal hex wrench. Torque screws to 6 N•m [4 lbf•ft].
4. Reconnect electrical connections and test the motor for proper operation.

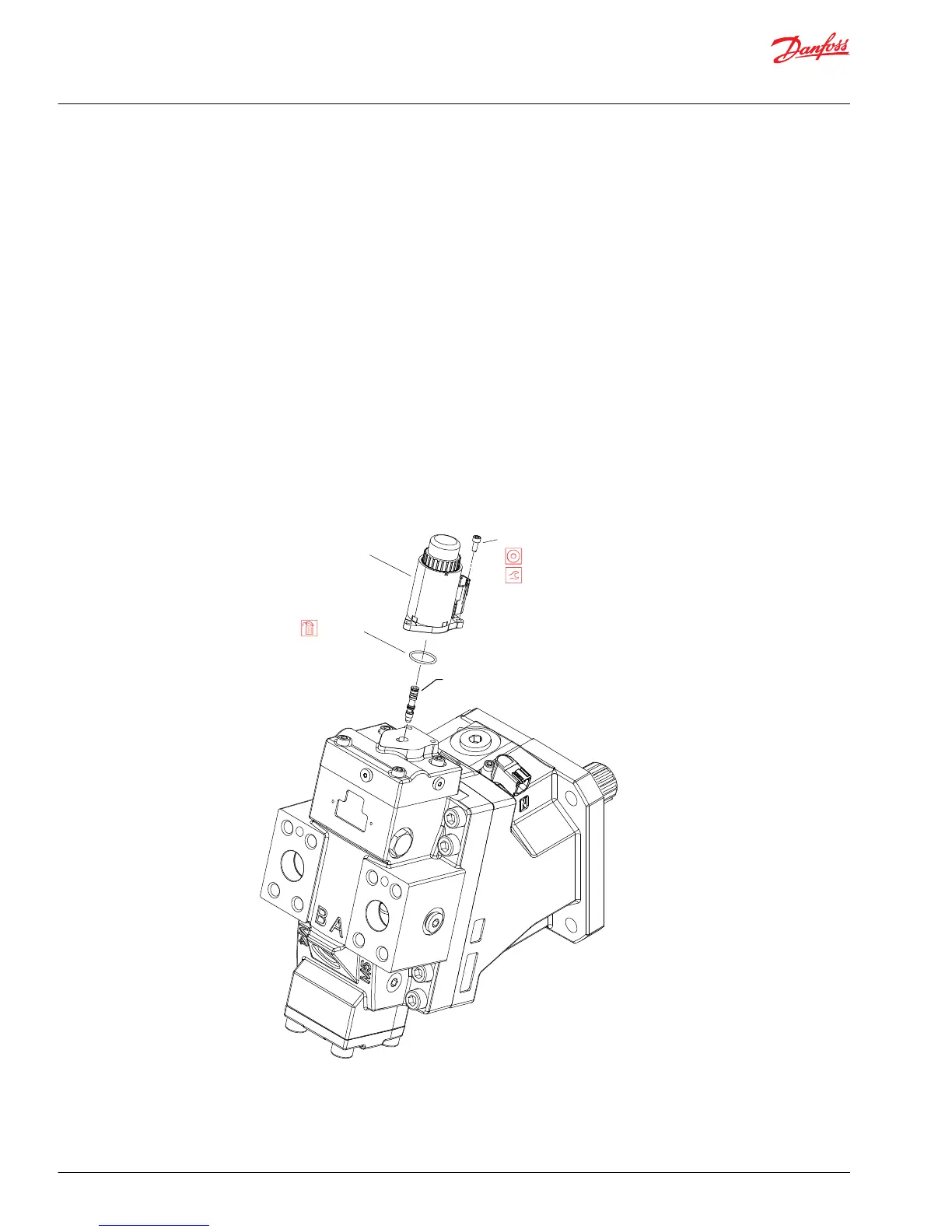

Replacing solenoid
B0010
4 mm
6 N•m [ 4 lbf•ft]
B0050
B0035A
C0100
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Minor repair
42 |
©
Danfoss | August 2018 AX00000025en-US0504
