Control module replacement
Removal
1. Remove four cap screws (C0110 and/or C0120). Refer to table for wrench sizes.
2. Remove control (C0010) from motor. Remove and discard gasket (C0130).
3. Proportional control only - using a magnet, remove spring seat (F0030) and spring (F0040).
Inspection
Clean and inspect the machined surfaces on the control and the endcap. If you find any nicks or
scratches, replace control or endcap. Inspect valve spool, washer, and spring. Replace if necessary.
Assembly

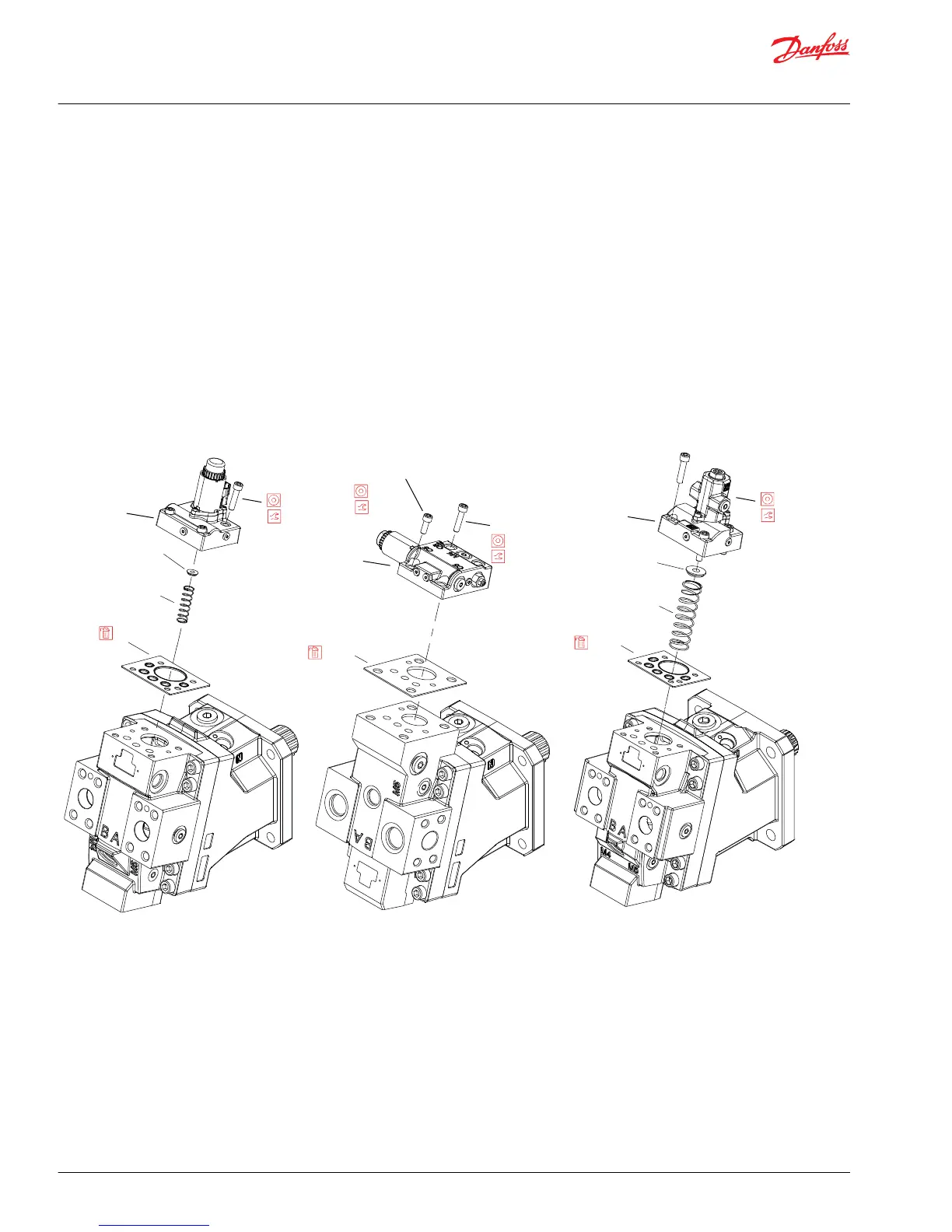

Control module removal/installation
C0010
Proportional
control
C0110 (4X)
F0030
F0040
C0130
6 mm
C0110 (2X)
C0010
2 position
control
C0120 (2X)
10 mm
C0130
Electric proportional control
Two position control
10 mm
115 Nm [85 lbf•ft]
37 Nm
[27 lbf•ft]
115 Nm
[85 lbf•ft]
Hydraulic proportional control
C0110 (4X)
6 mm
37 Nm
[27 lbf•ft]
C0010
Proportional
control
F0030
F0040
C0130
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Minor repair
44 |
©
Danfoss | August 2018 AX00000025en-US0504
