Danfoss H1B 060 Service Manual

Ports and Gauge Information

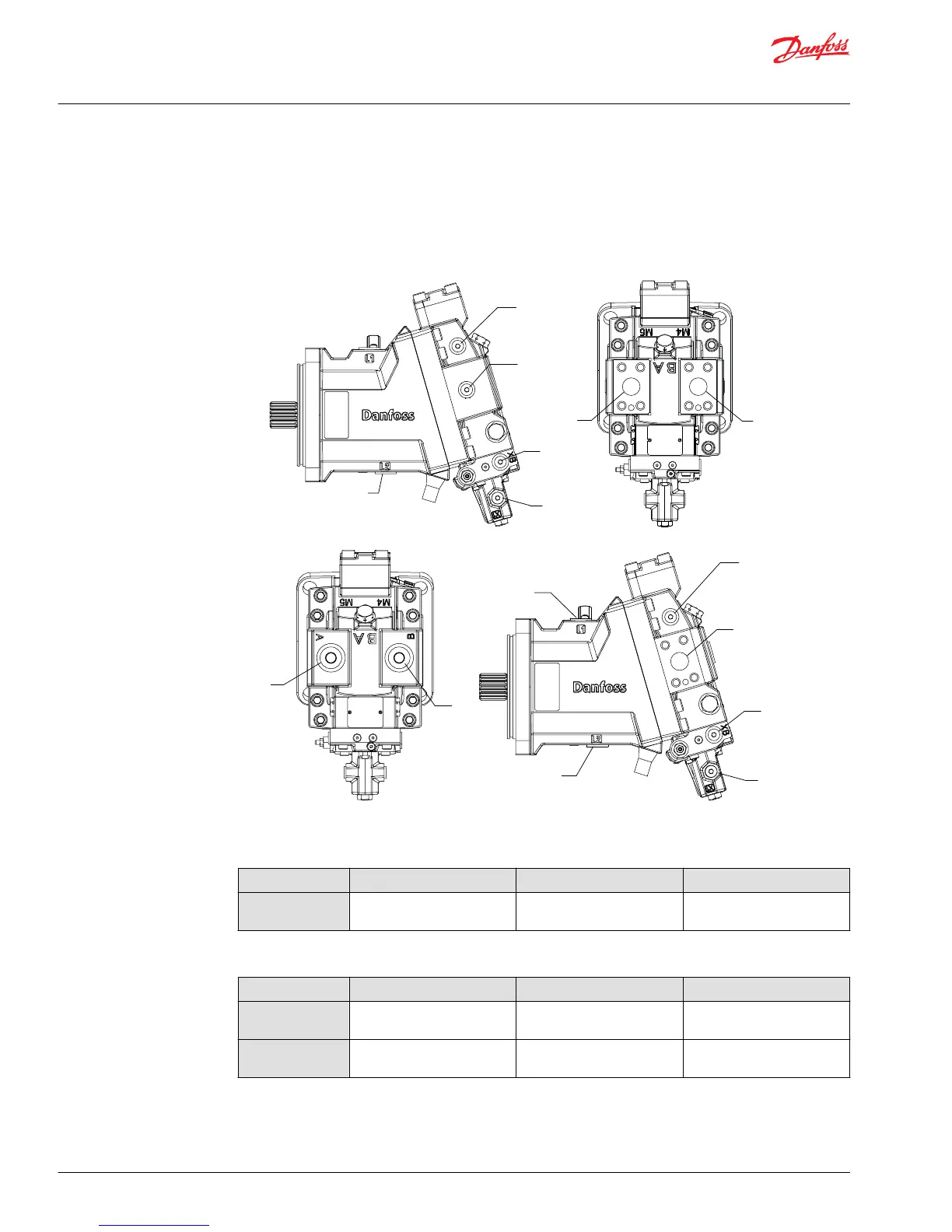

The following drawing with accompanying table show the port locations and gauge sizes needed for
installation.
Ports locations (proportional control)
L2
MB
MA
L1
M5
System Port A
P108829
(System Port B
on reverse side)
(M4 on reverse side)
Radial Ported Endcap
Axial Ported Endcap
System
Port B
System
Port A
M5
L2
MA
(M4 on
reverse side)
(MB on
reverse side)
X1
XB
(Port XA
on reverse side)
X1
XB
(Port XA
on reverse side)
System split flange boss ports, A/B: Code 62 per ISO 6162, Type 1
Port Size 060 Size 080, 110 Size 160, 210, 250
A, B
3/4 in; Thread: M10 x 1.5
min. 18 mm [0.71 in]
1 in; Thread: M12 x 1.75
min. 23 mm [0.91 in]
1 1/4 in; Thread: M12 x 1.75
min. 23 mm [0.91 in]
Radial/Axial end-cap ports
Port Size 060 Size 080, 110, 160, 210, 250 System pressure obtained
MA, MB (Radial)
7/8-14 UNF
Wrench (int. hex): 3/8 in
1 1/16-12UN
Wrench (int. hex): 9/16 in
600 bar [8702 psi]
MA, MB (Axial)
7/8-14 UNF
Wrench (int. hex): 3/8 in
9/16-18 UNF
Wrench (int. hex): 1/4 in
600 bar [8702 psi]
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
Pressure measurements
26 |
©
Danfoss | August 2018 AX00000025en-US0504
