Danfoss H1B 060 Service Manual

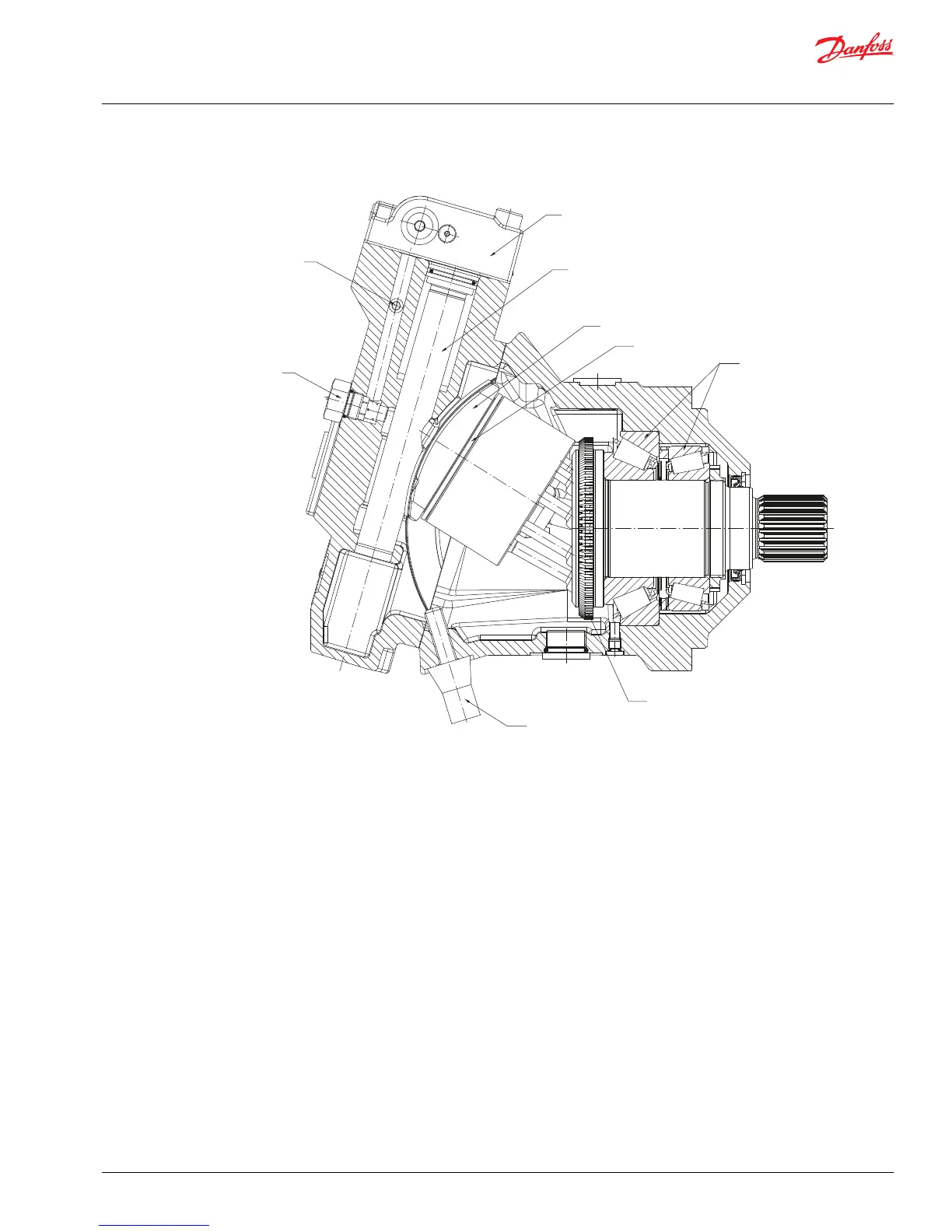

Cross-section of H1 motor with electric two-position control
P005 918
1
2
3
4
7
6
5
9
8
1. Differential servo piston
2. Valve segment
3. Bearing plate
4. Tapered roller bearing
5. Loop flushing relief valve
6. Loop flushing shuttle spool
7. Electric two-position control
8. Minimum displacement limiter
9. Speed ring (optional)
Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3
