Danfoss KP 61 User Manual

4 DKRCC.PI.CA0.C1.22 / 520H8304 © Danfoss A/S (AC-MCI / jmn), 2013-11

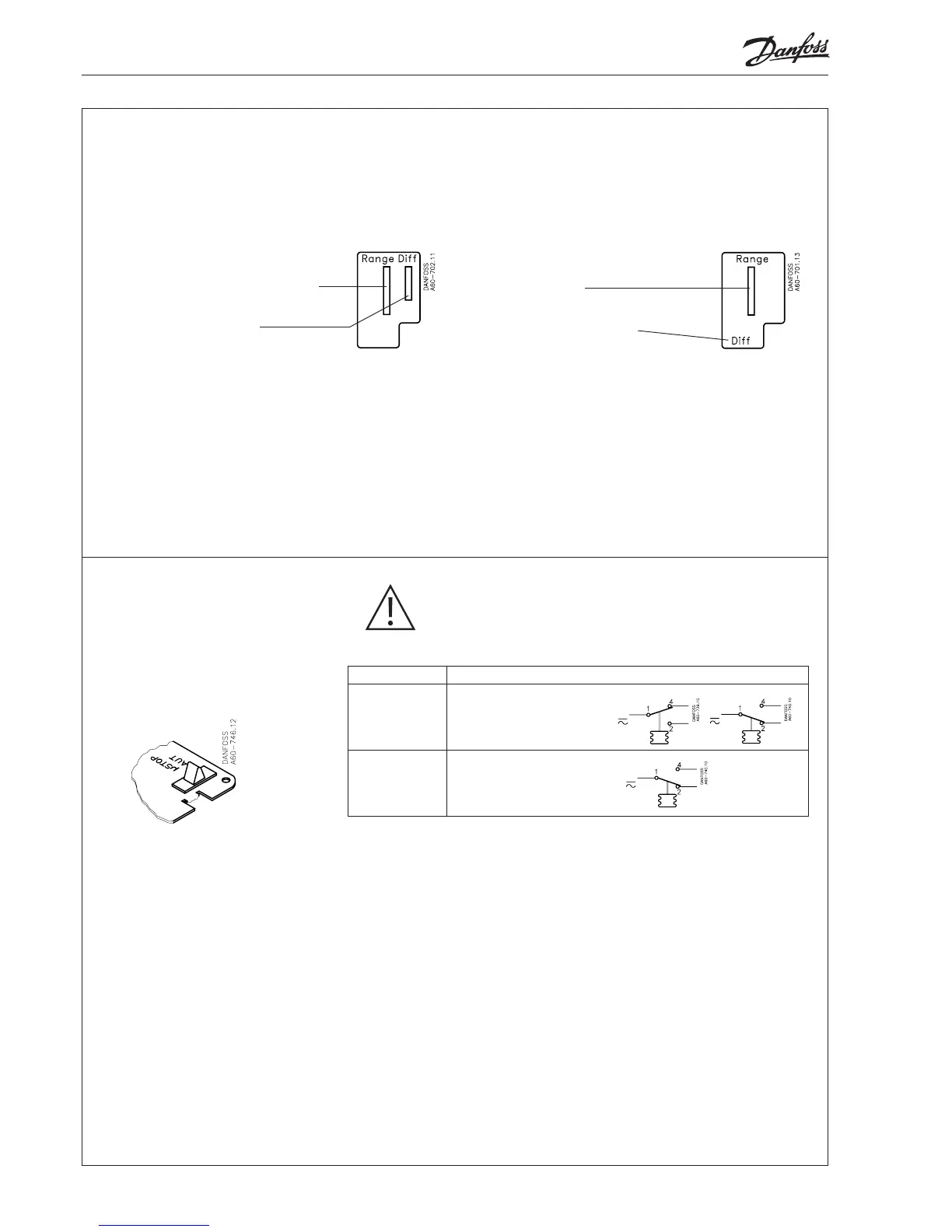

Switch position Contacts position
Aut. Automatic control operation
µ Stop 1 and 2 are closed
1. Adjust range spindle to desired 1. Adjust range spindle to desired
HIGH SET POINT (use hand knob) LOW SET POINT
2. Adjust dierential spindle to 2. DIFFERENTIAL is xed.
desired DIFFERENTIAL Value printed on scale plate
Setting
For KP 61, KP 62, KP 63, KP 68, KP 69, KP 71, KP 61 and KP 71 w/man. reset
KP 73, KP 75, KP 77, KP 79 and KP 81 w/auto reset
Note:
To nd correct dierential, see “Determination of dierential”
HIGH SET POINT minus DIFFERENTIAL equals LOW SET POINT HIGH SET POINT minus DIFFERENTIAL equals LOW SET POINT
Example: Example:
HSP – DIFF. = LSP HSP – DIFF. = LSP
7 °C – 5 °C = 2 °C 3 °C – 3 °C = 0 °C
(45 °F) (10 °F) (35 °F) (37.4 °F) (5.4 °F) (32 °F)
KP w/ hand switch CAUTION:
 • Handswitchbreakscircuitbymicrocontactgab.
 • Usehandswitchforserviceonrefrigerationpartsonly
 • Cutoutmainswitchbeforeserviceonelectricalparts
For KP w/ adsorption charge (KP 71, KP 73, KP 75, KP 77, KP 79, KP 81):
The dierential will be HSP less LSP
Example: HSP – LSP = DIFF.
7 °C – 5 °C = 2 °C
(45 °F)(35 °F) (10 °F)
Note:
(Load Option A) (Load Option B)
CUT-IN = HSP or CUT-IN = LSP
CUT-OUT = LSP CUT-OUT = HSP
See “Wiring”
