User Guide PFM 1000
4 | VU.E2.G1.02 © Danfoss | 2019.02
PFM 1000 application
installation & Main Display

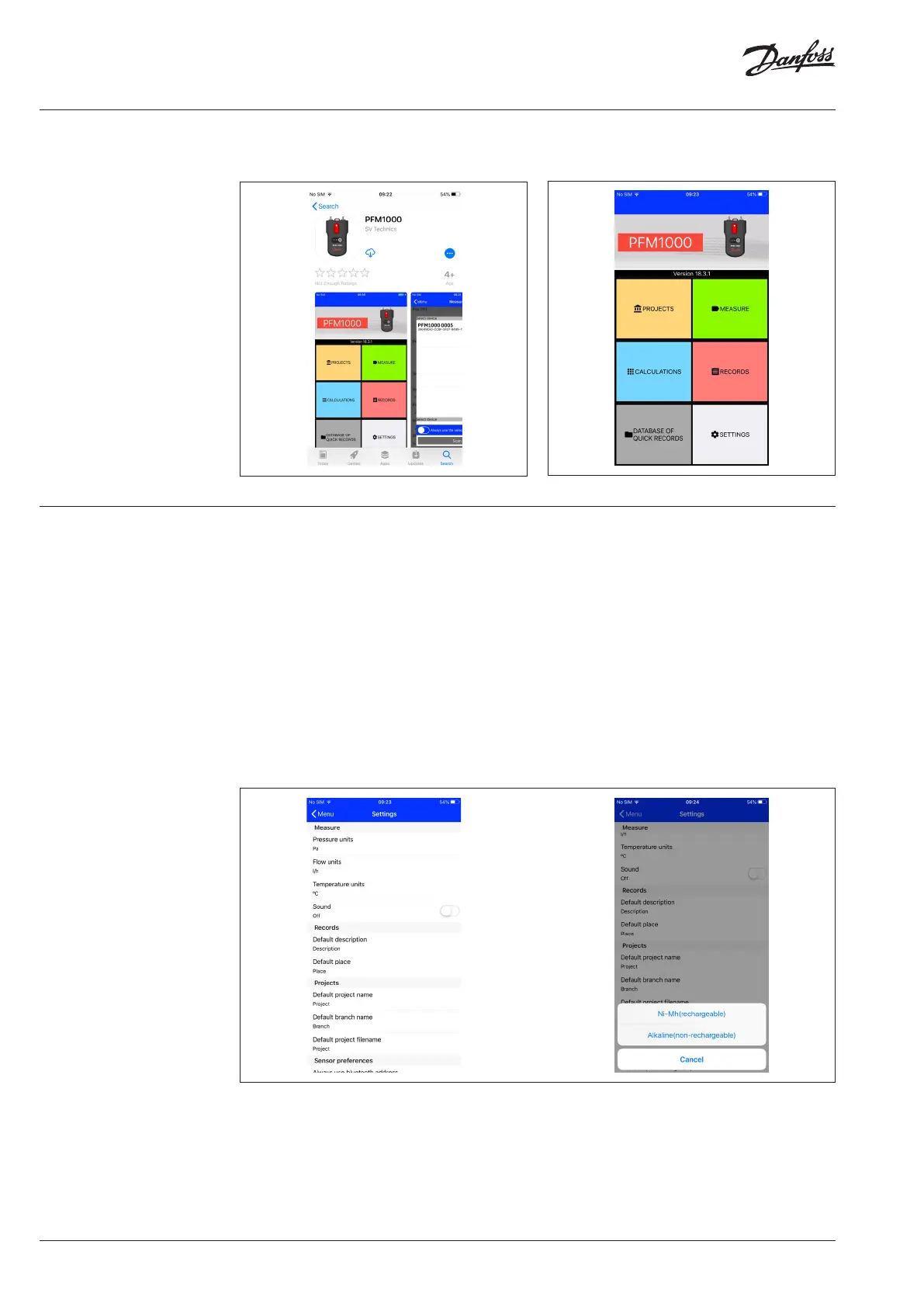

Find in App Store the PFM 1000 application and
install it in your mobile device.
Start the PFM 1000 application.
Application Setup Press the Setup button in the introductory window where you can set up the initial features of the
application.
In the Measuring section, these are units for measuring the pressure, flow and temperature. Further,
you can turn on/off here the sound for the whole PFM 1000 application.
Turn on/off the sound in the PFM 1000 application by pressing the Sound button.
In the Records section, you can enter Initial description, Initial record location.
In the Projects section, you can enter Initial project name, Initial branch name, Initial project file name.
In the Sensor preferences, the Bluetooth address of the pressure unit is stored after activating the
Always use the selected device option in Measuring. After the application installation is complete,
this item remains empty. When you will be measuring with the automatic connection of one unit
without searching and you will want to connect another pressure unit, you must delete this field.
Once the Battery type is selected, enter the used AAA battery type in the pressure unit. This setup is
very important for the correct calculation a display of the battery condition indication. You can find
the battery type on the battery. Almost all rechargeable batteries sized AAA are of the NiMH type.
Well-known and of high quality are Eneloop batteries from Panasonic.
