14
Software Parameter Set-up
Service Tool
Interface
Limit Drum Speed

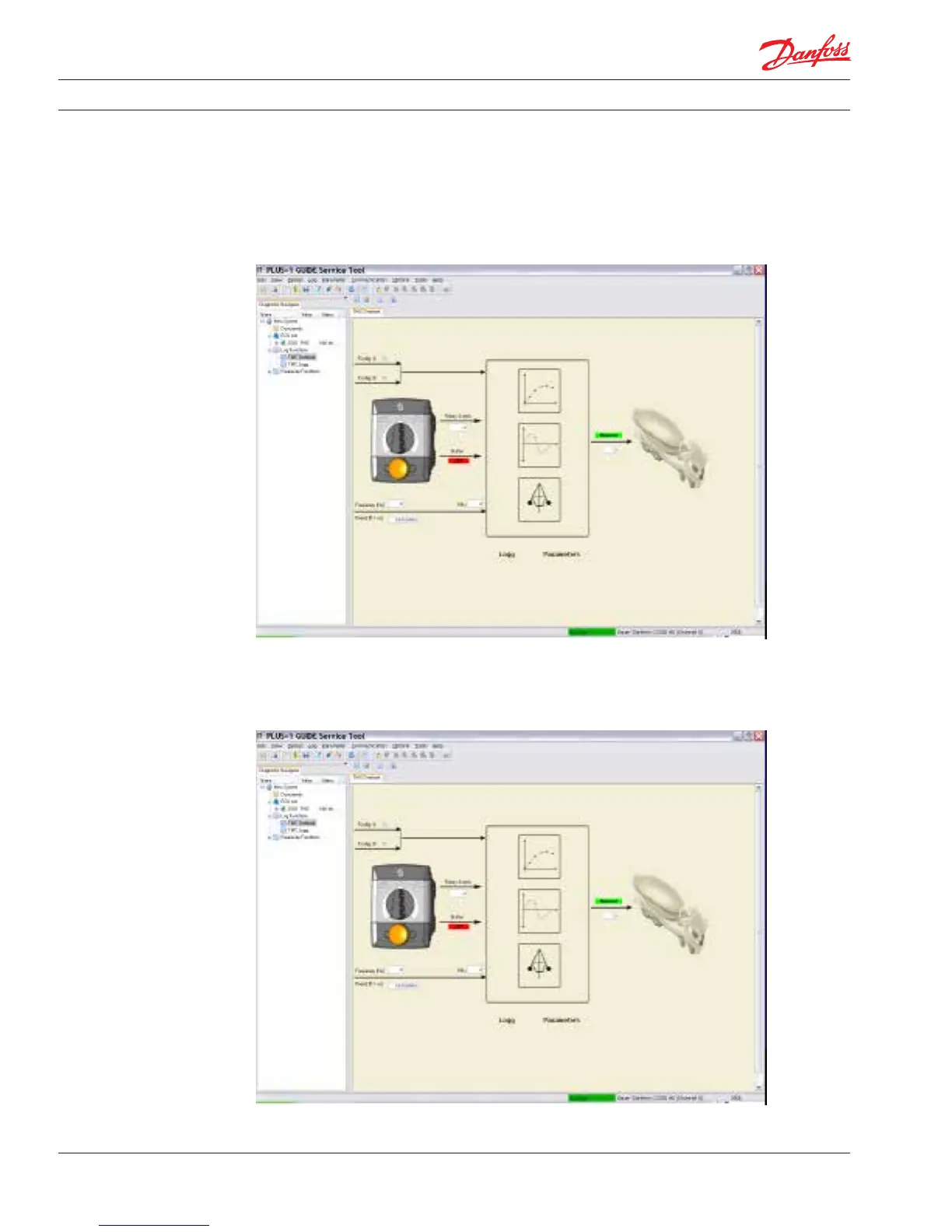

This screen shows an overview of the system, inputs to the application and output signals to the
drum. It also shows what system (as set by the configuration pins) is connected: 0, 1, 2, or 3. There are
also hyperlinks to parameter settings and the log page. If system 1 is connected it takes you to the
system 1 parameter setting.
TMC System Overview
This screen is a simple flow chart of the system where you can follow a signal from input to
output. Most of the images are hyperlinked to parameter setting pages.
