Danfoss PVG 32 Technical Information

PVB is with LS
A/B
shuttle valve Code number 157B.... PVB is without LS
A/B
shuttle valve
7074 7073 7072 7071 - -
4-way, 3-position
Closed neutral position, PC → B
- 7050 7051 7052 7053 7054
7164 7163 7162 7161 - -
4-way, 3-position
Throttled, open neutral position, PC → A
- 7150 7151 7152 7153 7154
7174 7173 7172 7171 - -
4-way, 3-position
Throttled, open neutral position, PC → B
- 7150 7151 7152 7153 7154
- 7473 7472 7471 7470 -
4-way, 3-position
Throttled, A → T neutral position, PC → B
- - - 7452 7453 -
- 7563 7562 - - -
4-way, 3-position
Throttled, B→ T neutral position , PC → A
- - 7541 7542 7543 -
Standard PC spools, hydraulic actuation
PVB is with LS
A/B
shuttle valve Code number 157B.... PVB is without LS
A/B
shuttle valve
Press. compensated flow: l/min [US gal/min] ISO symbol Symbol Press. compensated flow: l/min [US gal/min]
E
100
[26.4]
D
65
[17.2]
C
40
[10.6]
B
25
[6.6]
A
10
[2.6]
AA
5
[1.3]
AA
5
[1.3]
A
10
[2.6]
B
25
[6.6]
C
40
[10.6]
D
65
[17.2]
E
100
[26.4]
- - - - - -
4-way, 3-position
Closed neutral position, PC → A and B
9015 9010 9011 9012 - -
Technical Information
PVG 32 Proportional Valve Group

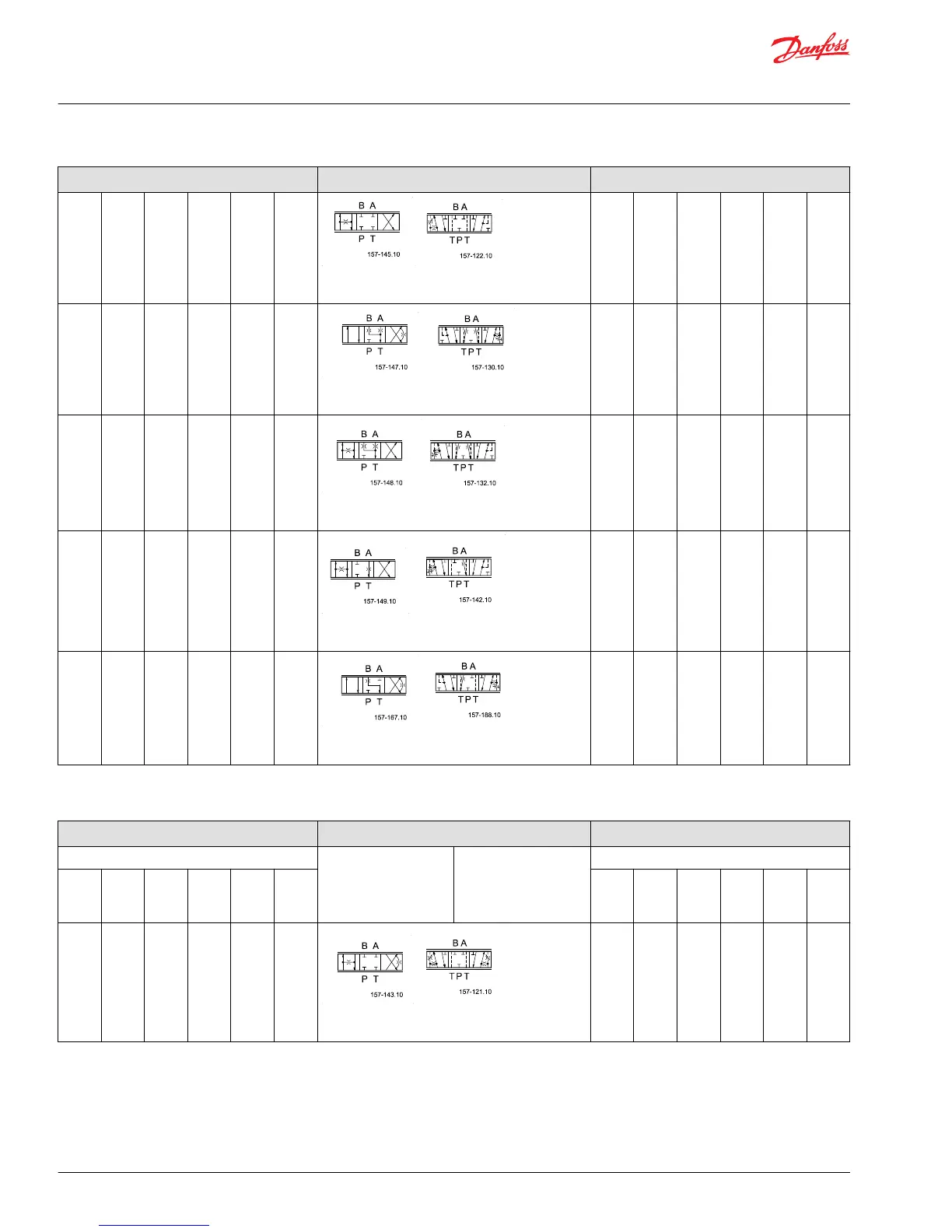

Module selection chart
64 |
©
Danfoss | August 2017 520L0344 | BC00000038en-US0802

Danfoss PVG 32 Specifications

General

Category	Control Unit
Maximum working pressure	350 bar
Size	32
Type	Proportional Valve
Maximum operating pressure	420 bar
Porting pattern	ISO 4401
Electrical connection	AMP
