Danfoss PVG 32

The pressure drop of any oil flowing back to tank (Q
P
- Q
A/B
) is read on the curve for neutral flow pressure
in PVP.

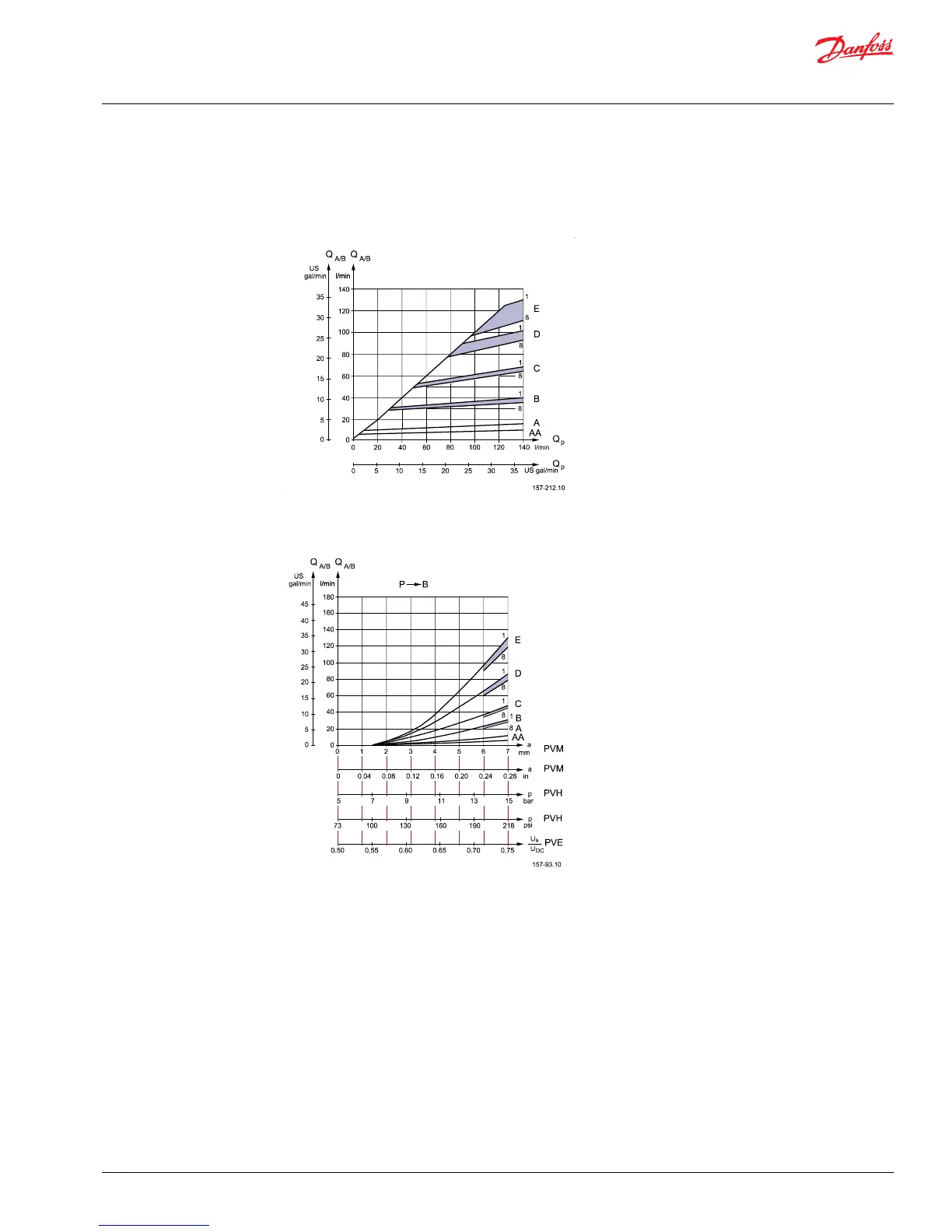

Characteristic for fully displaced flow control spools
PVB without pressure compensation, closed center PVP
Set pressure difference between pump pressure and LS signal = 10 bar [145 psi].
Technical Information
PVG 32 Proportional Valve Group
Technical characteristics
©
Danfoss | August 2017 520L0344 | BC00000038en-US0802 | 39
