8. Remove gages. Operate pump and check for leaks.

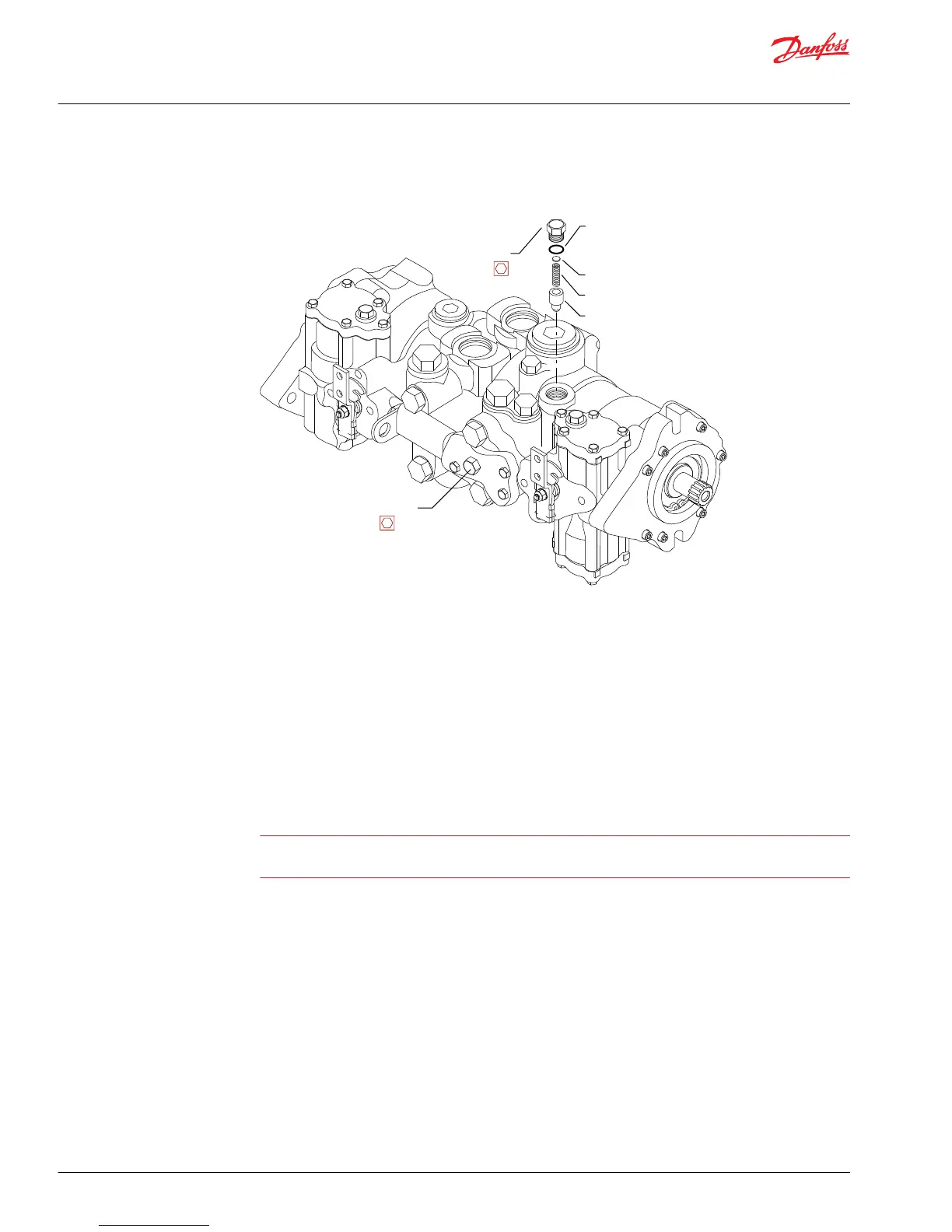

Charge pressure adjustment
P106 666E
103
105
104
101
102
1 in.
M3
11/16 in
Charge pressure
gage port
Engaging the bypass function
Test bypass function with pump installed on machine. The bypass function is engaged by unscrewing the
bypass valve. Do not open the bypass valve when machine is operating.
1. To engage the bypass function, use a 5/8 hex wrench to unscrew the bypass valve. Rotate the bypass
valve approximately three turns counterclockwise. Do not rotate more than 3 revolutions, as
additional rotation will permit external leakage.
2. To close the bypass valve, rotate the bypass valve clockwise until seated. Torque to 20 N•m [15 lbf•ft].
3. If machine is towable with bypass valve opened three turns, and if wheels are locked (not towable)
with bypass valve closed, bypass function is working correctly.
C
Caution
Avoid excessive speeds and extended load/vehicle movement. Do not move the load or vehicle more
than 20 % of maximum speed or for more than 3 minutes. Damage to drive motor(s) is possible.
Service Manual
Series 40 M46 Tandem Variable Pumps
Adjustments
20 |
©
Danfoss | September 2017 11029852 | AX00000030en-US0202
