5. One full turn of the adjusting screw will change the maximum displacement approximately as shown
in the table below.

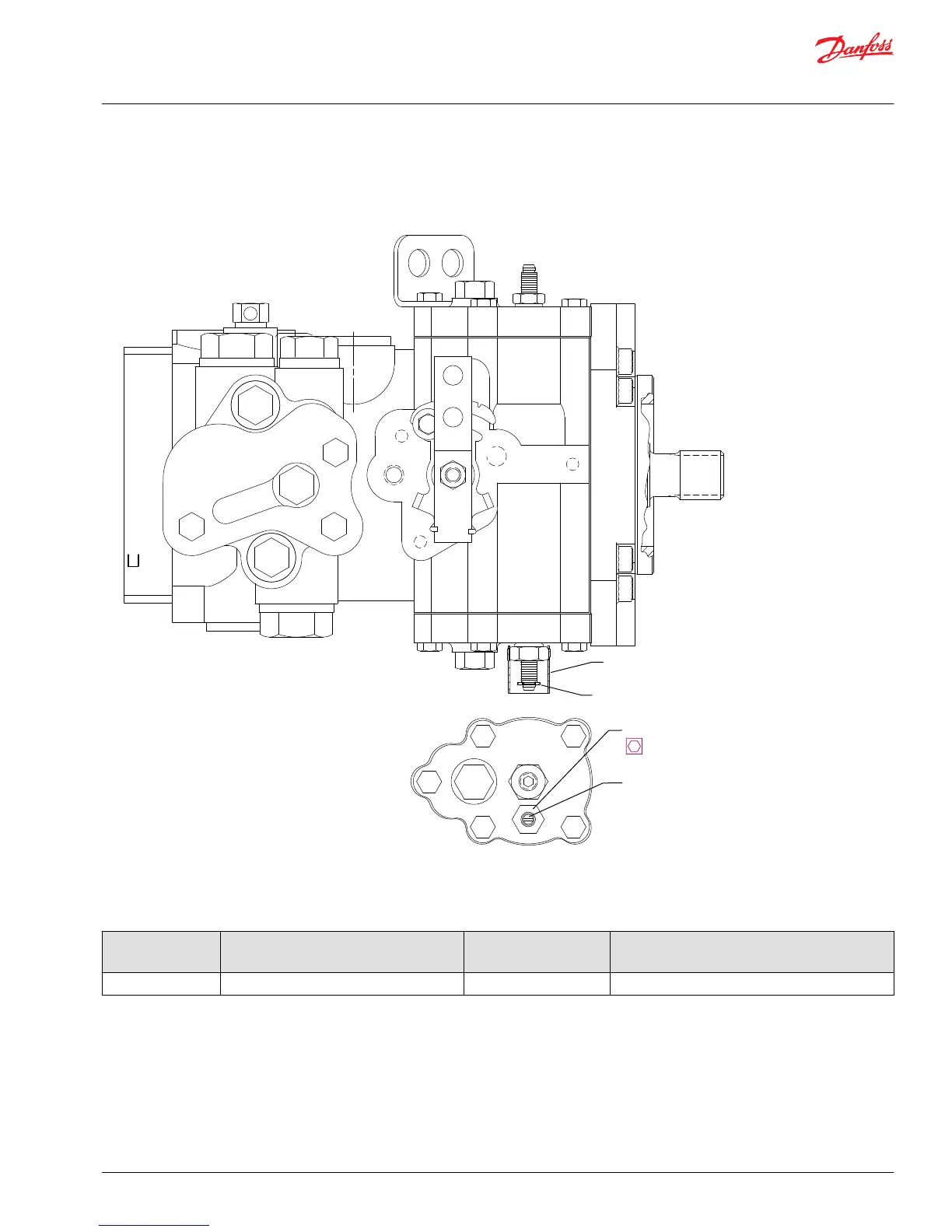

Displacement limiter adjustment
P106 672E
927
9/16 in
913
929
928
Displacement limiter adjustment data
Displacement limiter adjustment data
Displacement Locknut wrench size and torque Adjusting screw size Approximate displacement change per
revolution of adjusting screw
46 9/16 19 N•m [14 lbf•ft] Flat screw driver 4.1 cc / turn
Swashplate neutral adjustment
With the pump properly plumbed, primed and mounted on a vehicle or test stand, use the following
procedure to adjust the pump to mechanical neutral. If pump is on a vehicle, block the wheels to prevent
movement.
Service Manual
Series 40 M46 Tandem Variable Pumps
Adjustments
©
Danfoss | September 2017 11029852 | AX00000030en-US0202 | 23
