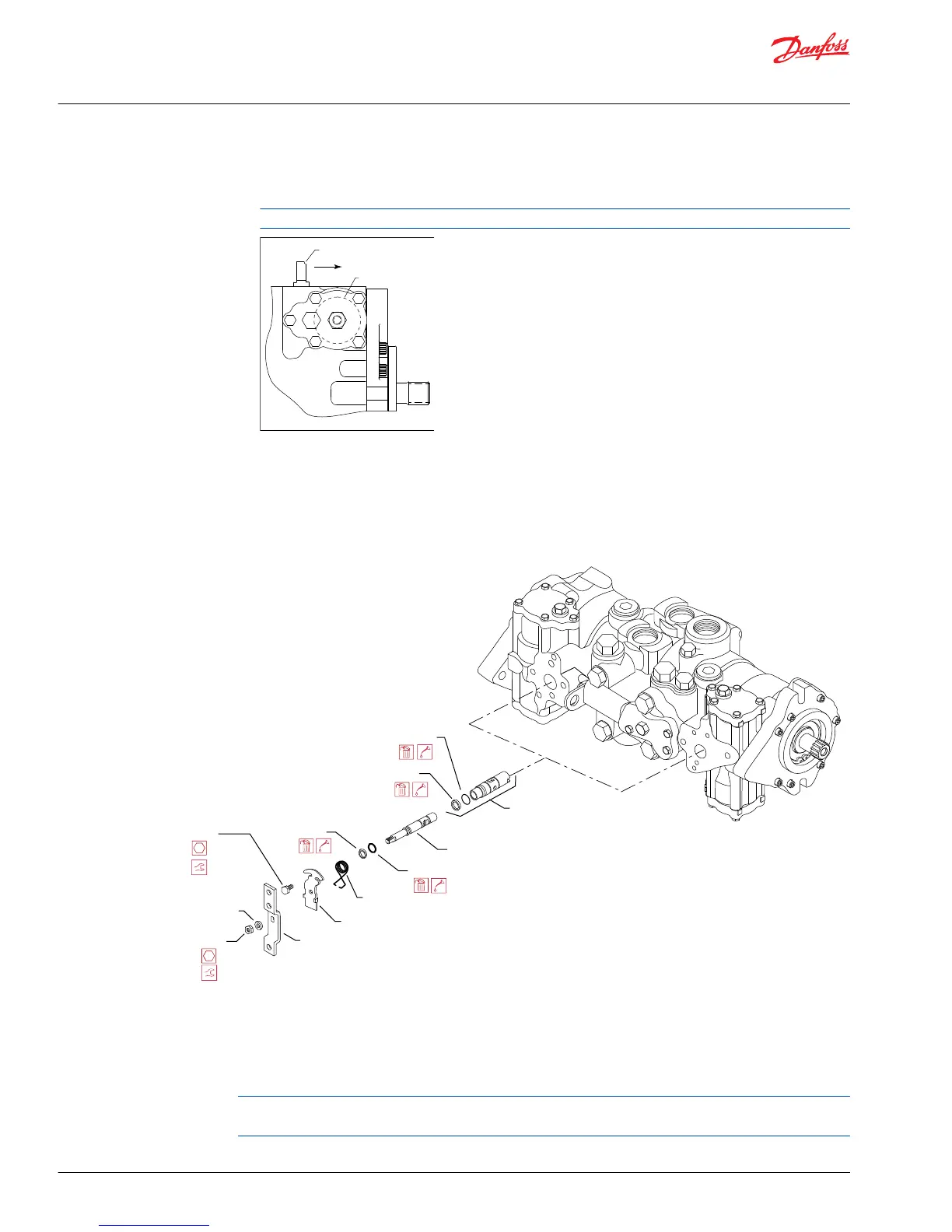

3. Install neutral return spring (1214), neutral return bracket (1216), handle (1215), and washer (1235)
onto spool (1207).
Install control spool (1207) with alignment slot facing servo piston.
P107 958E
Servo piston
Alignment slot
4. Using a 1/2 hex wrench, install lock nut (1213). Torque to 15 Nm [11 ft•lb].
5. Lubricate and install spool (1207) into sleeve (1402).
6. Using a 3/8 hex wrench, install screw (1210). Torque to 14 Nm [10 ft•lb]. See Manual Displacement
Control Bracket Neutral Adjustment on page 24, for adjustment procedure.
Manual displacement control
302
1402
1214
1216
1215
1213
1/2 in
15 Nm [11 ft•lb]
1208
1210
3/8 in
15 Nm
[11 ft•lb]
1235
1207
303
1209
Electronic Displacement Control/Hydraulic Displacement Control
Removal
If control is suspected of failure, replace control and test pump for proper operation. When installing
control, ensure that sleeve groove engages spring pin on swashplate
Service Manual
Series 40 M46 Tandem Variable Pumps
Minor repair
36 |
©
Danfoss | September 2017 11029852 | AX00000030en-US0202
