Danfoss VLT 2800 User Manual

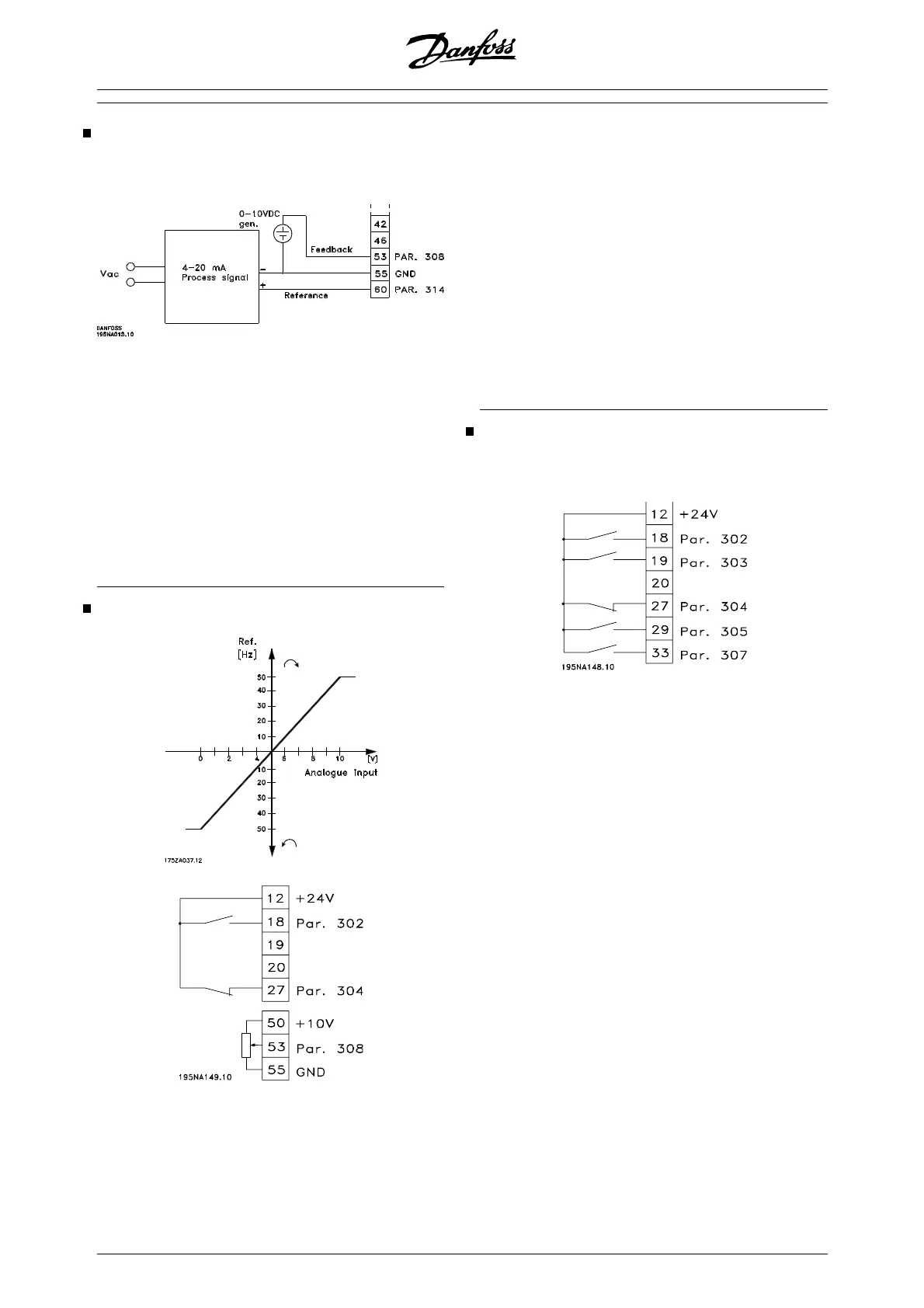

4-20 mA reference
4-20 mA reference on terminal 60 and speed feedback
signal on terminal 53.
Par. 100 Configuration = Speed closed loop
[1]
Par. 308 Analog input = Feedback [2]
Par. 309 Terminal 53, min. scaling = 0 Volt
Par. 310 Terminal 53, max. scaling = 10 Volt
Par. 314 Analog input = Reference [1]
Par. 309 Terminal 60, min. scaling = 4 mA
Par. 310 Teminal 60, max. scaling = 20 mA
50 Hz anti-clockwise to 50 Hz clockwise
Par. 100 Configuration = Speed regulation
open loop [0]
Par. 200 Output frequency range = Both di-
rections, 0-132 Hz [1]
Par. 203 Reference range = Min. ref. - Max.
ref. [0]
Par. 204 Min. reference = - 50 Hz
Par. 205 Max. reference = 50 Hz
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coasting stop inver-
ted [2]
Par. 308 Analogue input = Reference [1]
Par. 309 Terminal 53, min. scaling = 0 Volt
Par. 310 Terminal 53, max. scaling = 10 Volt
Preset references
Switch between 8 preset references via two digital in-
puts and Setup 1 and Setup 2.
Par. 004 Active Setup = Multisetup 1 [5]
Par. 204 Min. reference = 0 Hz
Par. 205 Max. reference = 50 Hz
Par. 302 Digital input = Start [7]
Par. 303 Digital input = Choice of Setup, lsb
[31]
Par. 304 Digital input = Coasting stop inver-
ted [2]
Par. 305 Digital input = Preset ref., lsb [22]
Par. 307 Digital input = Preset ref., msb [23]
Setup 1 contains the following preset references:
Par. 215 Preset reference 1 = 5.00%
Par. 216 Preset reference 2 = 10.00%
Par. 217 Preset reference 3 = 25.00%
Par. 218 Preset reference 4 = 35.00%
56 MG.27.E2.02 - VLT is a registered Danfoss trademark
