Danfoss VLT 3500 Series User Manual

24
VLT
®
Series 3500
Base
VLT
type 3625-3700 3750-3800
A 2.99 3.94
B 5.94 6.93
a 0.91 0.39
b 7.52 11.30
All dimensions are in inches
Base for mounting NEMA 12 cabinet with RFI module
VLT type 3625-3700 3750-3800
A 3.11 4.02
B 6.02 7.01
a 0.91 0.39
b 7.52 11.30
All dimensions are in inches

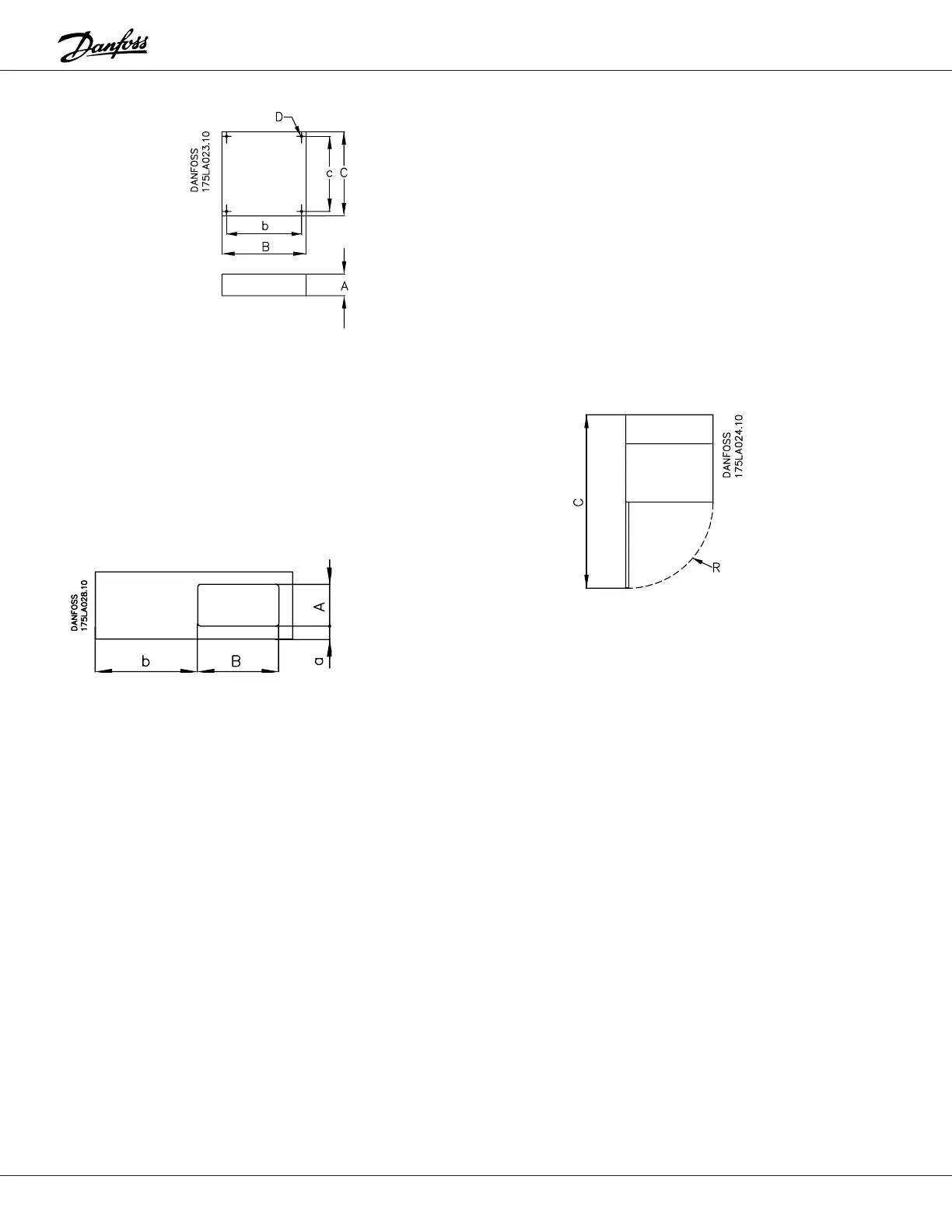

The drawing shows the base and its dimensions.
VLT Type 3625-3700 3750-3800
A 5.00 5.00
B 19.49 19.49
C 14.21 19.49
D 4 x 0.5 4 x 0.5
b 17.52 17.52
c 12.20 17.52
All dimensions are in inches
Base seen from the side:
Hinged Door on VLT Type 3575-3800
The door on the VLT Type 3575-3800 is hinged on the
left-hand side.
The table below gives the door radius and the necessary
distance from the mounting surface for the door to be
able to open freely:
VLT type 3575* 3600 3625 3650 3700 3750 3800
C 33.31 33.31 35.20 35.20 35.20 39.69 39.69
R 19.88 19.88 20.20 20.20 20.20 20.20 20.20
All dimensions are in inches
* Dimensions for VLT Type 3575 also apply to
VLT 3542-3562, 208/230 volt units.
