Danfoss VLT 5000-P User Manual

6-15
VLT is a registered Danfoss trademark
6.12 SCR/Diode Module D1 Units
1. Remove capacitor bank per instruction.
2. Remove input terminal mounting plate per
instructions.
3. Remove retaining screw (T25) from terminal 1 of
each SCR/Diode module.
4. Remove 8mm retaining nut from bus bar holding
bracket and remove bus bar.
CONTINUED ON NEXT PAGE
Retaining screw access
(Step 3)
Bus bar BB2
(Step 4)

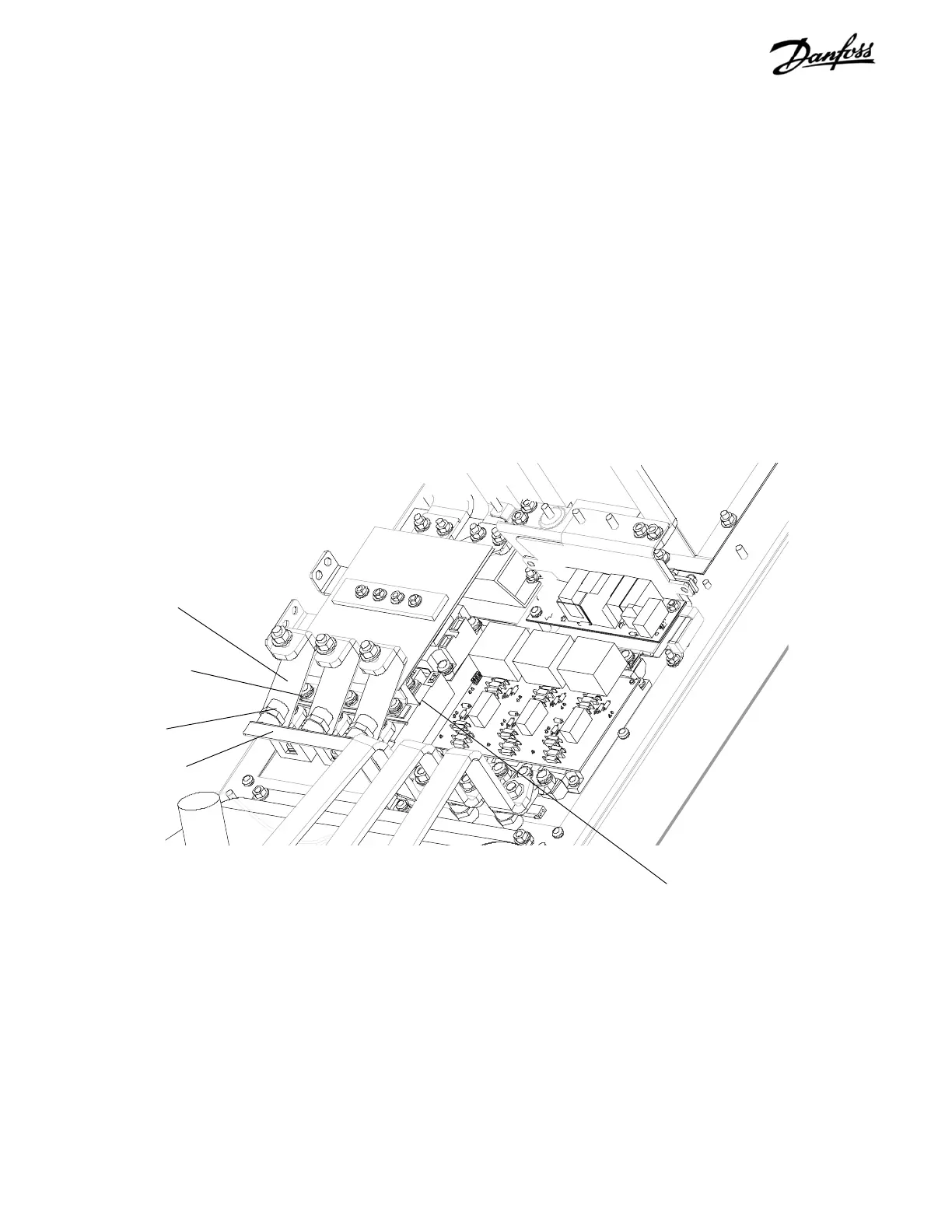

Figure 6-11. D1 SCR/Diode Module (1 of 3)
SCR/Diode module
Retaining nut
(Step 4)
Bus bar BB1
